Brand: FREER NAAMS
NAAMS Base Robot Riser ARR251
SKU: FN-ARR251
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Experience the enhanced performance of the NAAMS Base Robot Riser ARR251! Featuring precise measurements of A±3: 500mm and B: 398.4mm, along with a durable mounting system of 27.0 DIA and a weight of 1371kg, this riser is the perfect addition to your robotic system. Upgrade today and see the difference it can make!
Full Description

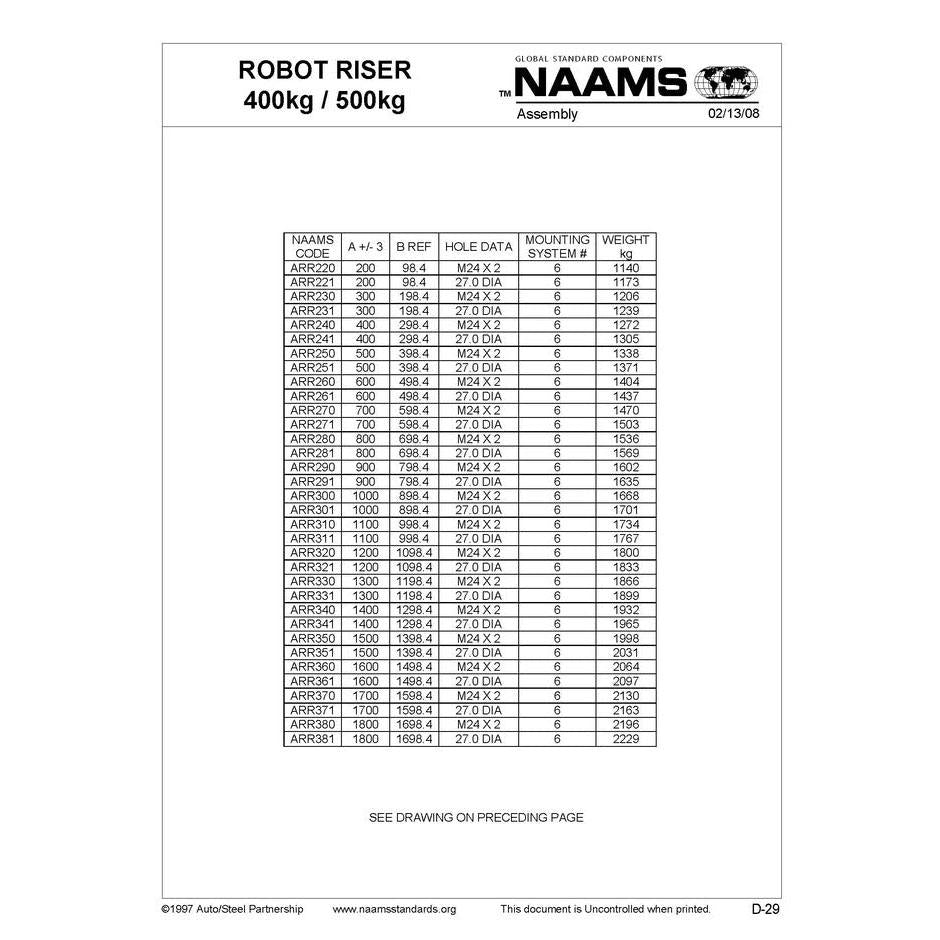

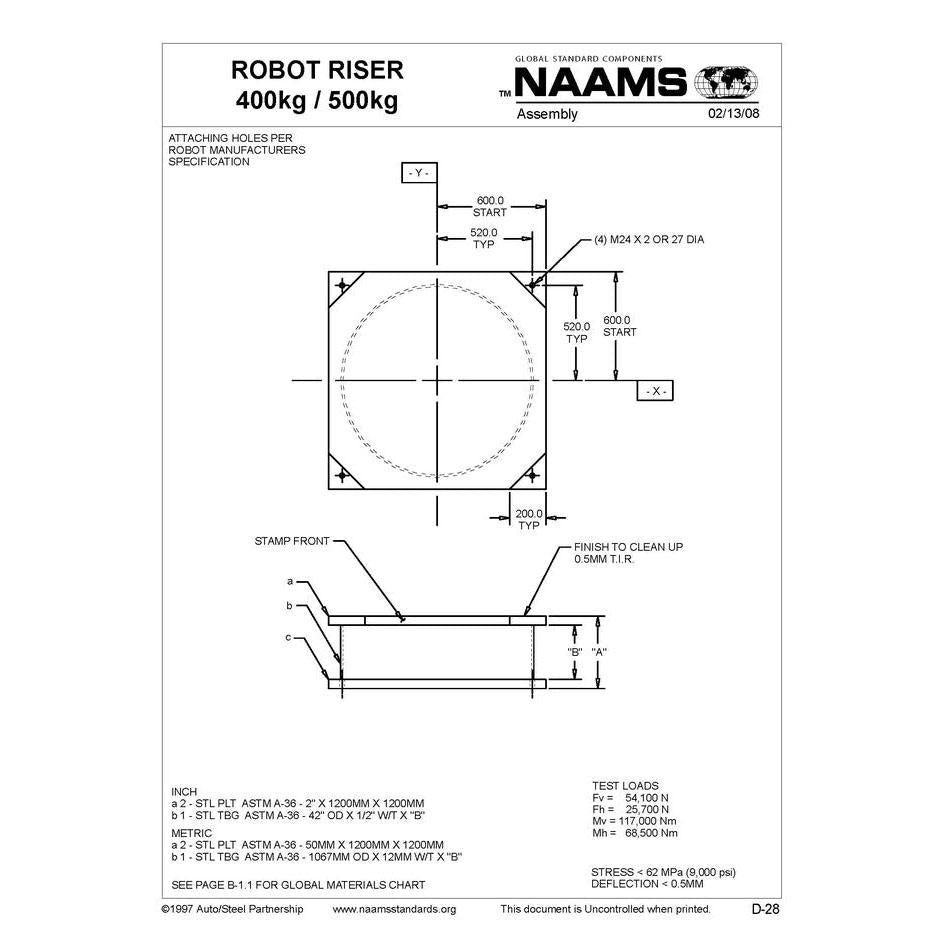

FREER NAAMS BASE ROBOT RISER ARR251
A±3: 500mm
B: 398.4mm
Hole Detail: 27.0 DIA
Mounting System #: 6
Wt. kg: 1371
For mounting and leveling instructions, click here: NAAMS Robot Riser Mounting and Leveling Instructions
For optional leveling plates, follow the corresponding NAAMS code:
ABL343
ABL643
ABL843
