Brand: FREER NAAMS

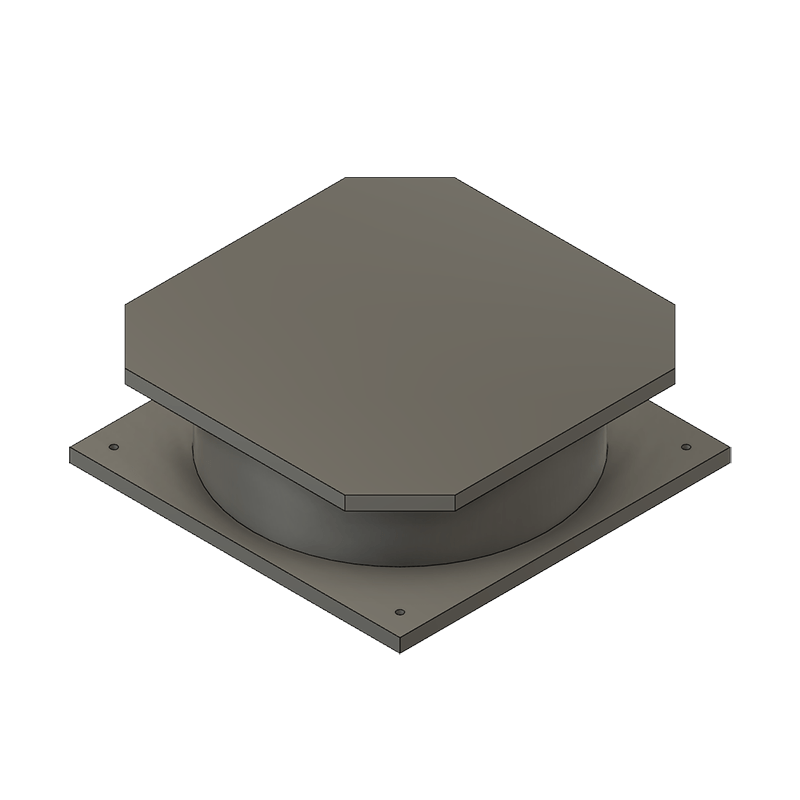

NAAMS Base Robot Riser ARR241
SKU: FN-ARR241
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Unlock new possibilities with the NAAMS Base Robot Riser ARR241! With a height of just 400mm and an impressive weight capacity of 1305kg, this riser is perfect for all your automation needs. Its precise 27.0 DIA hole detail and sturdy mounting system make it a reliable and efficient choice. Trust in the quality and value of this must-have component for your robotic setup.
Full Description

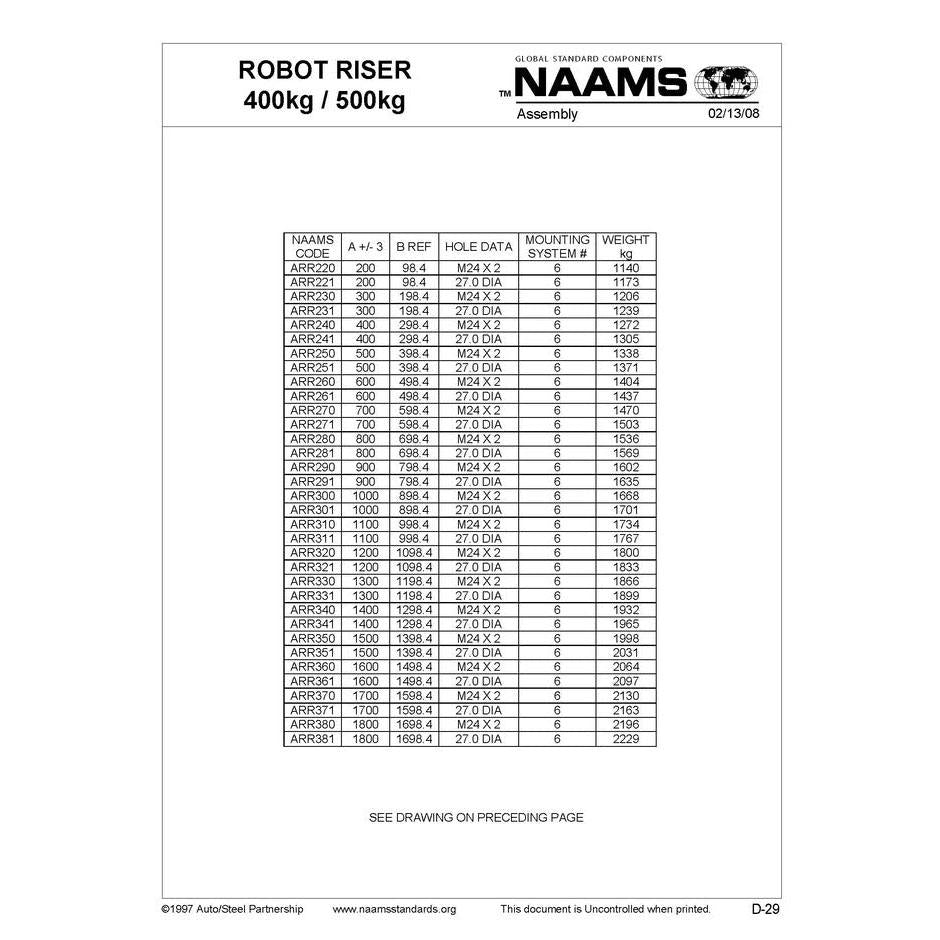

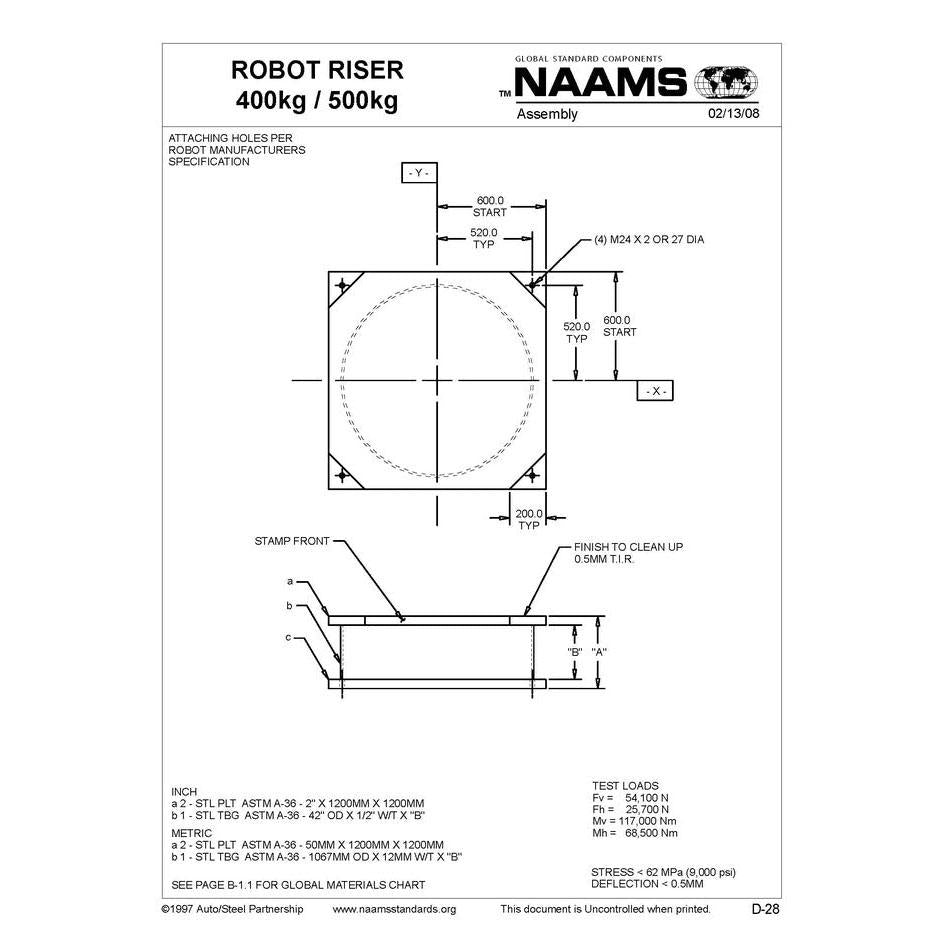

FREER NAAMS BASE ROBOT RISER ARR241
A±3: 400mm
B: 298.4mm
Hole Detail: 27.0 DIA
Mounting System #: 6
Wt. kg: 1305
For mounting and leveling instructions, click here: NAAMS Robot Riser Mounting and Leveling Instructions
For optional leveling plates, follow the corresponding NAAMS code:
ABL343
ABL643
ABL843
