Brand: FREER NAAMS
NAAMS Base Robot Riser ARR231
SKU: FN-ARR231
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Experience the power of the NAAMS Base Robot Riser ARR231, with its precise measurements of A±3: 300mm and B: 198.4mm. The hole detail of 27.0 DIA and mounting system number 6 add to the exceptional design. And let's not forget its impressive weight of 1239 kg. This is a must-have for any robotics enthusiast!
Full Description

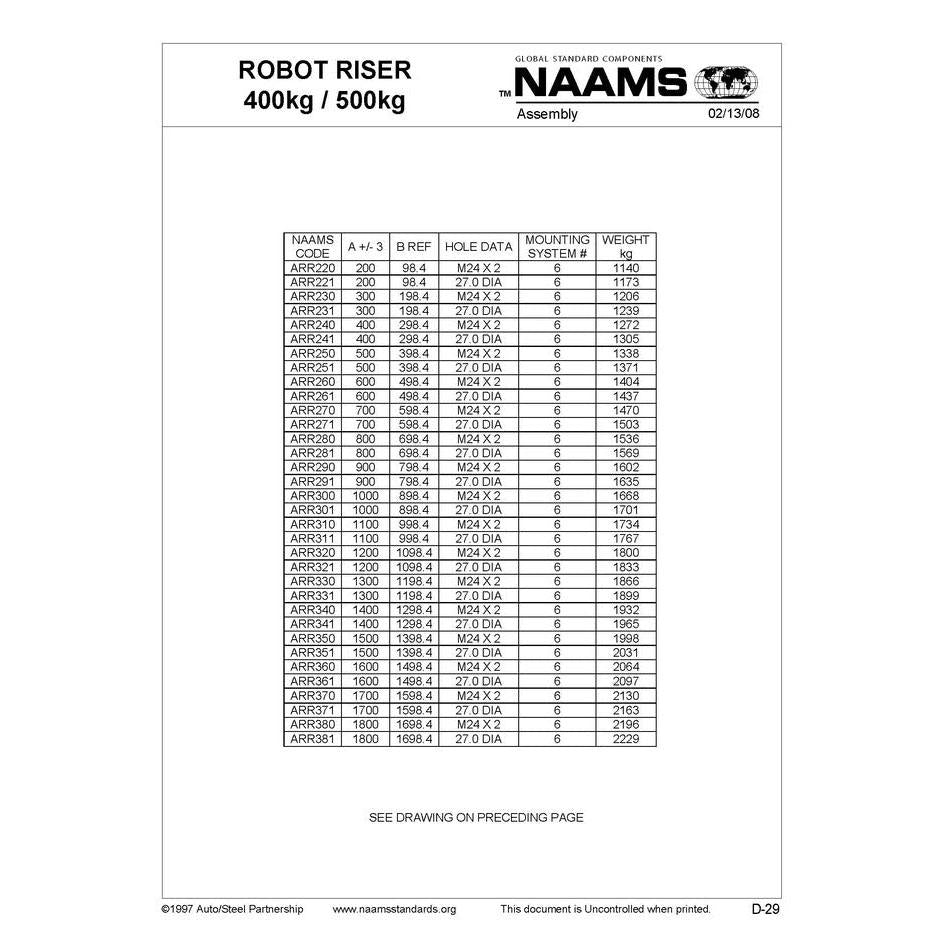

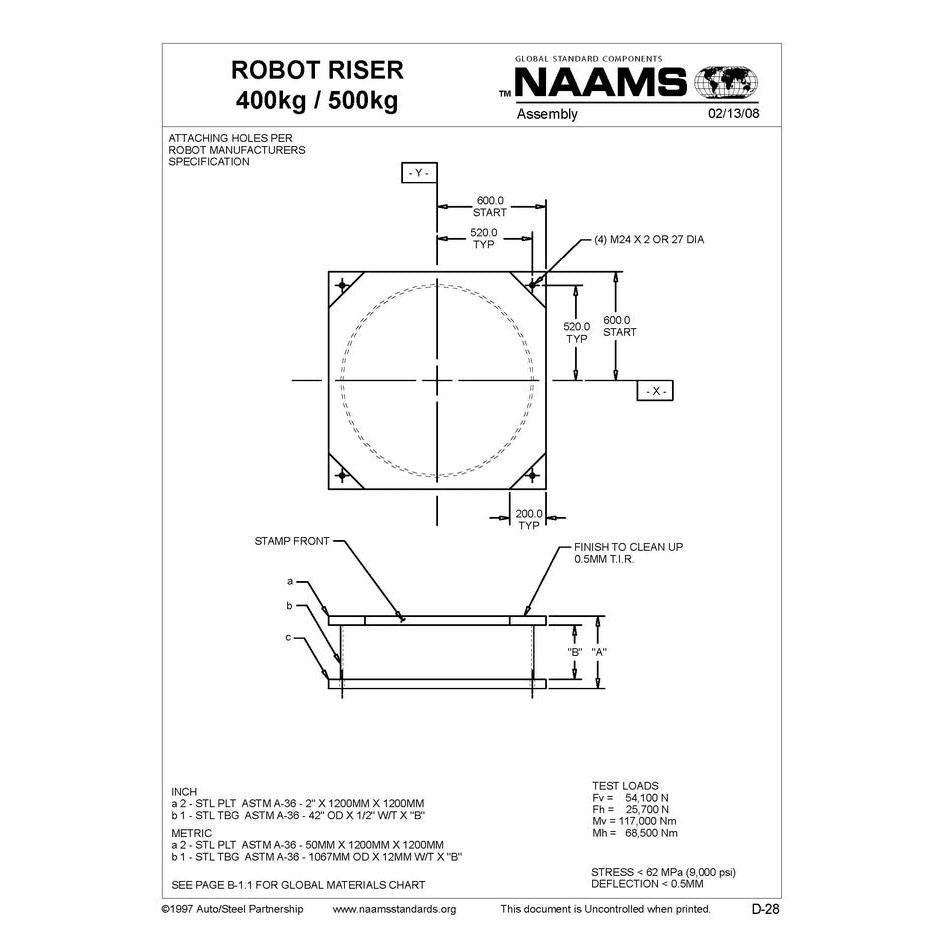

FREER NAAMS BASE ROBOT RISER ARR231
A±3: 300mm
B: 198.4mm
Hole Detail: 27.0 DIA
Mounting System #: 6
Wt. kg: 1239
For mounting and leveling instructions, click here: NAAMS Robot Riser Mounting and Leveling Instructions
For optional leveling plates, follow the corresponding NAAMS code:
ABL343
ABL643
ABL843
