Brand: FREER NAAMS
NAAMS Base Robot Riser ARR110
SKU: FN-ARR110
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Introducing the NAAMS Base Robot Riser ARR110 - the ultimate addition to your robot system! Boasting a solid A±3 of 1100mm and B of 1014mm, this riser is designed for precision and stability. With M24 X 2 hole detail and a mounting system of 6, your robot will be securely mounted and ready for action. And at only 896kg, it won't weigh your robot down. Upgrade to the NAAMS Base Robot Riser ARR110 and experience the difference for yourself!
Full Description

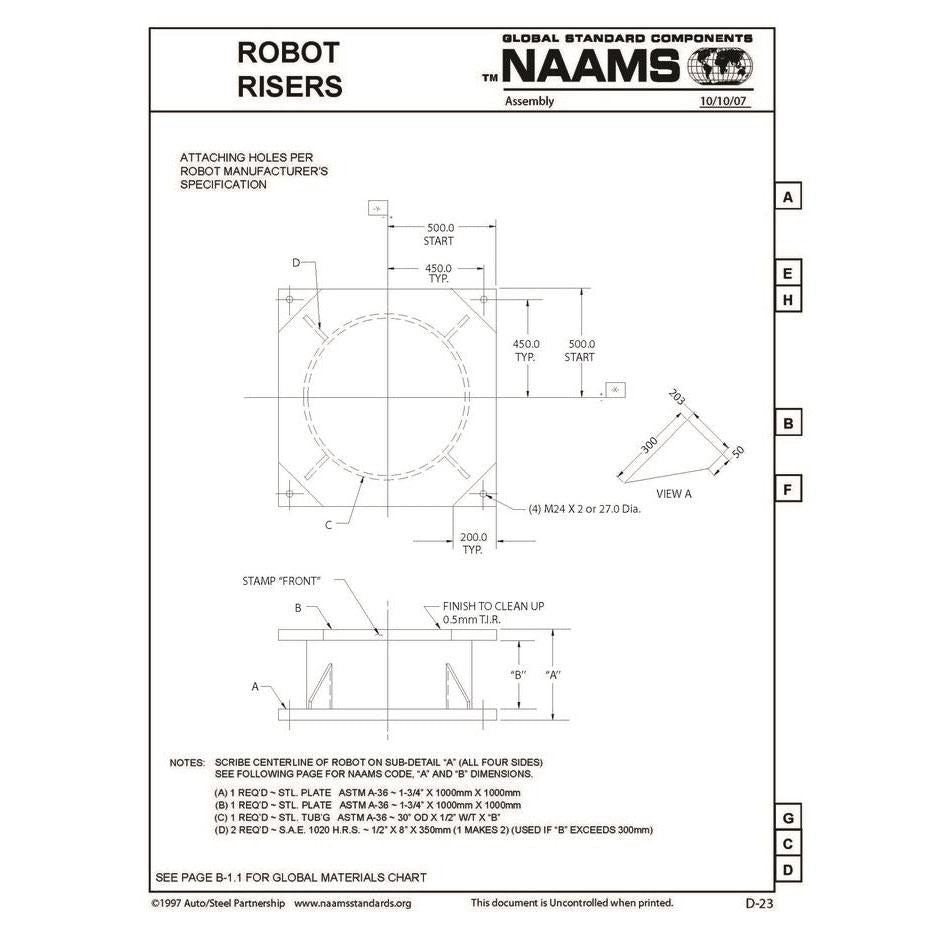

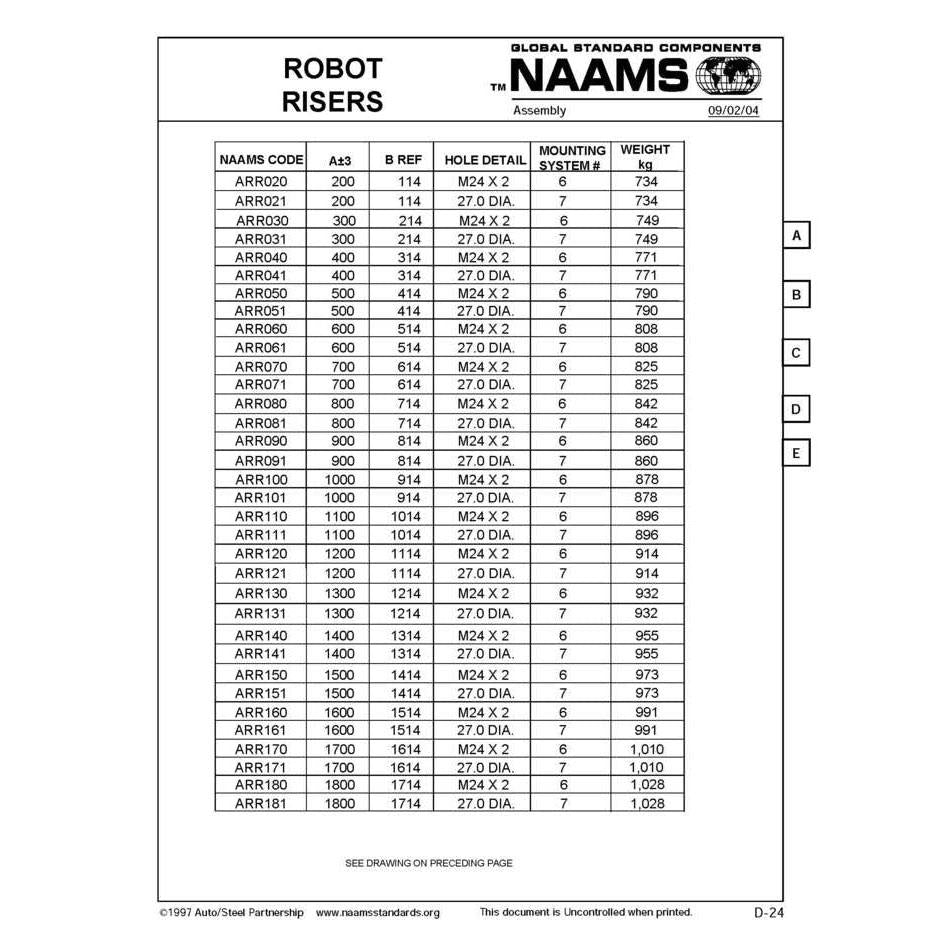

FREER NAAMS BASE ROBOT RISER ARR110
A±3: 1100mm
B: 1014mm
Hole Detail: M24 X 2
Mounting System #: 6
Wt. kg: 896
For mounting and leveling instructions, click here: NAAMS Robot Riser Mounting and Leveling Instructions
For optional leveling plates, follow the corresponding NAAMS code:
ABL343
ABL643
ABL843
ABL340
ABL341
ABL440
ABL441
