Brand: FREER NAAMS
NAAMS Base Robot Riser ARR100
SKU: FN-ARR100
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Experience the ultimate in precision and efficiency with the NAAMS Base Robot Riser ARR100! Featuring superior design and engineering, this riser boasts an impressive A±3:1000mm and B:914mm size, along with a sturdy M24 X 2 hole detail and advanced mounting system #6. Weighing in at just 878 kg, this powerhouse is ready to revolutionize your robotic assembly line!
Full Description

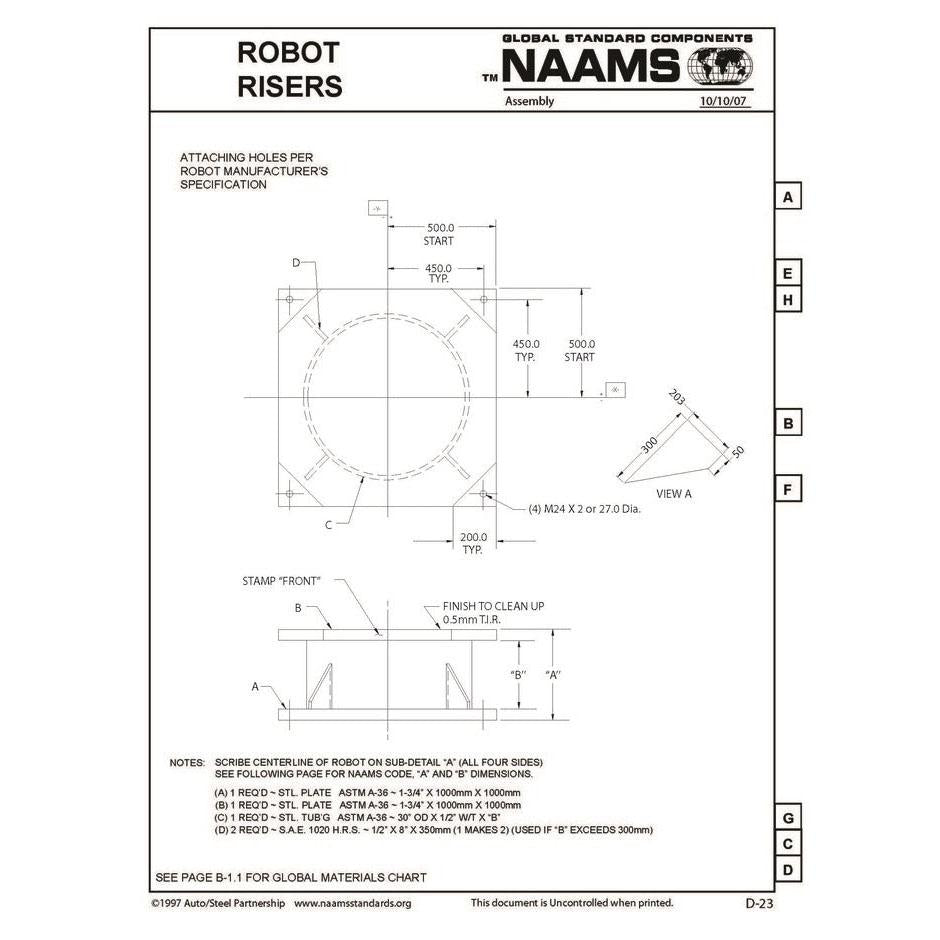

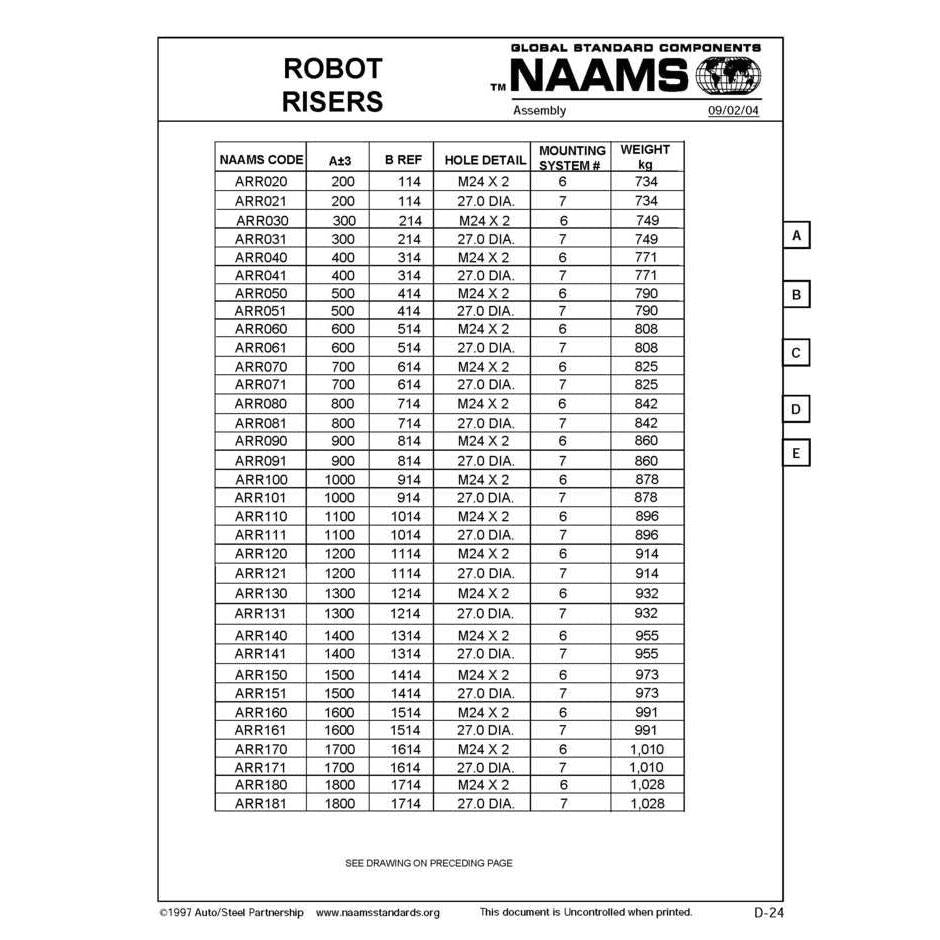

FREER NAAMS BASE ROBOT RISER ARR100
A±3: 1000mm
B: 914mm
Hole Detail: M24 X 2
Mounting System #: 6
Wt. kg: 878
For mounting and leveling instructions, click here: NAAMS Robot Riser Mounting and Leveling Instructions
For optional leveling plates, follow the corresponding NAAMS code:
ABL343
ABL643
ABL843
ABL340
ABL341
ABL440
ABL441
