Brand: FREER NAAMS
NAAMS Locating Pin APS191RT
SKU: FN-APS191RT
MPN:

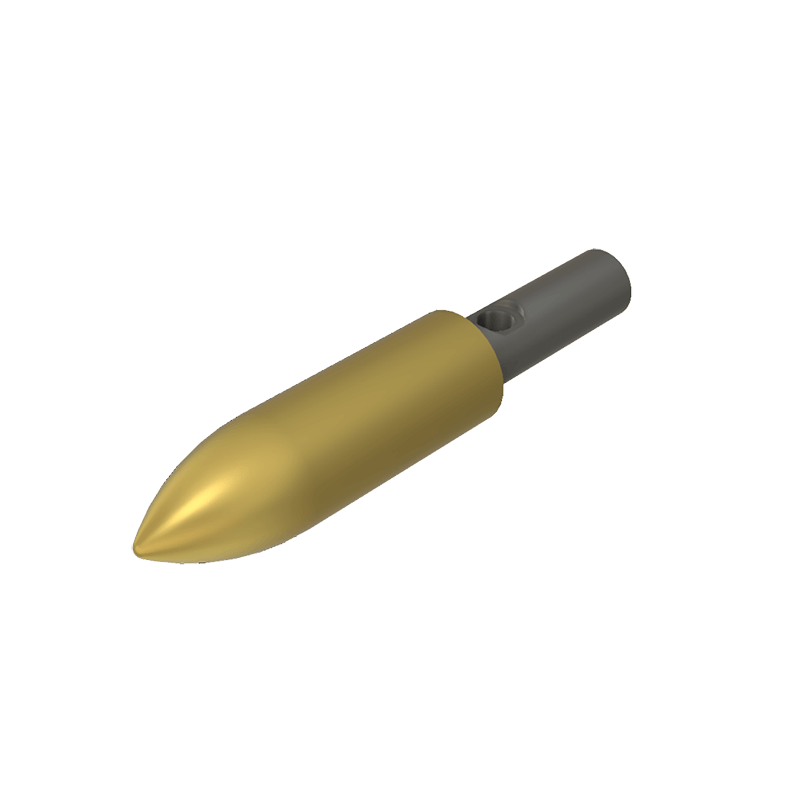

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
*All TiN Coated NAAMS Locating Pins Have a 5 Piece Minimum Buy*
Short Description
Precision-engineered NAAMS locating pin designed for demanding industrial applications. This APS191RT model features a compact 86.8mm length, crafted from premium A2 steel and hardened to 58-62HRC for exceptional durability and wear resistance. At just 0.13kg, it delivers reliable performance in tight tolerances and repetitive positioning tasks. Choose from standard specifications or upgrade to M2 coated or titanium nitride variants for enhanced surface protection and extended tool life in high-stress environments.
T = Titanium nitride added.
*M2 coated pins available, per quote only*
Full Description

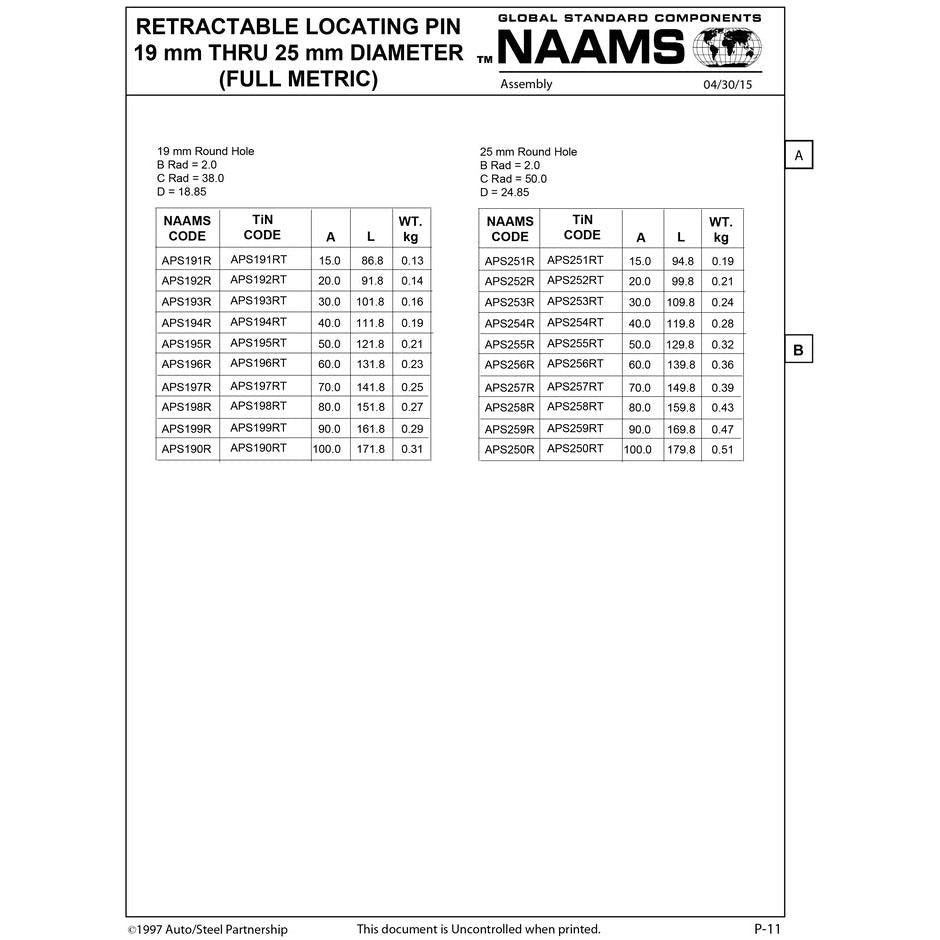

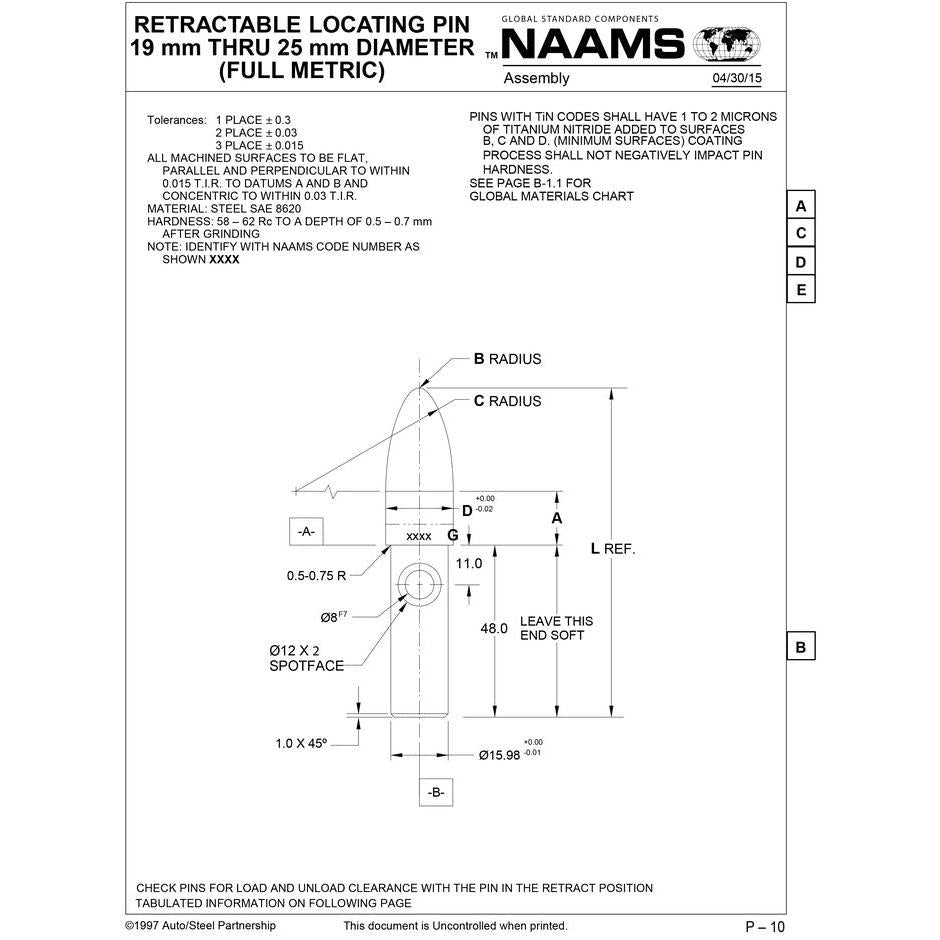

FREER NAAMS LOCATING PIN APS191RT
A: 15mm
L: 86.8mm
WT. kg: 0.13
Material: A2 Steel and hardened to 58-62hRC *M2 coated pins available, per quote only*.
Titanium nitride added (minimum surfaces).
