Brand: FREER NAAMS

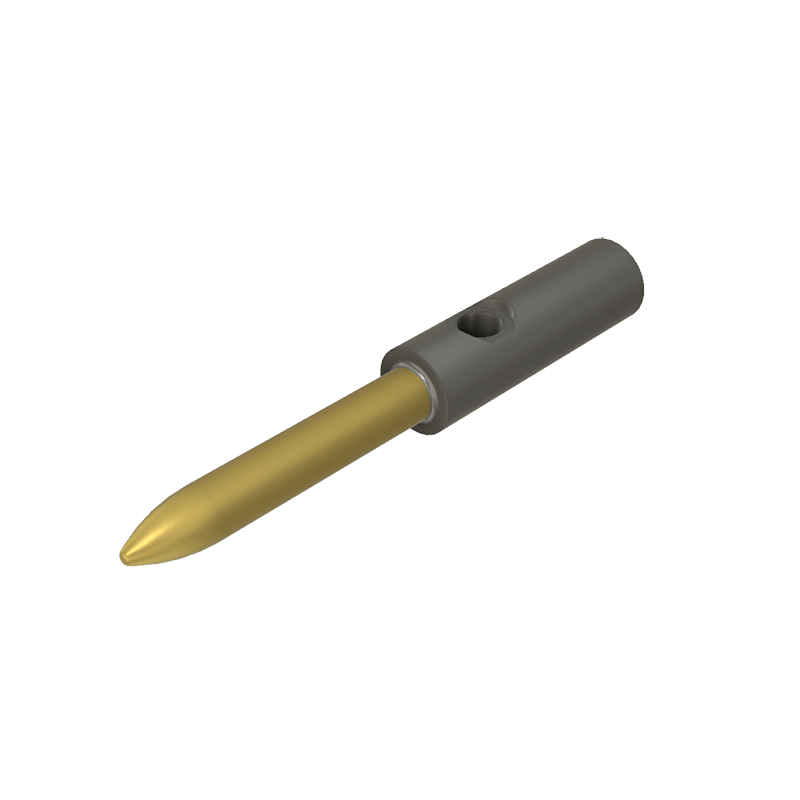

NAAMS Locating Pin APS139RT
SKU: FN-APS139RT
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
*All TiN Coated NAAMS Locating Pins Have a 5 Piece Minimum Buy*
Short Description
NAAMS locating pins deliver precision alignment for your die and mold applications. This APS139RT model features a robust 157.4mm length, engineered from hardened A2 steel (58-62 HRC) for exceptional durability under demanding conditions. At just 0.17 kg, it offers lightweight performance without compromising strength. Titanium nitride coating on critical surfaces enhances wear resistance and extends tool life. Custom M2 coated options available upon request to match your specific production requirements.
T = Titanium nitride added.
*M2 coated pins available, per quote only*
Full Description

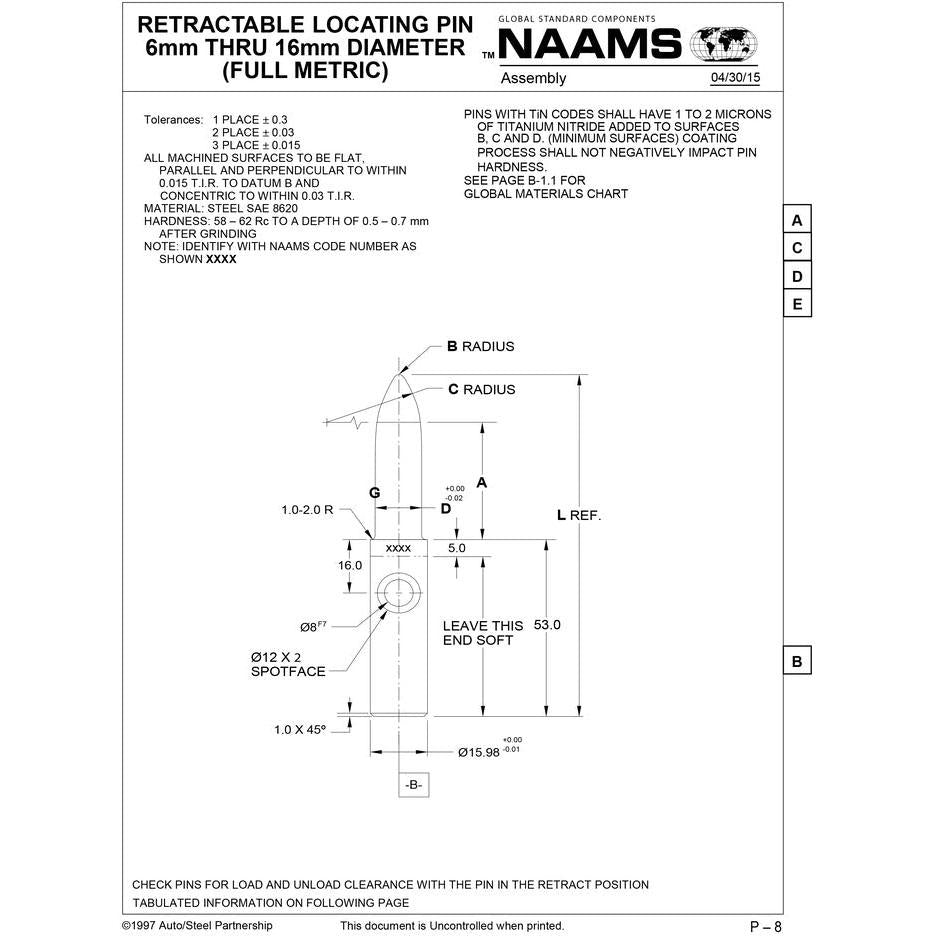

FREER NAAMS LOCATING PIN APS139RT
A: 85mm
L: 157.4mm
WT. kg: 0.17
Material: A2 Steel and hardened to 58-62hRC *M2 coated pins available, per quote only*.
Titanium nitride added (minimum surfaces).
