Brand: FREER NAAMS
NAAMS Flat Bracket AFB318
SKU: FN-AFB318
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Experience the superior quality and durability of the NAAMS Flat Bracket AFB318! This must-have product features a 200mm Bolt Circle on Wrist and is made from top-notch materials such as ASTM A-36 Steel Plate and ASTM A-513 Type 5 Steel Tubing. Elevate your construction projects with this high-performing and reliable bracket.
Full Description

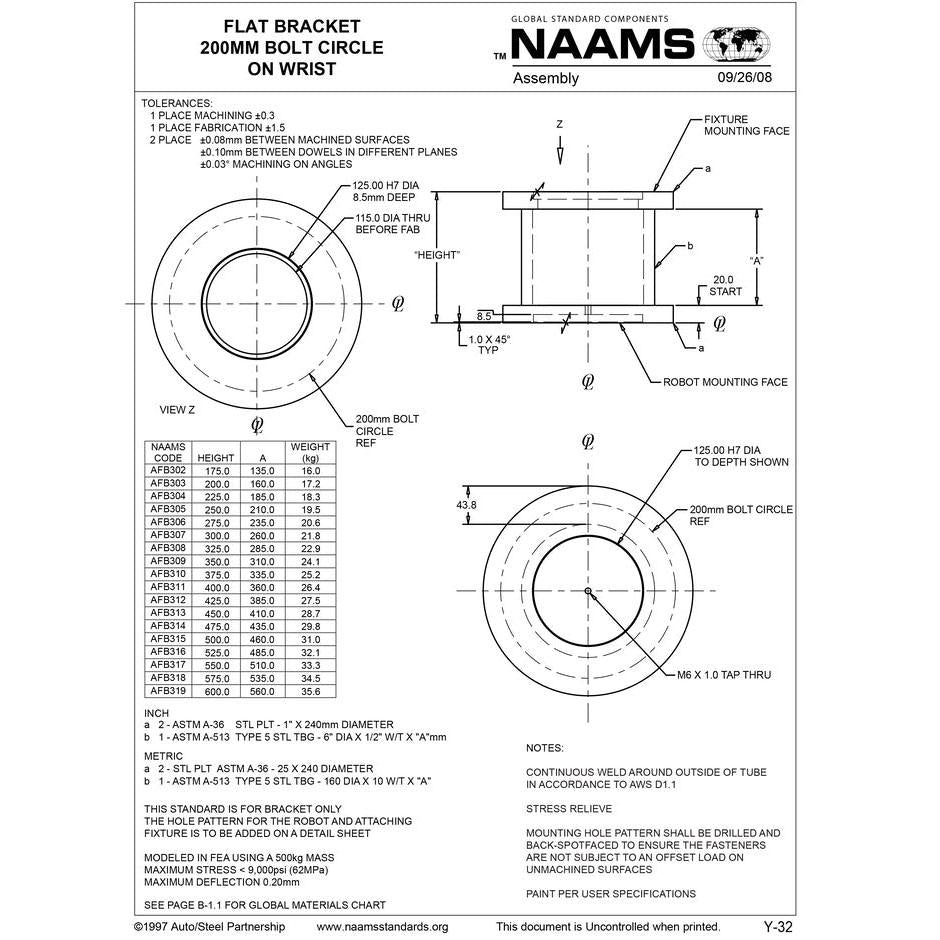

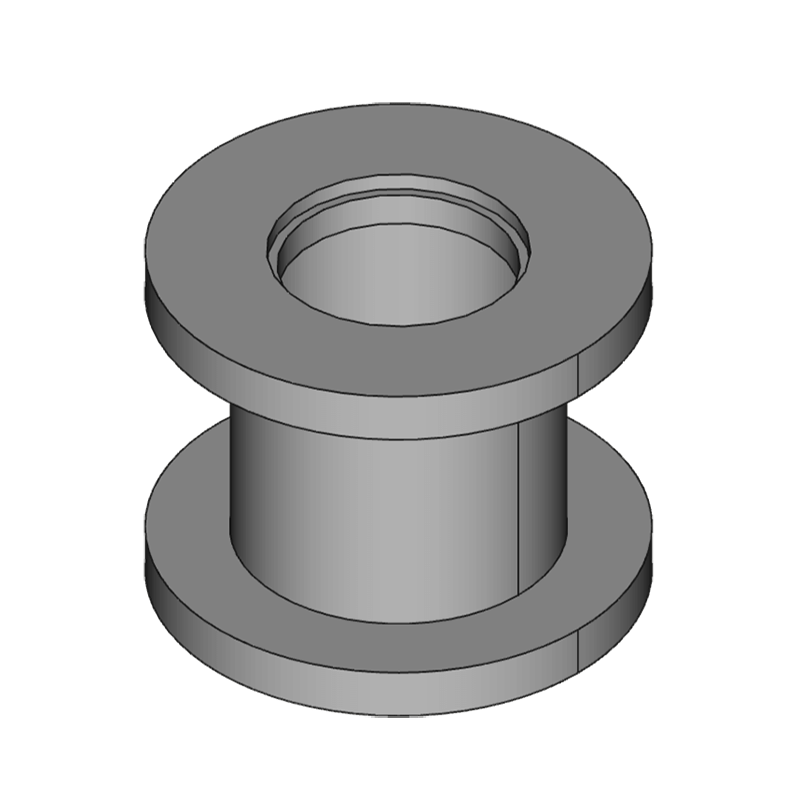

FREER NAAMS FLAT BRACKET AFB318
200mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 25 x 240mm Dia, b - 160 Dia x 10mm W/T x "A"
Height: 575mm
A: 535mm
Wt. kg: 34.5
