Brand: FREER NAAMS

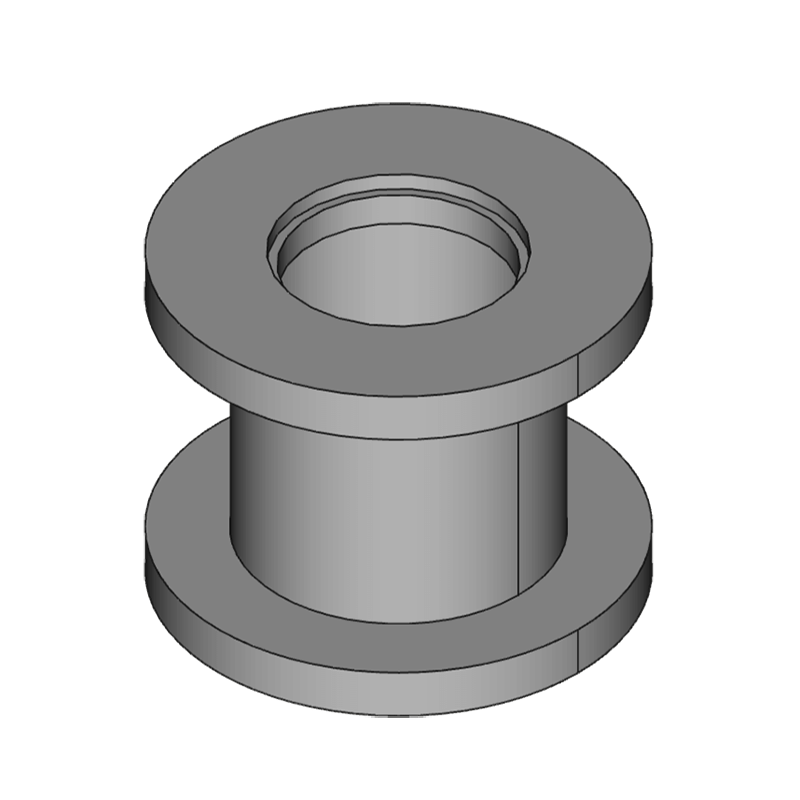

NAAMS Flat Bracket AFB315
SKU: FN-AFB315
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Enhance your machine's performance with our NAAMS Flat Bracket AFB315 featuring a 200mm Bolt Circle on Wrist. Material made of high-quality ASTM A-36 Steel Plate and ASTM A-513 Type 5 Steel Tubing. Get yours now and experience improved durability and efficiency!
Full Description

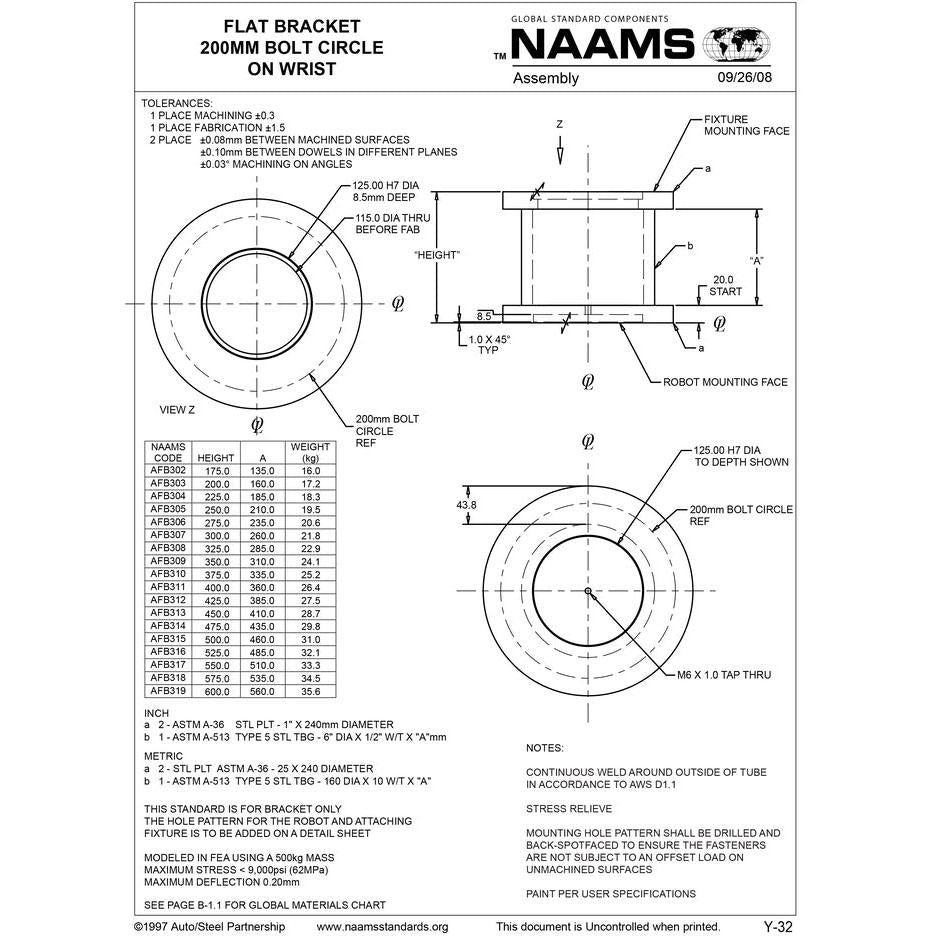

FREER NAAMS FLAT BRACKET AFB315
200mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 25 x 240mm Dia, b - 160 Dia x 10mm W/T x "A"
Height: 500mm
A: 460mm
Wt. kg: 31
