Brand: FREER NAAMS
NAAMS Flat Bracket AFB312
SKU: FN-AFB312
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Get ready to experience the exceptional value of the NAAMS Flat Bracket AFB312. Made with high-quality materials like ASTM A-36 steel plate and ASTM A-513 type 5 steel tubing, this bracket boasts a 200mm bolt circle on the wrist, making it a must-have for any project. Upgrade your assembly with the AFB312 and feel the difference today!
Full Description

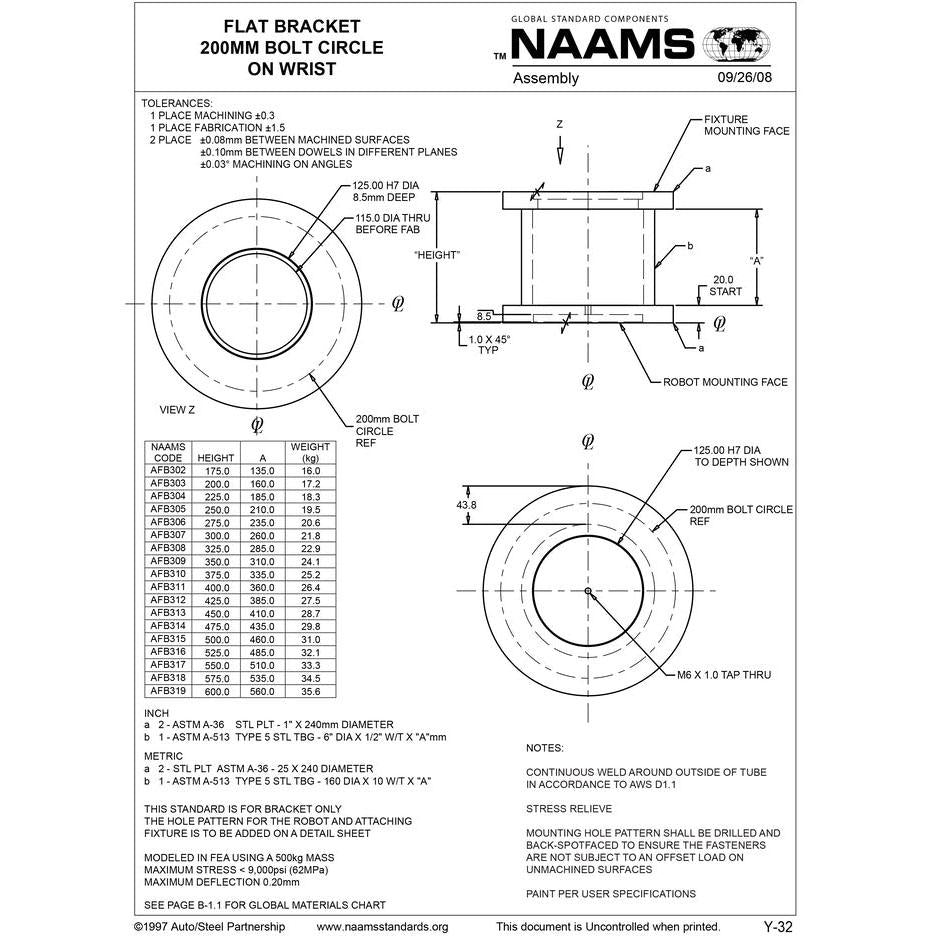

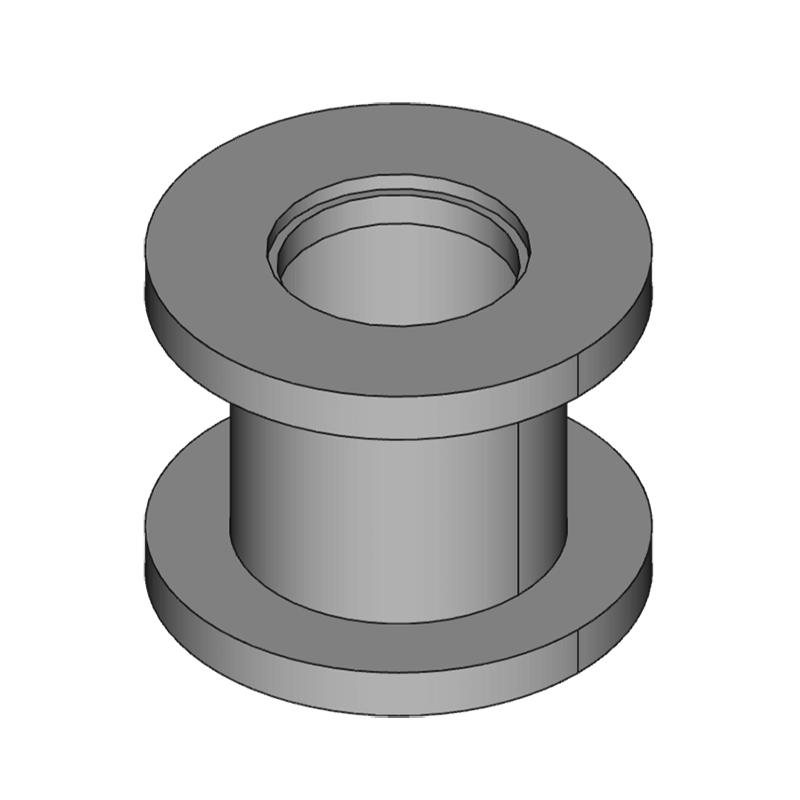

FREER NAAMS FLAT BRACKET AFB312
200mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 25 x 240mm Dia, b - 160 Dia x 10mm W/T x "A"
Height: 425mm
A: 385mm
Wt. kg: 27.5
