Brand: FREER NAAMS
NAAMS Flat Bracket AFB311
SKU: FN-AFB311
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Experience the versatility of NAAMS Flat Bracket AFB311 with a 200mm Bolt Circle on Wrist design! Crafted from durable materials including ASTM A-36 Steel Plate and ASTM A-513 Type 5 Steel Tubing, this bracket offers exceptional strength and reliability for all your needs. Don't miss out on this essential tool for any project!
Full Description

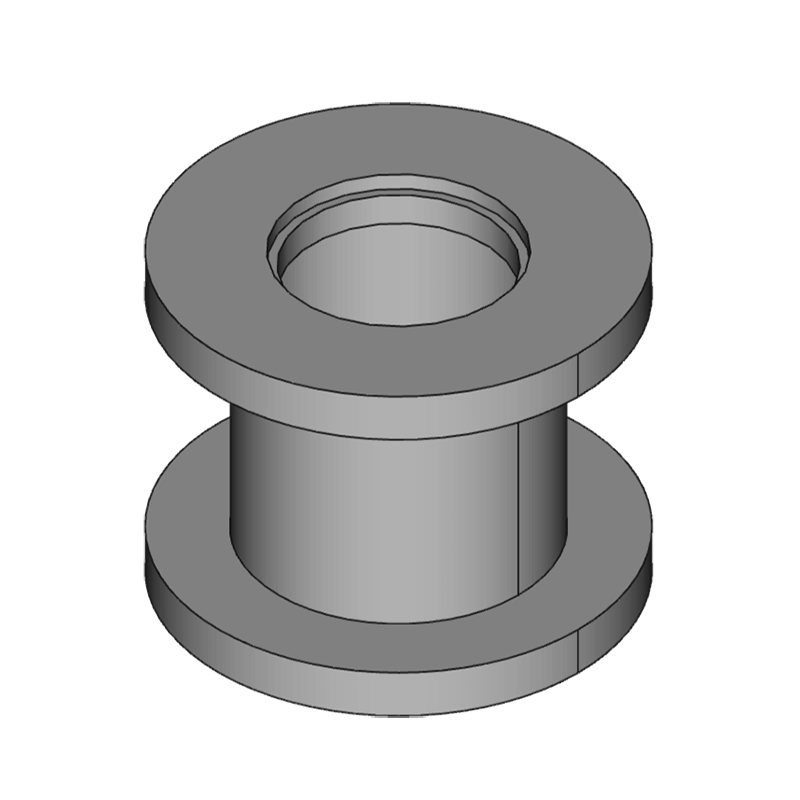

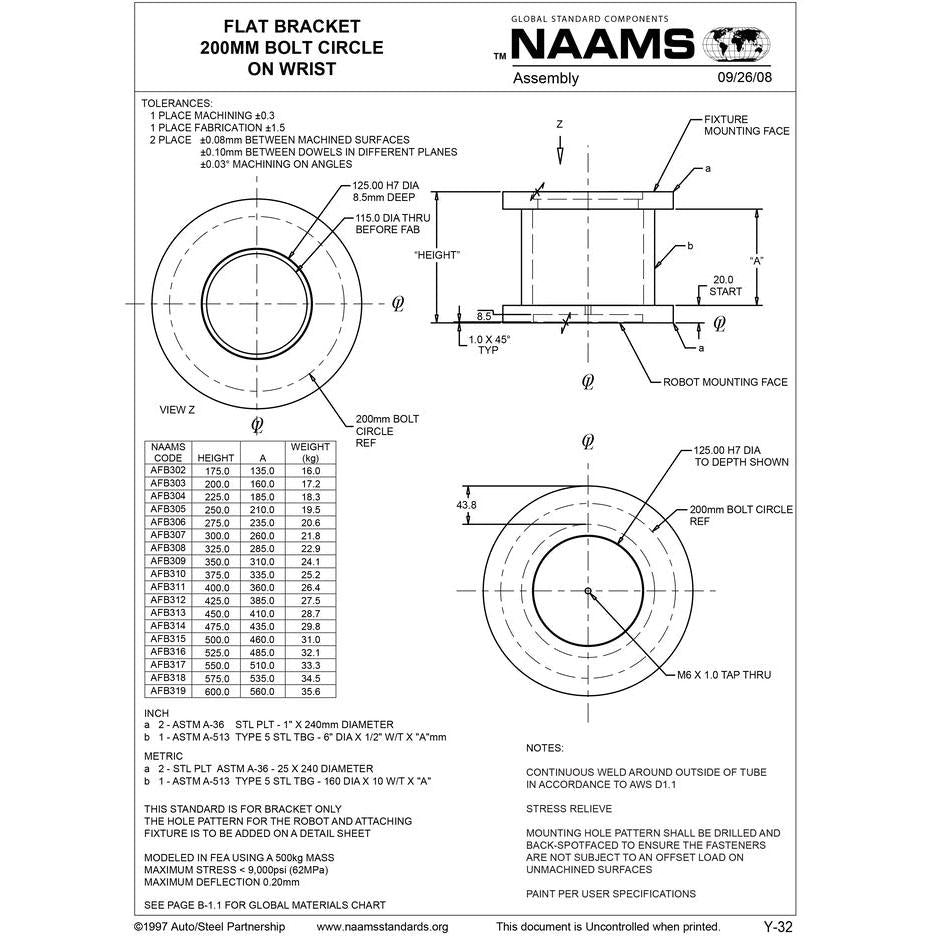

FREER NAAMS FLAT BRACKET AFB311
200mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 25 x 240mm Dia, b - 160 Dia x 10mm W/T x "A"
Height: 400mm
A: 360mm
Wt. kg: 26.4
