Brand: FREER NAAMS
NAAMS Flat Bracket AFB307
SKU: FN-AFB307
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Introducing the revolutionary NAAMS Flat Bracket AFB307! This versatile product boasts a 200mm bolt circle on wrist design, crafted from top-of-the-line ASTM A-36 steel plate and ASTM A-513 type 5 steel tubing. Experience the strength and durability that only the best materials can provide. Trust in the NAAMS brand and elevate your projects to new heights!
Full Description

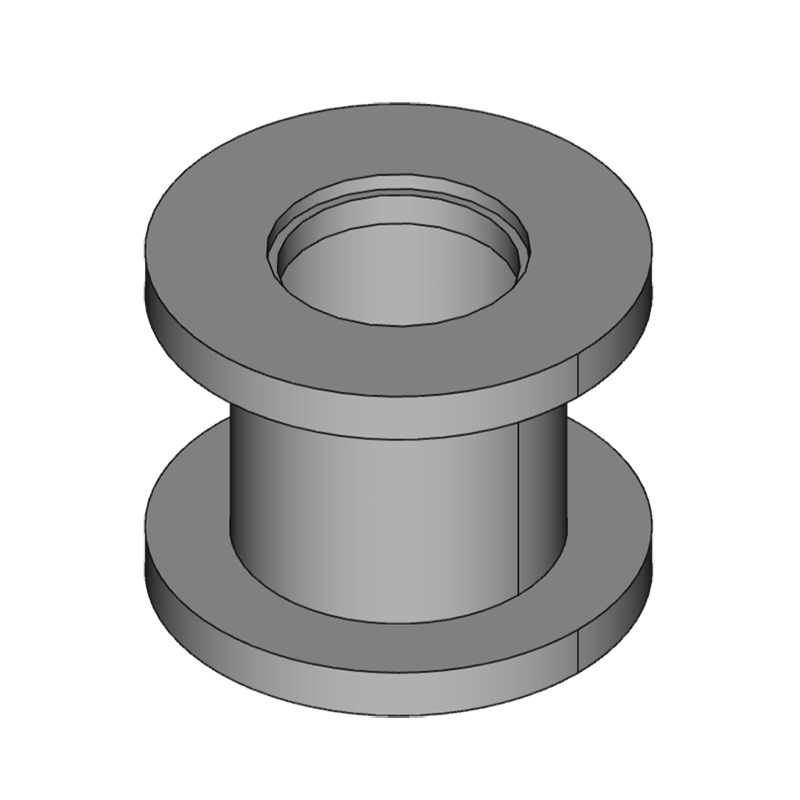

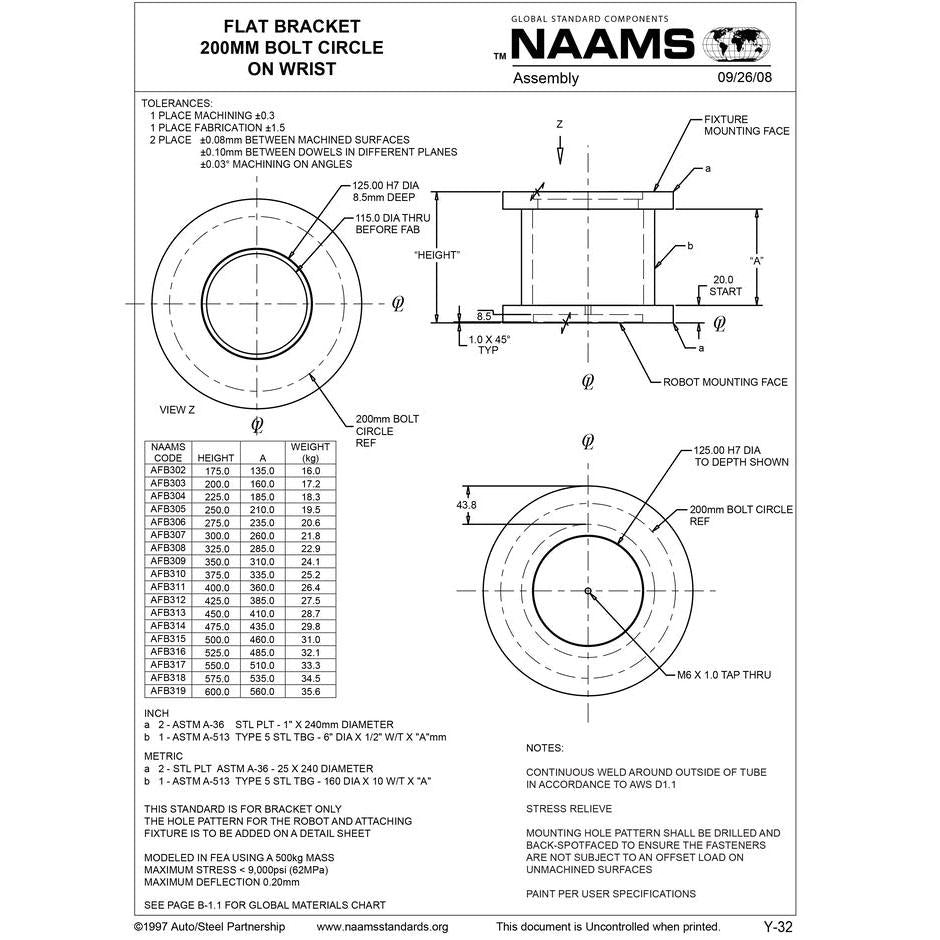

FREER NAAMS FLAT BRACKET AFB307
200mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 25 x 240mm Dia, b - 160 Dia x 10mm W/T x "A"
Height: 300mm
A: 260mm
Wt. kg: 21.8
