Brand: FREER NAAMS
NAAMS Flat Bracket AFB306
SKU: FN-AFB306
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Get ready to transform your assembly with the powerful NAAMS Flat Bracket AFB306! Made from sturdy ASTM A-36 steel plate and A-513 type 5 steel tubing, this 200mm bolt circle on wrist is the perfect solution for all your assembly needs! Upgrade to superior strength and reliability today!
Full Description

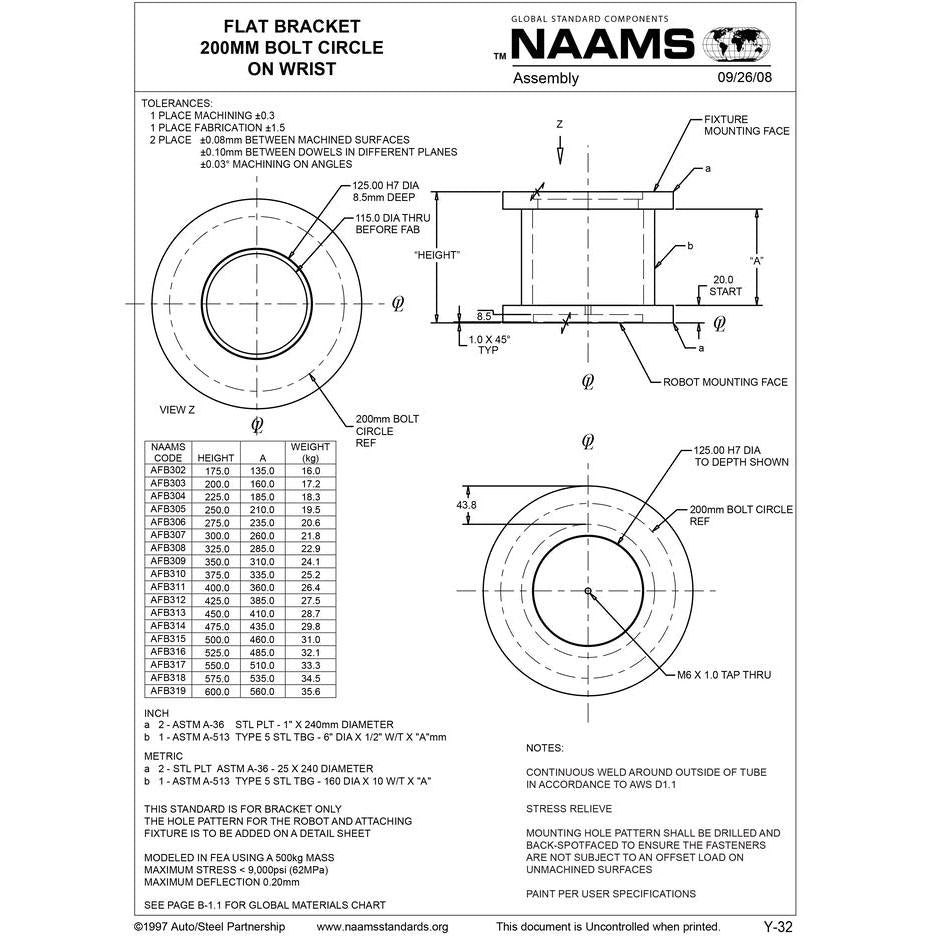

FREER NAAMS FLAT BRACKET AFB306
200mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 25 x 240mm Dia, b - 160 Dia x 10mm W/T x "A"
Height: 275mm
A: 235mm
Wt. kg: 20.6
