Brand: FREER NAAMS
NAAMS Flat Bracket AFB304
SKU: FN-AFB304
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Discover the value of NAAMS Flat Bracket AFB304 - the ultimate choice for your 200mm bolt circle needs. Crafted with precision from top-grade materials, including ASTM A-36 steel plate and ASTM A-513 type 5 steel tubing, this bracket offers unparalleled strength and durability. Elevate your project with confidence using the reliable AFB304.
Full Description

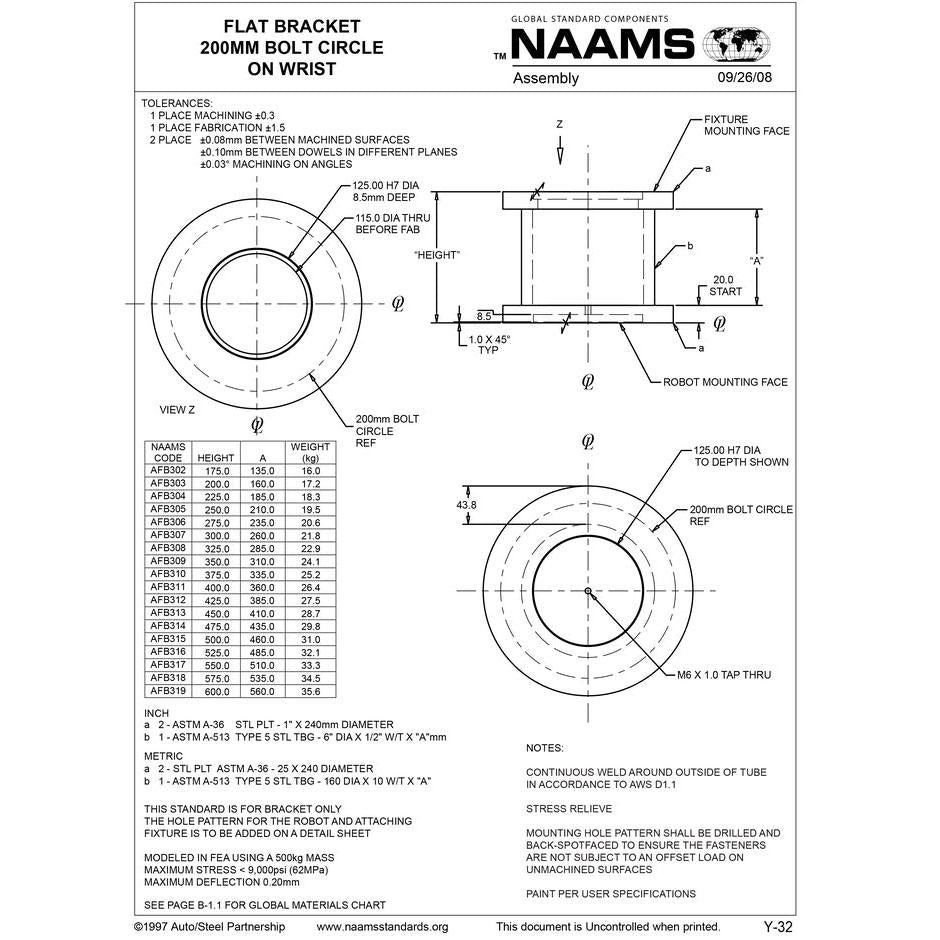

FREER NAAMS FLAT BRACKET AFB304
200mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 25 x 240mm Dia, b - 160 Dia x 10mm W/T x "A"
Height: 225mm
A: 185mm
Wt. kg: 18.3
