Brand: FREER NAAMS
NAAMS Flat Bracket AFB219
SKU: FN-AFB219
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
The NAAMS Flat Bracket AFB219 features a durable structure made of high-quality materials such as ASTM A-36 steel plate and ASTM A-513 type 5 steel tubing. With a 160mm bolt circle on the wrist, this bracket is perfect for any project requiring strength and reliability.
Full Description

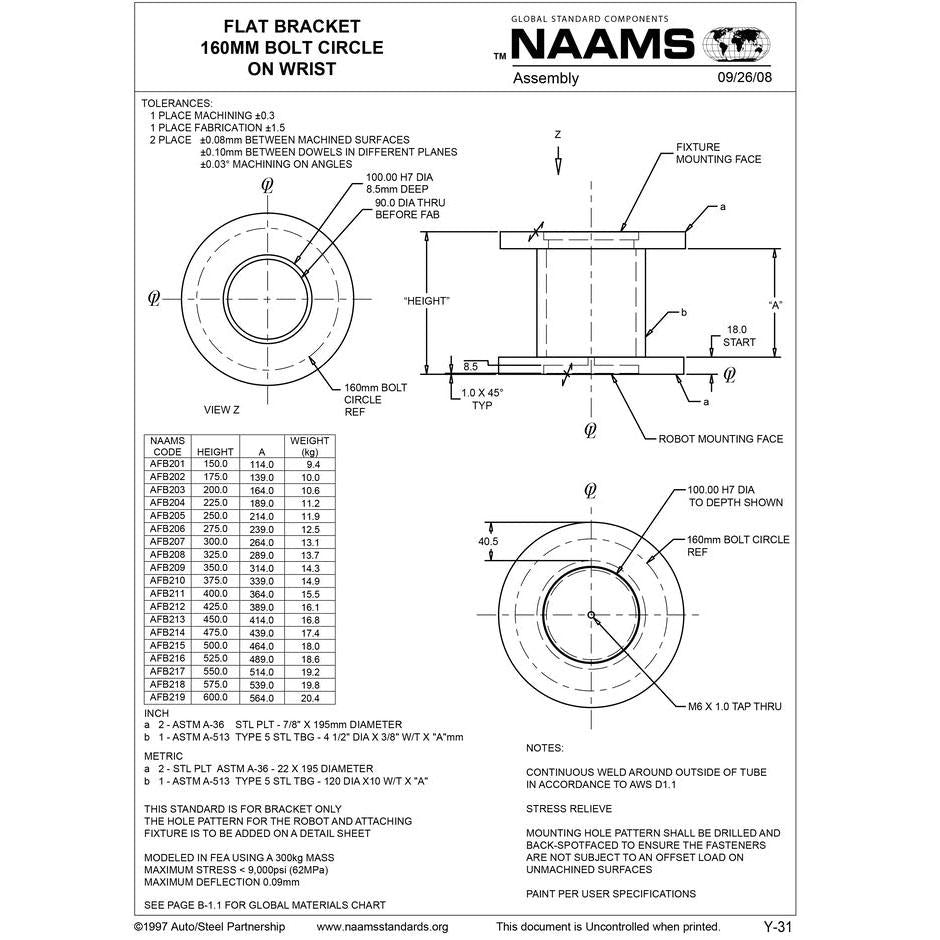

FREER NAAMS FLAT BRACKET AFB219
160mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 22 x 195mm Dia, b - 120 Dia x 10mm W/T x "A"
Height: 600mm
A: 564mm
Wt. kg: 20.4
