Brand: FREER NAAMS
NAAMS Flat Bracket AFB218
SKU: FN-AFB218
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Revitalize your NAAMS project with the durable AFB218 flat bracket. This bracket features a 160mm bolt circle on its wrist, crafted from high-quality materials like ASTM A-36 steel plate and ASTM A-513 type 5 steel tubing. Don't miss out on this essential component that will elevate your work to new heights!
Full Description

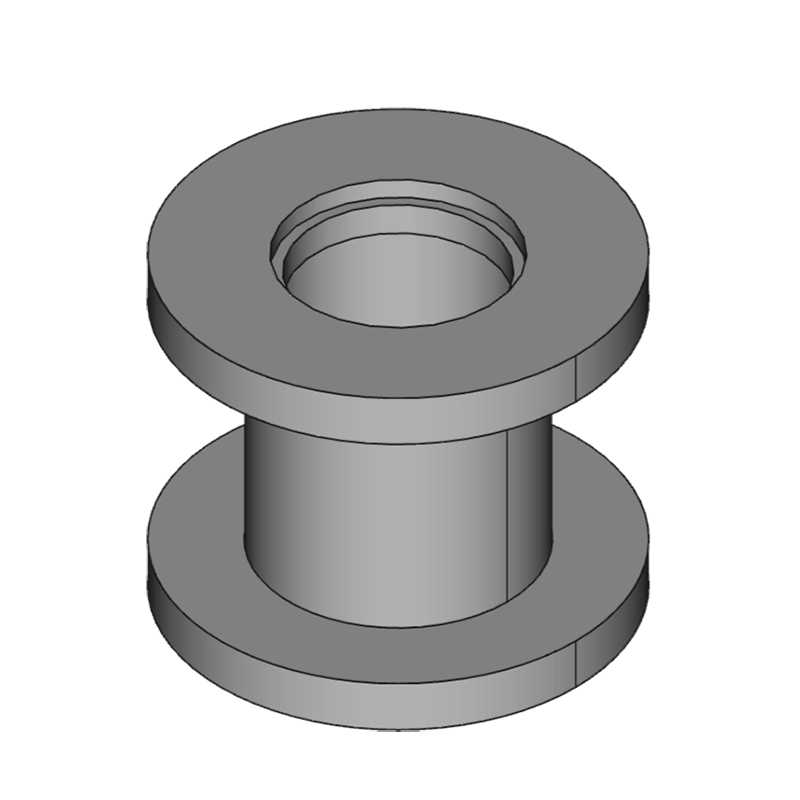

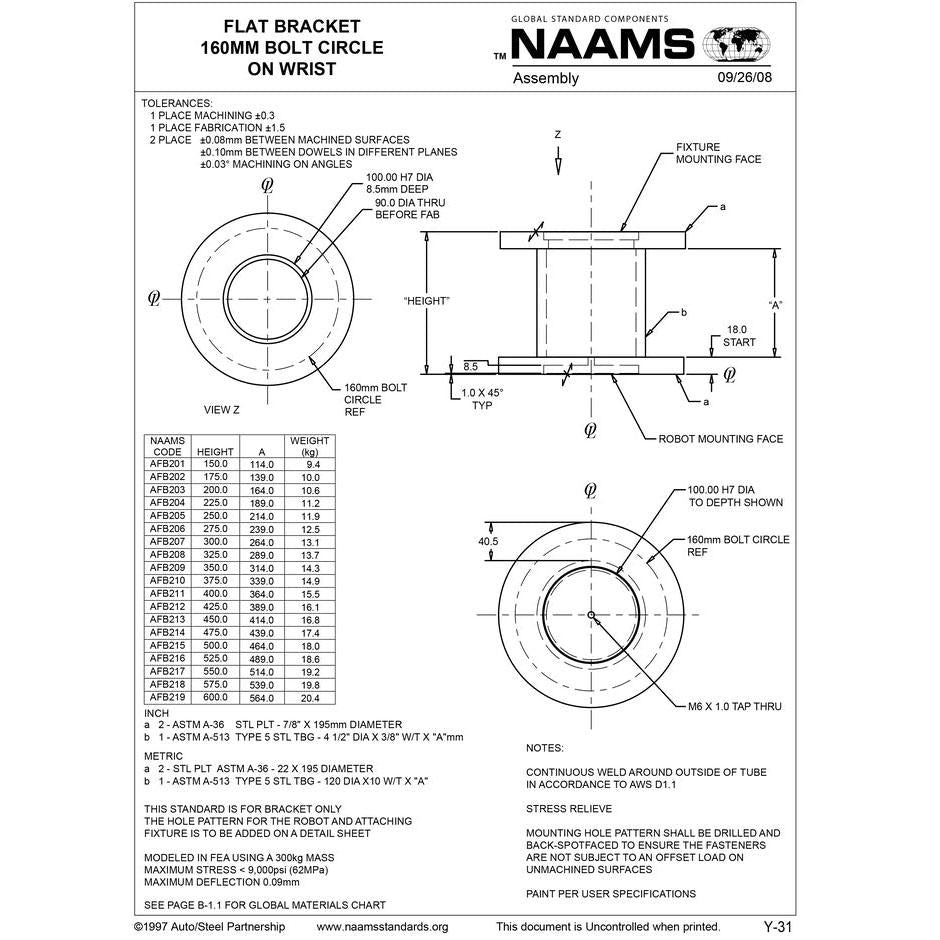

FREER NAAMS FLAT BRACKET AFB218
160mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 22 x 195mm Dia, b - 120 Dia x 10mm W/T x "A"
Height: 575mm
A: 539mm
Wt. kg: 19.8
