Brand: FREER NAAMS
NAAMS Flat Bracket AFB216
SKU: FN-AFB216
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Get ready to experience the high-quality and versatile NAAMS Flat Bracket AFB216! It comes with a 160mm Bolt Circle on Wrist made of top-of-the-line materials such as ASTM A-36 Steel Plate and ASTM A-513 Type 5 Steel Tubing. Upgrade your equipment with this must-have product today.
Full Description

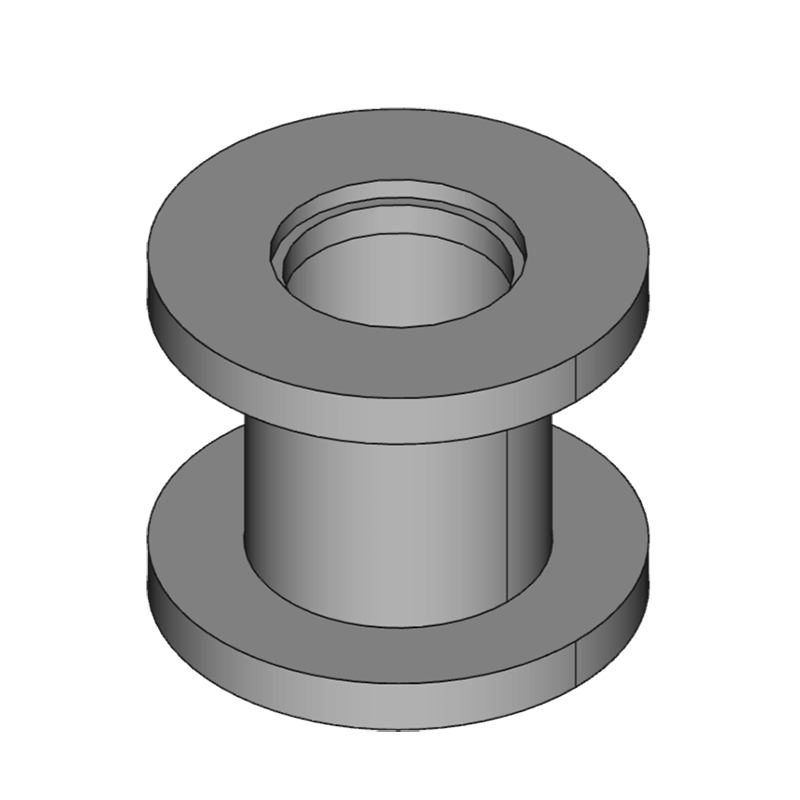

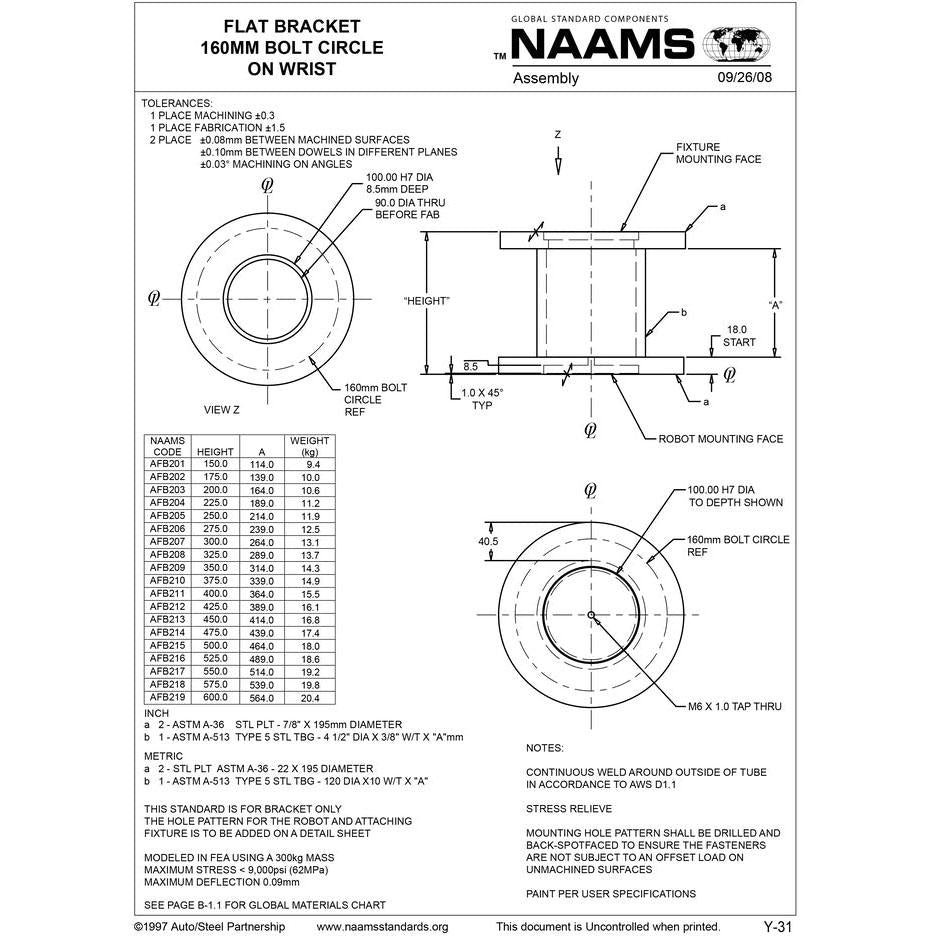

FREER NAAMS FLAT BRACKET AFB216
160mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 22 x 195mm Dia, b - 120 Dia x 10mm W/T x "A"
Height: 525mm
A: 489mm
Wt. kg: 18.6
