Brand: FREER NAAMS
NAAMS Flat Bracket AFB215
SKU: FN-AFB215
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Experience the ultimate strength and versatility of NAAMS Flat Bracket AFB215 with a 160mm bolt circle on wrist. Crafted with high-quality materials, this bracket is made from ASTM A-36 steel plate and ASTM A-513 type 5 steel tubing, ensuring unbeatable durability. Trust in the reliability of this product to support your most critical projects.
Full Description

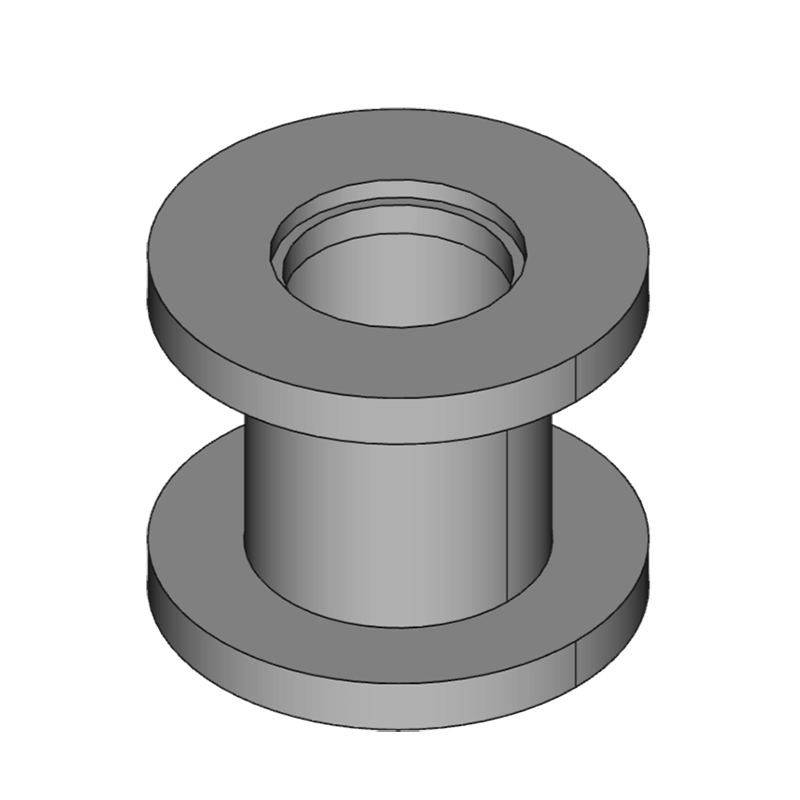

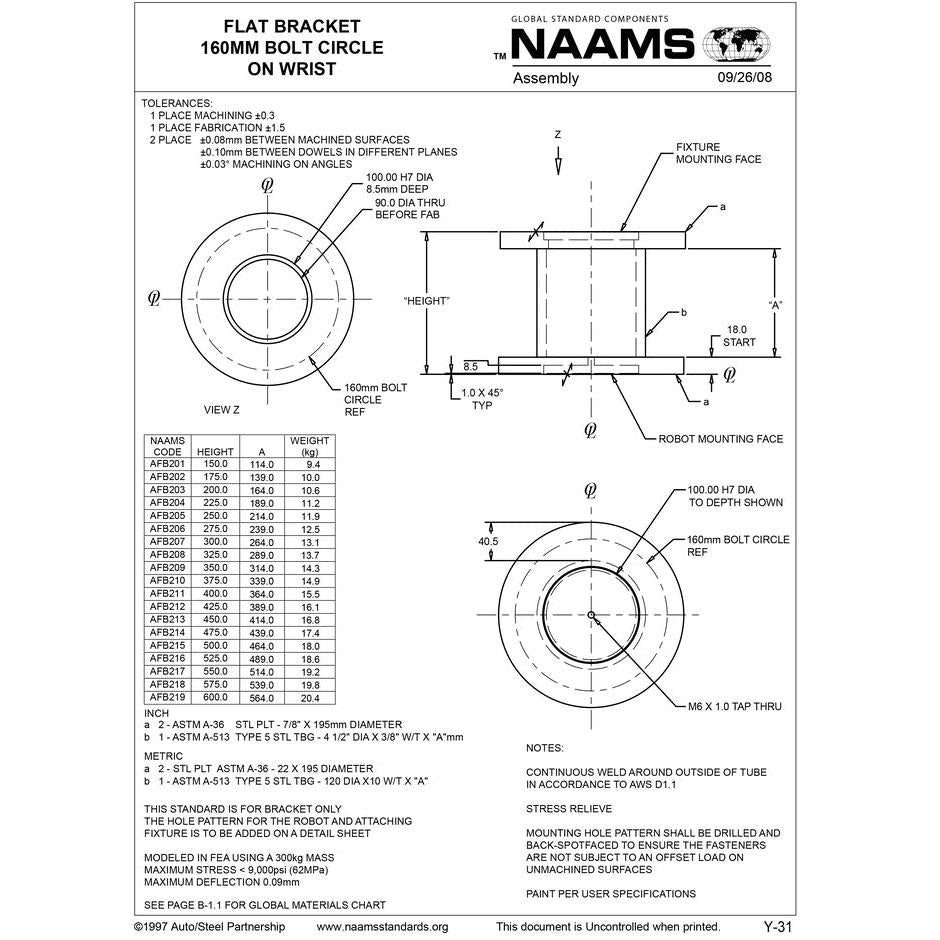

FREER NAAMS FLAT BRACKET AFB215
160mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 22 x 195mm Dia, b - 120 Dia x 10mm W/T x "A"
Height: 500mm
A: 464mm
Wt. kg: 18
