Brand: FREER NAAMS
NAAMS Flat Bracket AFB213
SKU: FN-AFB213
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Experience the remarkable strength and stability of the NAAMS Flat Bracket AFB213! Designed with a 160mm Bolt Circle, this bracket is built with ASTM A-36 Steel Plate and ASTM A-513 Type 5 Steel Tubing, ensuring durability and reliability for all your needs. Trust in the unbeatable value of this product and elevate your projects to the next level!
Full Description

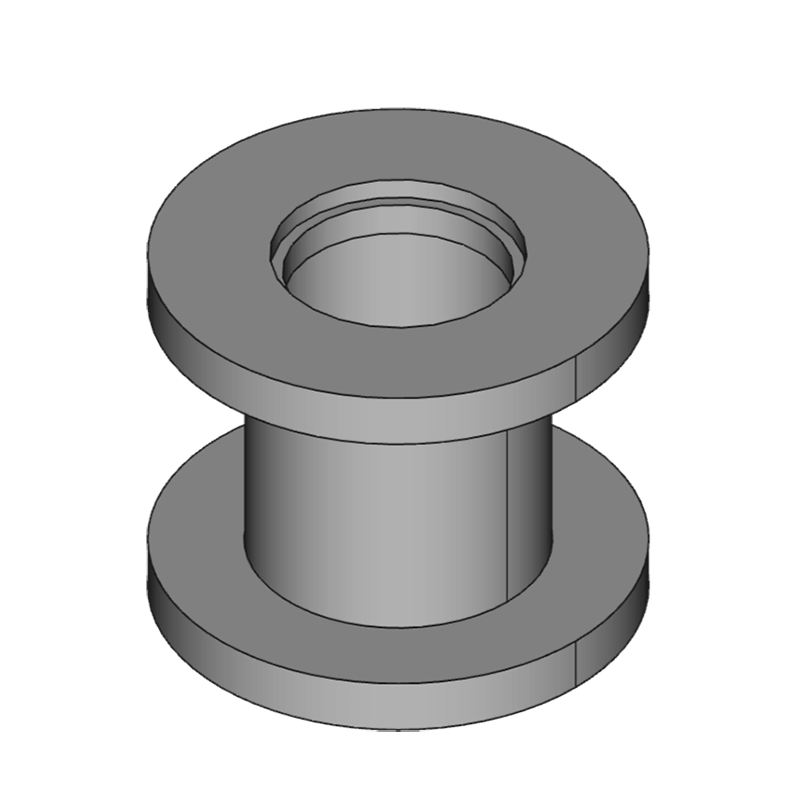

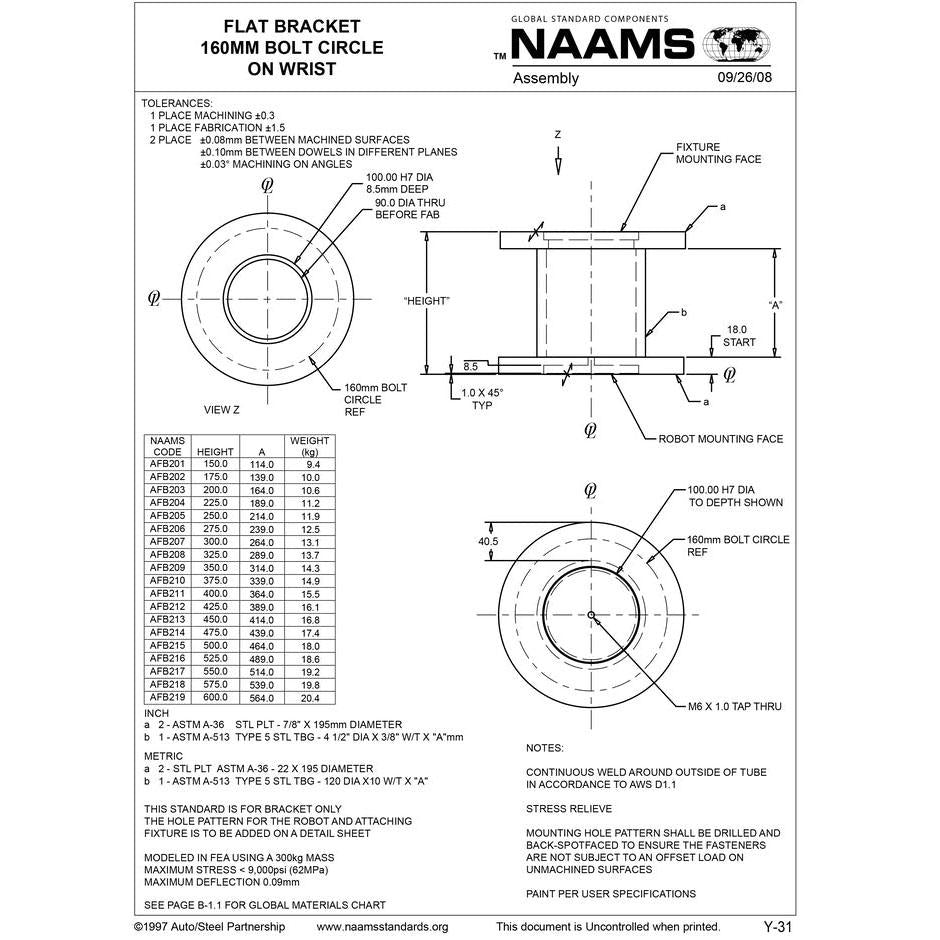

FREER NAAMS FLAT BRACKET AFB213
160mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 22 x 195mm Dia, b - 120 Dia x 10mm W/T x "A"
Height: 450mm
A: 414mm
Wt. kg: 16.8
