Brand: FREER NAAMS
NAAMS Flat Bracket AFB212
SKU: FN-AFB212
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Elevate your assembly line with NAAMS Flat Bracket AFB212! Made of high-quality materials, including ASTM A-36 steel plate and A-513 type 5 steel tubing, this 160mm Bolt Circle on Wrist is designed to optimize efficiency and accuracy. Upgrade your production process today with NAAMS Flat Bracket AFB212!
Full Description

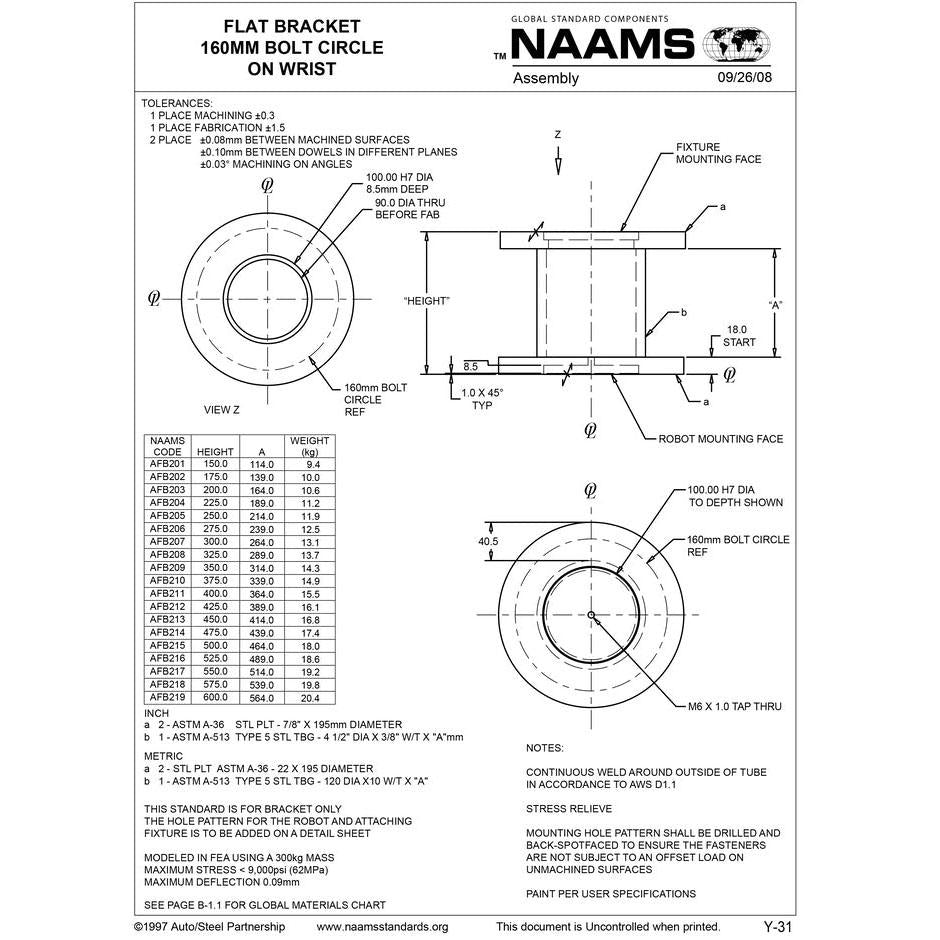

FREER NAAMS FLAT BRACKET AFB212
160mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 22 x 195mm Dia, b - 120 Dia x 10mm W/T x "A"
Height: 425mm
A: 389mm
Wt. kg: 16.1
