Brand: FREER NAAMS
NAAMS Flat Bracket AFB211
SKU: FN-AFB211
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Experience the endless possibilities with the NAAMS Flat Bracket AFB211, featuring a 160mm Bolt Circle on Wrist. Material made from high-quality ASTM A-36 Steel Plate and ASTM A-513 Type 5 Steel Tubing. Unleash your creativity and bring your projects to life with this versatile and durable product.
Full Description

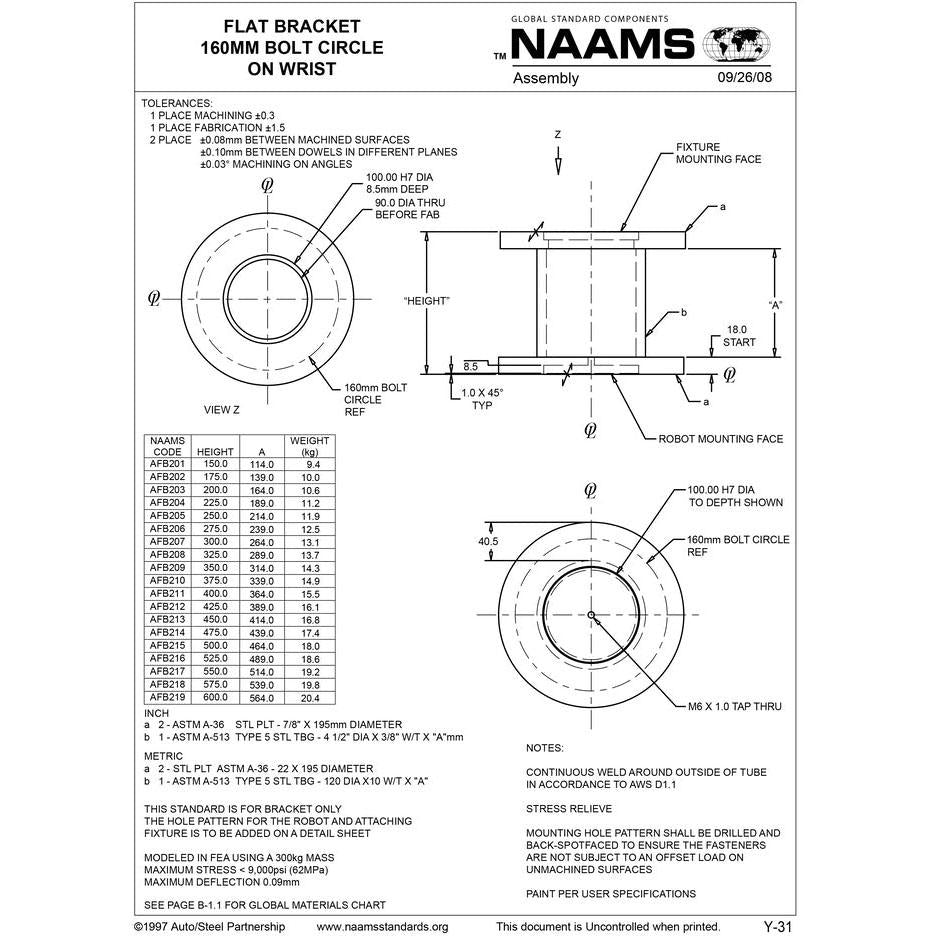

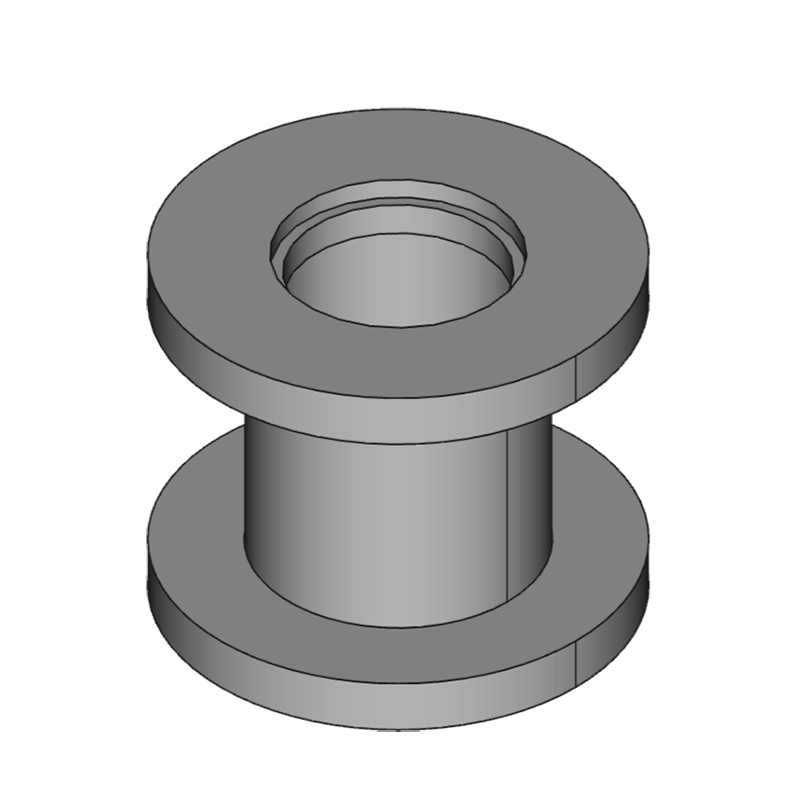

FREER NAAMS FLAT BRACKET AFB211
160mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 22 x 195mm Dia, b - 120 Dia x 10mm W/T x "A"
Height: 400mm
A: 364mm
Wt. kg: 15.5
