Brand: FREER NAAMS
NAAMS Flat Bracket AFB205
SKU: FN-AFB205
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Get the value you deserve with the NAAMS Flat Bracket AFB205. This product offers a 160mm bolt circle and is made with high-quality materials, including ASTM A-36 steel plate and A-513 type 5 steel tubing. With dimensions of 22 x 195mm x 214mm and height of 250mm, and a weight of 11.9kg, this product is perfect for your needs.
Full Description

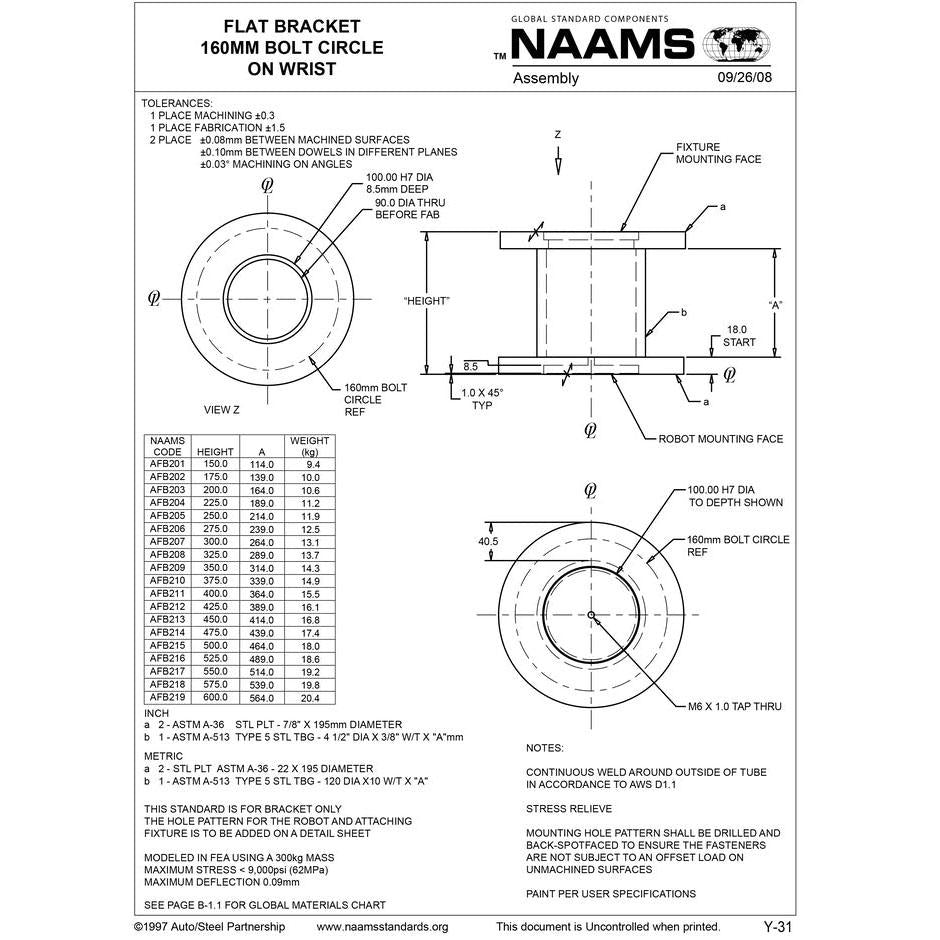

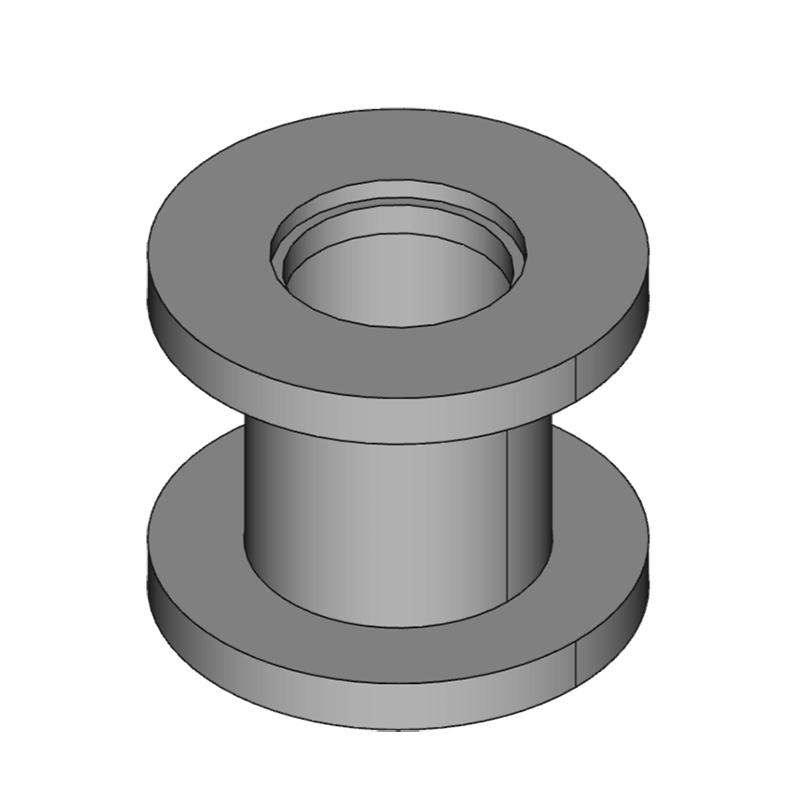

FREER NAAMS FLAT BRACKET AFB205
*THIS PRODUCT HAS A MINIMUM 6-WEEK LEAD TIME*
160mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 22 x 195mm Dia, b - 120 Dia x 10mm W/T x "A"
Height: 250mm
A: 214mm
Wt. kg: 11.9
