Brand: FREER NAAMS

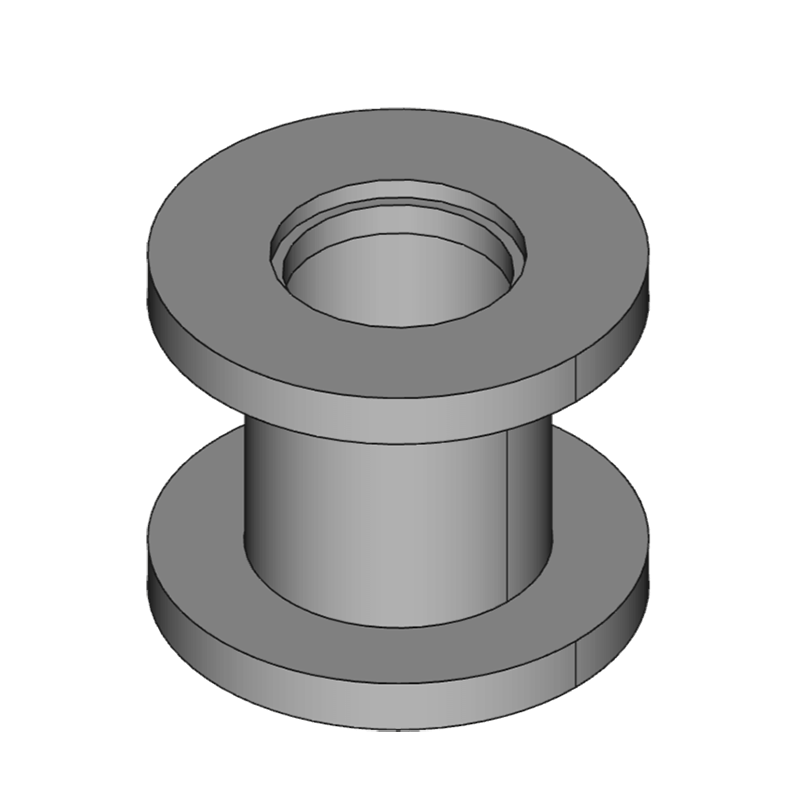

NAAMS Flat Bracket AFB203

SKU: FN-AFB203
MPN: AFB203

  • Unit price per

Please Email SALES For Pricing

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**


Looking for CAD models?
Request NAAMS CAD Models

Short Description

Experience the exceptional quality and versatility of NAAMS Flat Bracket AFB203, designed with precision using ASTM A-36 steel plate and ASTM A-513 Type 5 steel tubing. With a 160mm bolt circle on the wrist and dimensions of 22 x 195mm and 120 Dia x 10mm W/T, Height: 200mm, this bracket offers unmatched strength and reliability for any project. Lightweight at just 10.6kg, it provides a strong and durable solution for all your needs.


Full Description

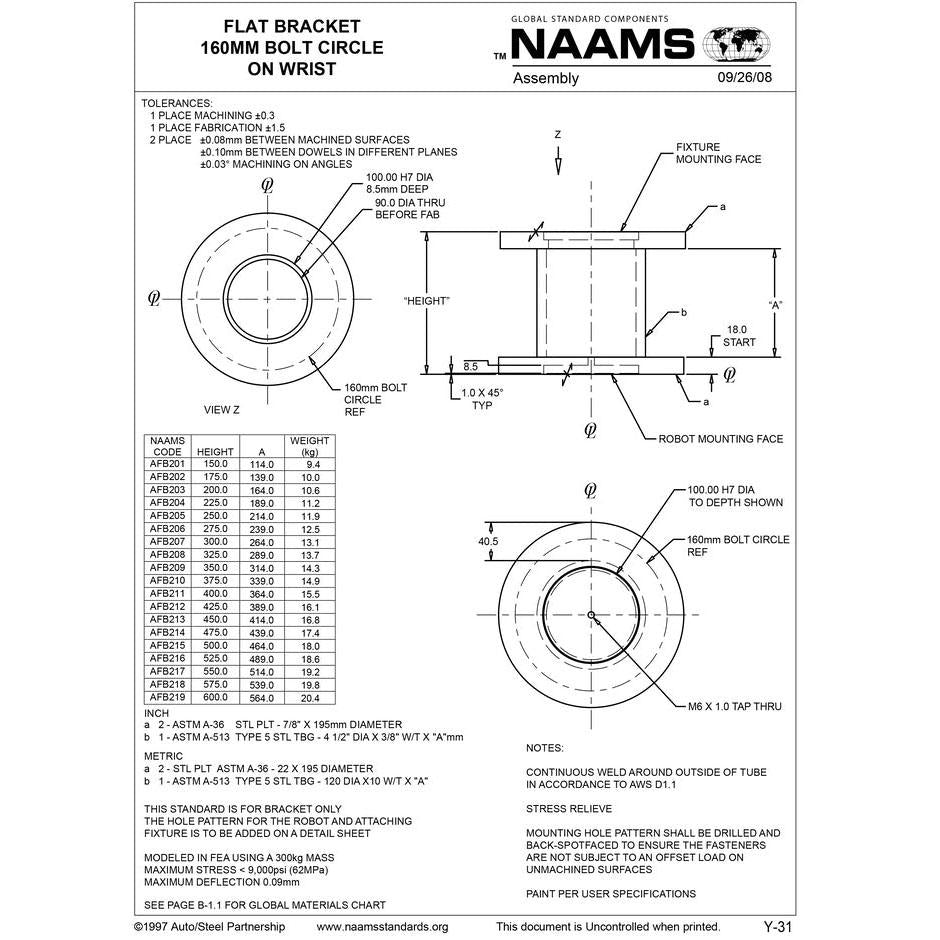

FREER NAAMS FLAT BRACKET AFB203

160mm Bolt Circle on Wrist

Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing

Dimensions: a - 22 x 195mm Dia, b - 120 Dia x 10mm W/T x "A"

Height: 200mm

A: 164mm

Wt. kg: 10.6

NAAMS Flat Bracket AFB203
