Brand: FREER NAAMS
NAAMS Flat Bracket AFB201
SKU: FN-AFB201
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
The NAAMS Flat Bracket AFB201 features a 160mm Bolt Circle and is made from a sturdy combination of ASTM A-36 Steel Plate and ASTM A-513 Type 5 Steel Tubing. Its dimensions of 22 x 195mm and 120 Dia x 10mm W/T make it perfect for a variety of applications. With a Height of 150mm and a weight of 9.4 kg, this bracket is a durable and reliable choice for any project.
Full Description

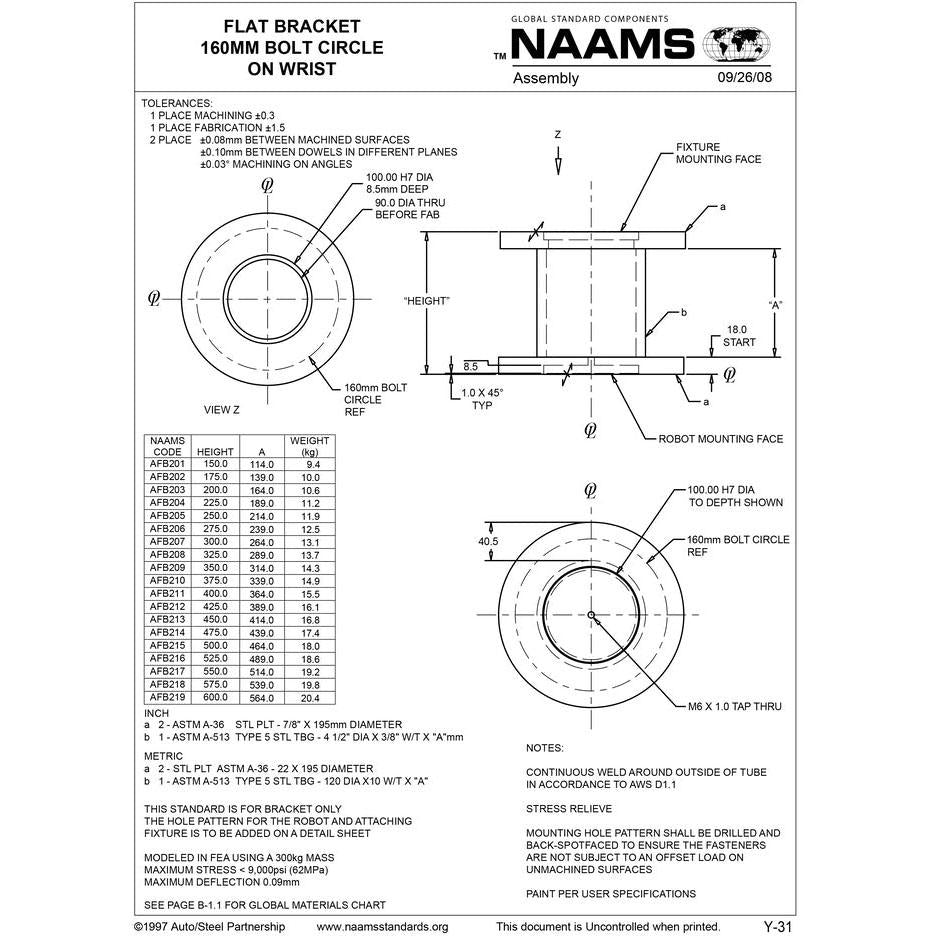

FREER NAAMS FLAT BRACKET AFB201
160mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 22 x 195mm Dia, b - 120 Dia x 10mm W/T x "A"
Height: 150mm
A: 114mm
Wt. kg: 9.4
