Brand: FREER NAAMS
NAAMS Flat Bracket AFB119
SKU: FN-AFB119
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
This NAAMS Flat Bracket AFB119 is perfect for your needs, offering a 125mm bolt circle on high-quality wrist material. The bracket is made of ASTM A-36 steel plate and ASTM A-513 Type 5 steel tubing, with dimensions of 20 x 150mm for the plate and 90mm for the tubing. Its height measures 600mm and weighs 13.8kg for convenient use. Get ready to be impressed by the strength and durability of this bracket!
Full Description

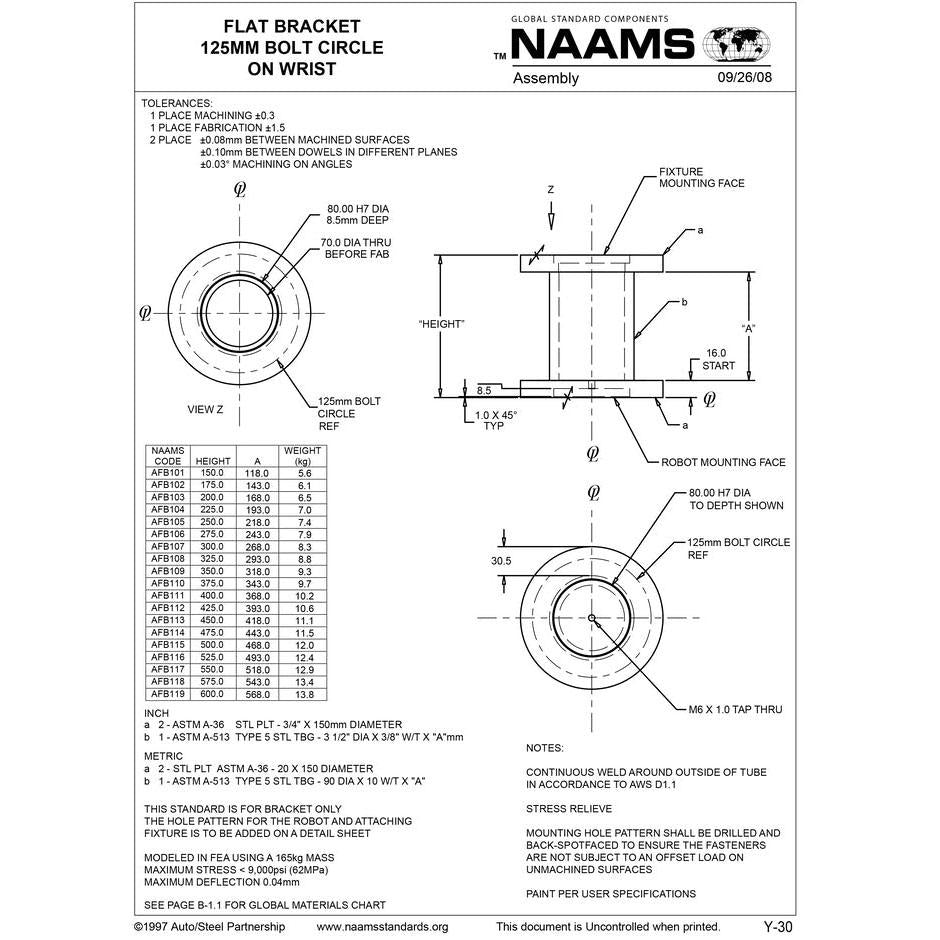

FREER NAAMS FLAT BRACKET AFB119
125mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 20 x 150mm Dia, b - 90 Dia x 10mm W/T x "A"
Height: 600mm
A: 568mm
Wt. kg: 13.8
