Brand: FREER NAAMS

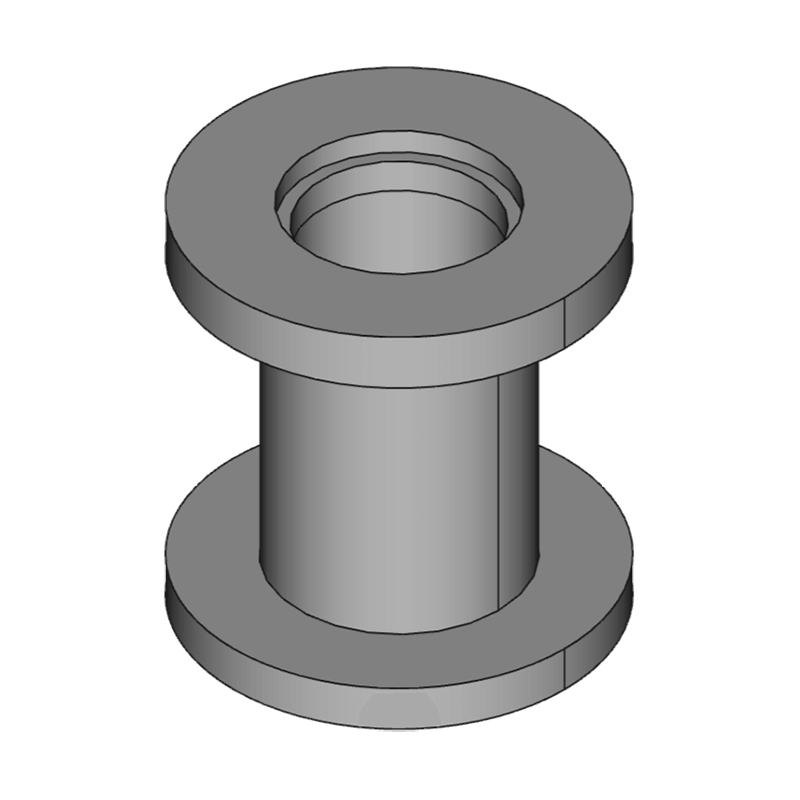

NAAMS Flat Bracket AFB115
SKU: FN-AFB115
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
This NAAMS Flat Bracket AFB115 is made with precision and care, using high-quality materials that guarantee its strength and durability. The bracket boasts a 125mm Bolt Circle on Wrist and is constructed from ASTM A-36 Steel Plate and ASTM A-513 Type 5 Steel Tubing for maximum performance. With dimensions of 20 x 150mm Dia and 90 Dia x 10mm W/T, it stands at an impressive 500mm in height, making it suitable for a variety of applications. It weighs 12kg, making it a sturdy and reliable choice for any project.
Full Description

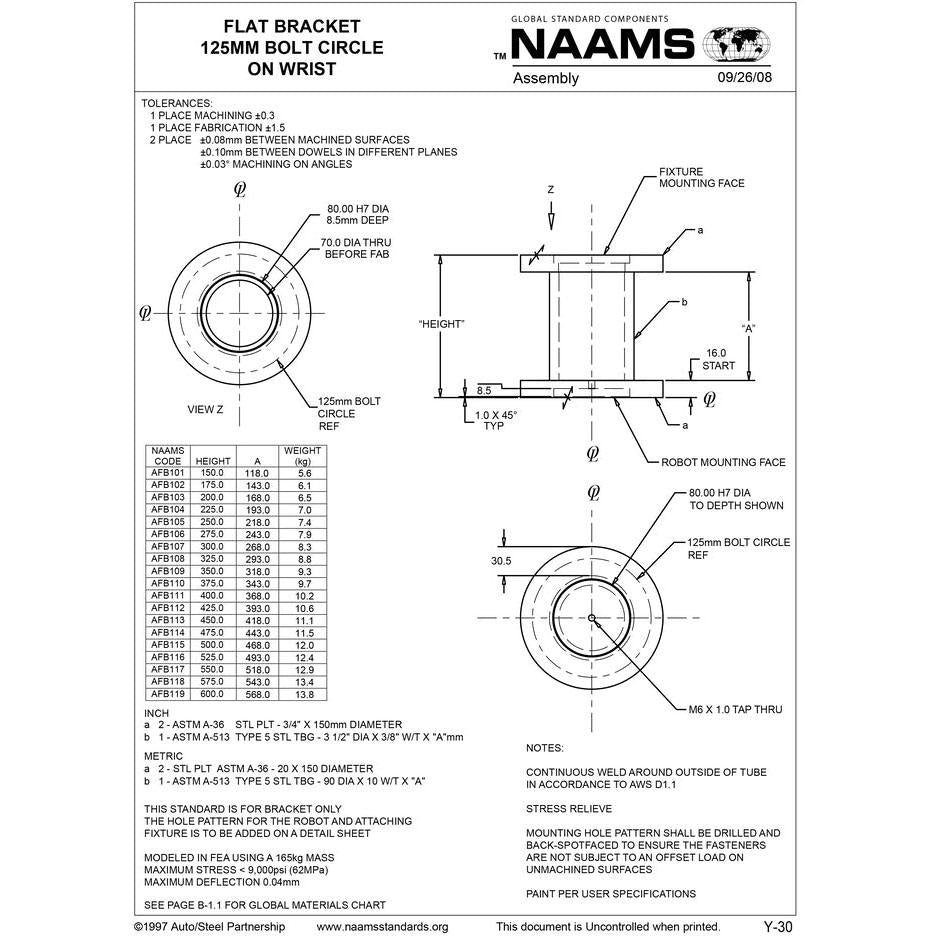

FREER NAAMS FLAT BRACKET AFB115
125mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 20 x 150mm Dia, b - 90 Dia x 10mm W/T x "A"
Height: 500mm
A: 468mm
Wt. kg: 12
