Brand: FREER NAAMS
NAAMS Flat Bracket AFB110
SKU: FN-AFB110
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Discover the incredible NAAMS Flat Bracket AFB110, featuring a 125mm Bolt Circle on Wrist Material made of ASTM A-36 Steel Plate and ASTM A-513 Type 5 Steel Tubing. Its dimensions of 20 x 150mm Dia and 90 Dia x 10mm W/T will surely impress, with a Height of 375mm and a weight of only 9.7 kg. Get yours now and experience the quality and durability it provides!
Full Description

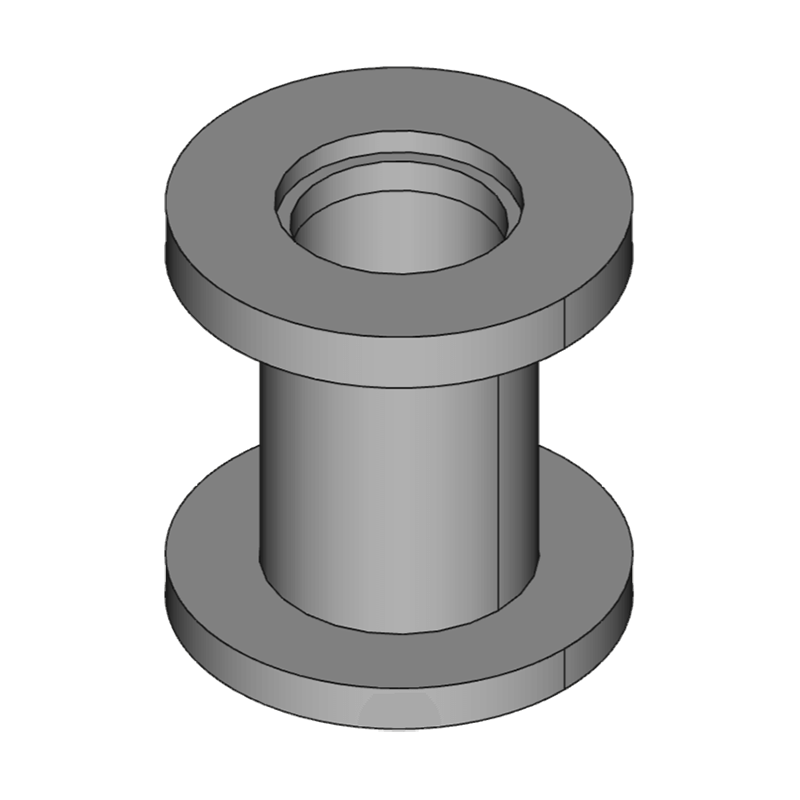

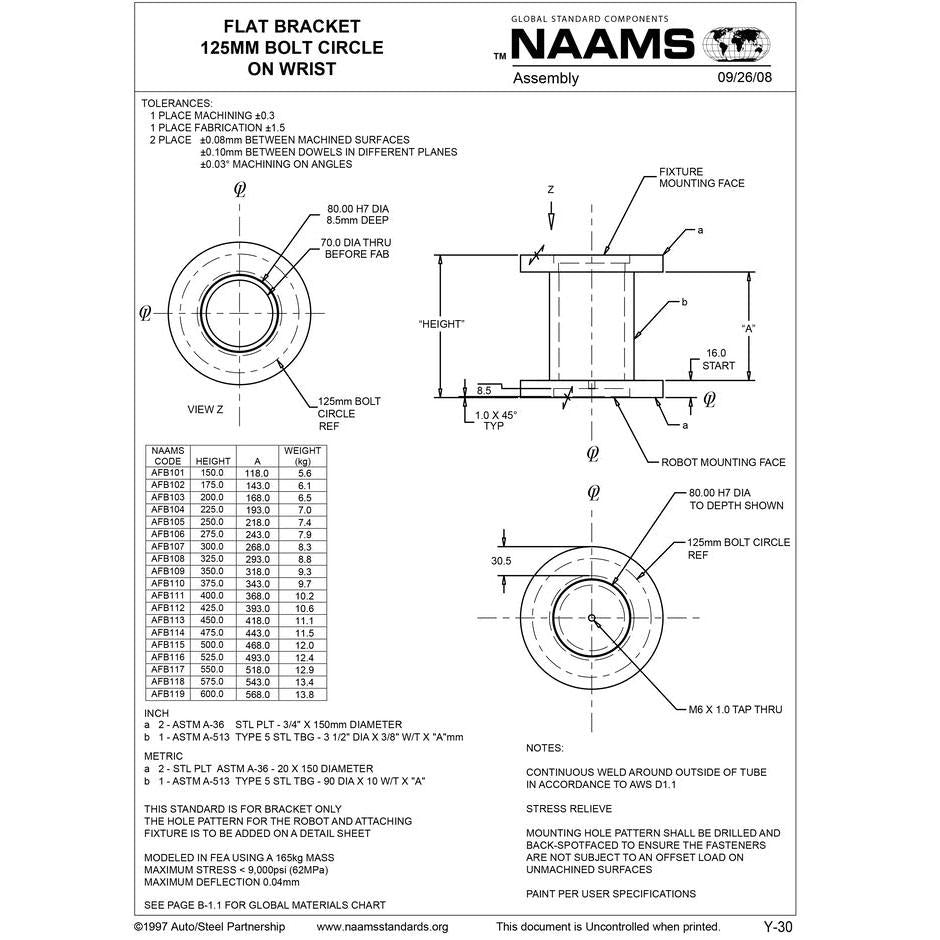

FREER NAAMS FLAT BRACKET AFB110
125mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 20 x 150mm Dia, b - 90 Dia x 10mm W/T x "A"
Height: 375mm
A: 343mm
Wt. kg: 9.7
