Brand: FREER NAAMS

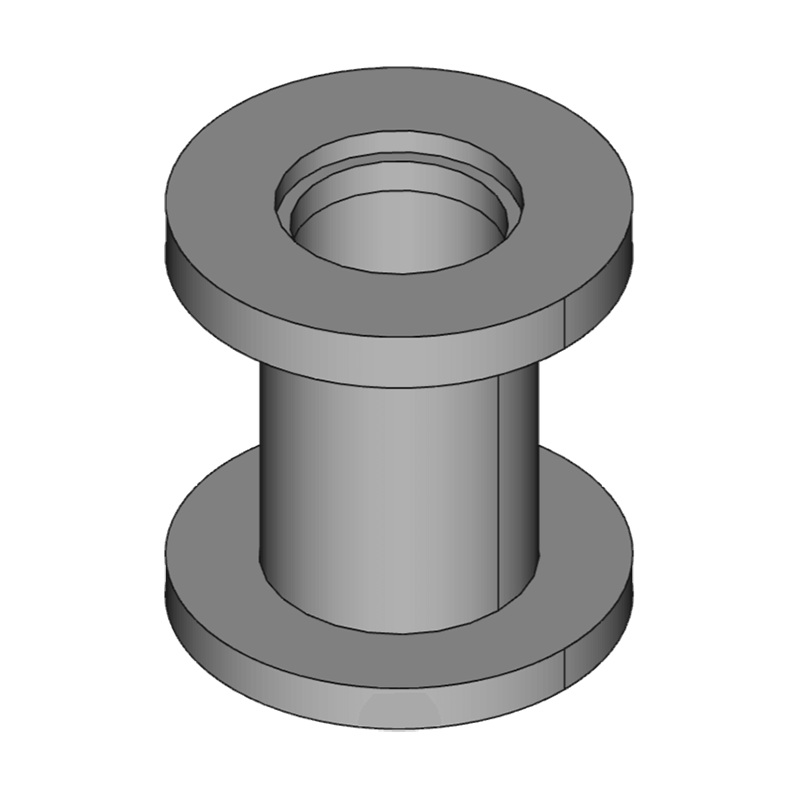

NAAMS Flat Bracket AFB108
SKU: FN-AFB108
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Enhance your production with NAAMS Flat Bracket AFB108! This sturdy bracket, made of high-quality materials such as ASTM A-36 steel plate and ASTM A-513 type 5 steel tubing, uses a 125mm bolt circle on the wrist to securely hold your components. With dimensions of 20 x 150mm Dia for the base and 90 Dia x 10mm W/T x 293mm for the arm, it offers a generous height of 325mm, with a weight of only 8.8kg. Get your hands on this reliable and efficient bracket now!
Full Description

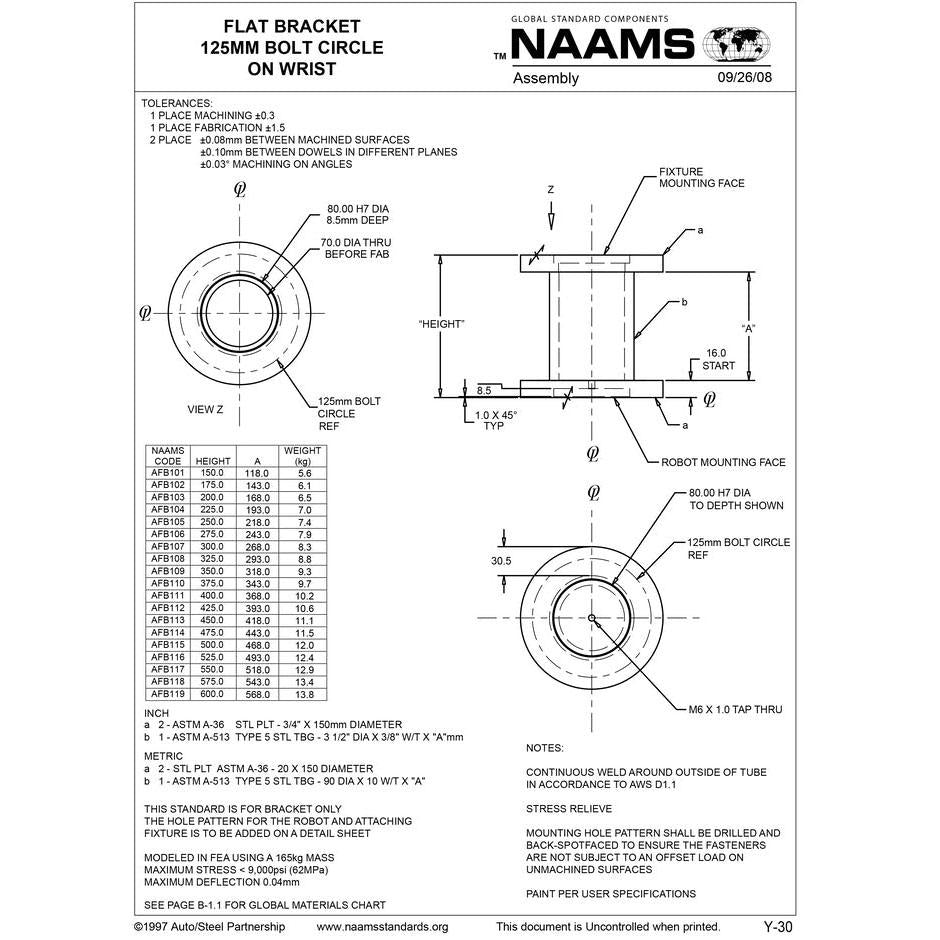

FREER NAAMS FLAT BRACKET AFB108
125mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 20 x 150mm Dia, b - 90 Dia x 10mm W/T x "A"
Height: 325mm
A: 293mm
Wt. kg: 8.8
