Brand: FREER NAAMS
NAAMS Flat Bracket AFB107
SKU: FN-AFB107
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
The NAAMS Flat Bracket AFB107 is constructed with high-quality materials, including ASTM A-36 Steel Plate and ASTM A-513 Type 5 Steel Tubing. Its dimensions are 20 x 150mm Dia and 90 Dia x 10mm W/T x 268mm, making it a compact yet durable choice. With a 125mm Bolt Circle on Wrist and a weight of just 8.3 kg, this bracket offers exceptional support for any application. Enhance your projects with the reliable and versatile AFB107.
Full Description

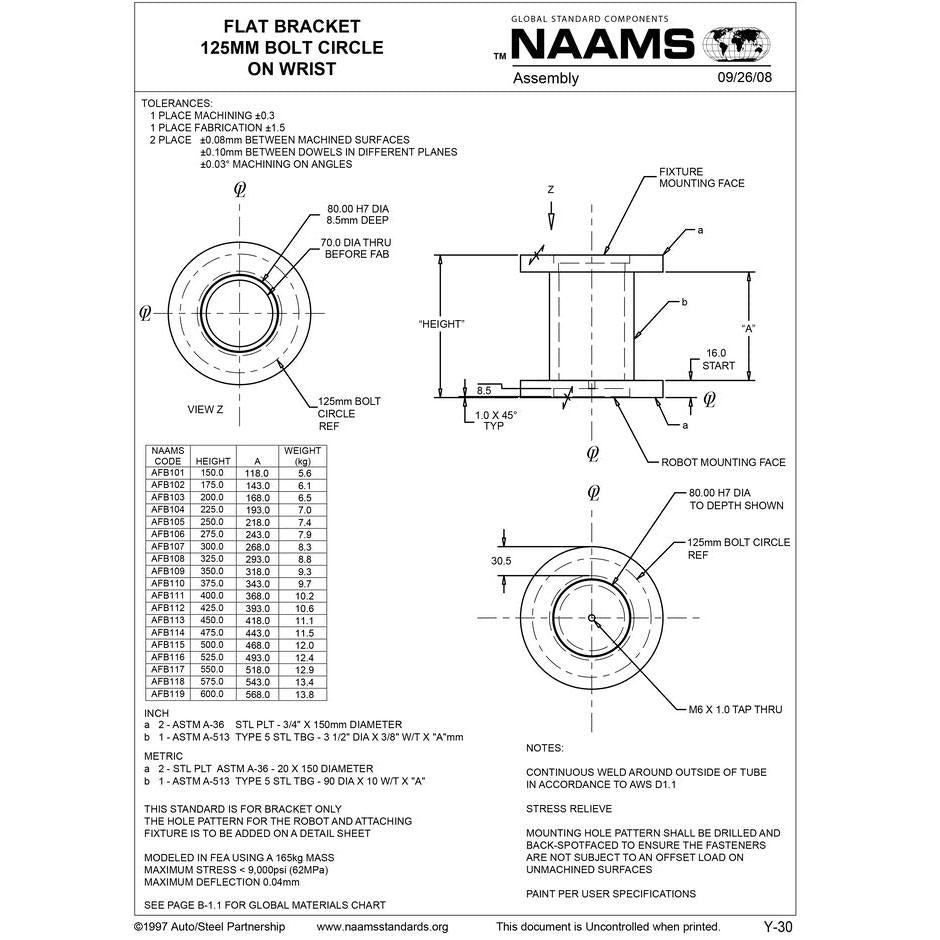

FREER NAAMS FLAT BRACKET AFB107
125mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 20 x 150mm Dia, b - 90 Dia x 10mm W/T x "A"
Height: 300mm
A: 268mm
Wt. kg: 8.3
