Brand: FREER NAAMS
NAAMS Cylinder Mounting Assembly ACT113
SKU: FN-ACT113
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
The NAAMS Cylinder Mounting Assembly ACT113 Assembly is the perfect solution for all your mounting needs! It includes a Trunnion Block (ACT141) with two 13mm holes and a Ø41mm center thru hole, as well as a Trunnion Bearing (ACT133) with an inner diameter of 36mm, outer diameter of 45.08mm, and thickness of 23mm. Get ready to experience the ultimate in precision and reliability with this incredible product!
Full Description

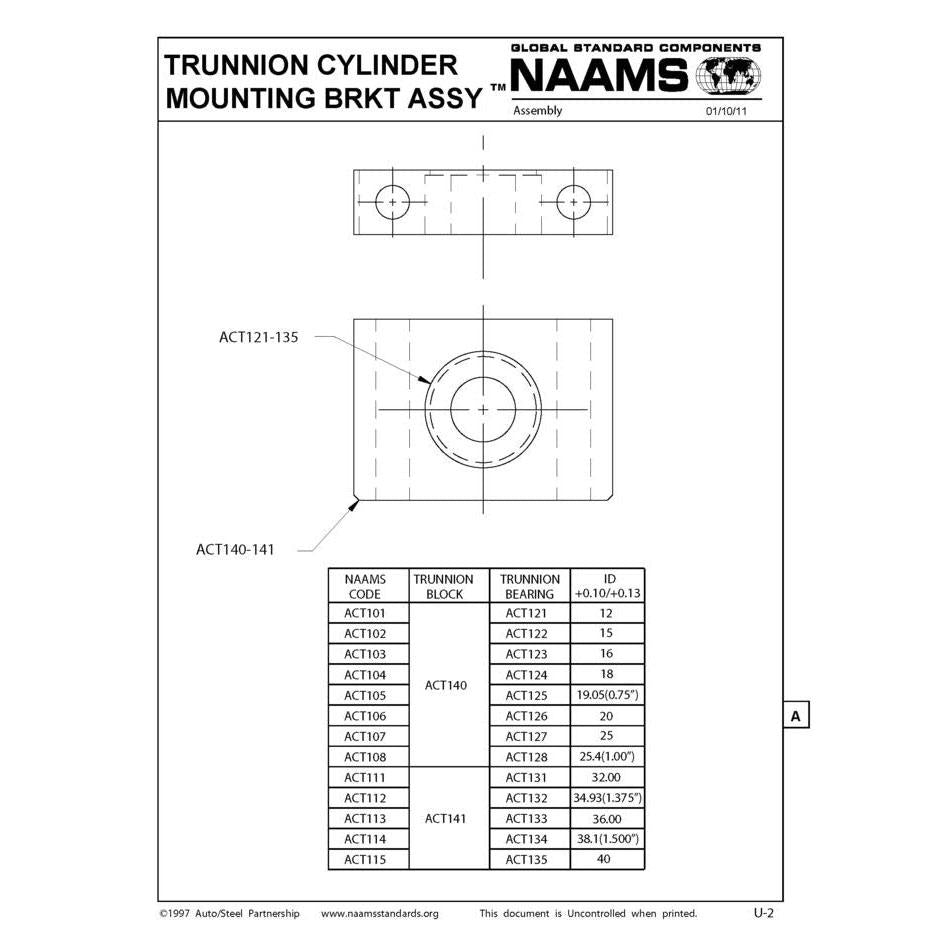

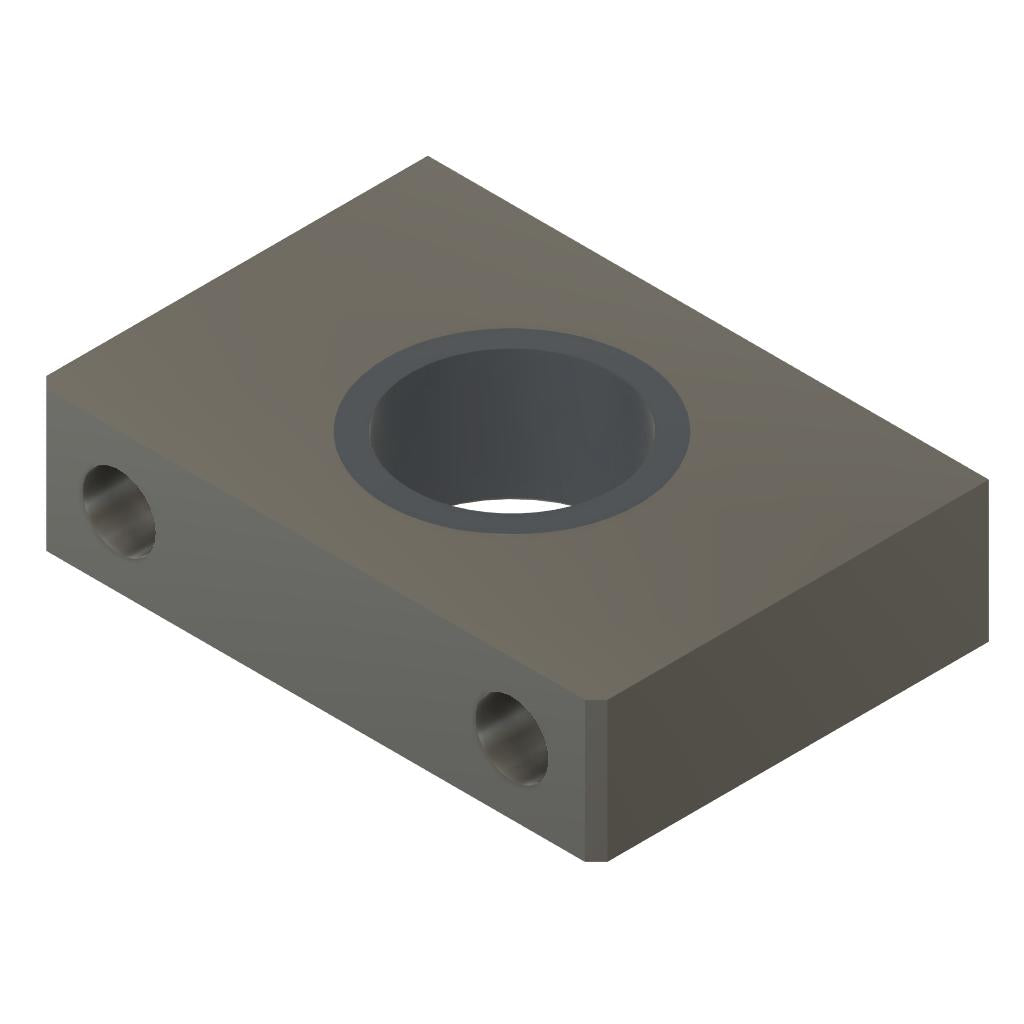

FREER NAAMS CYLINDER MOUNTING ASSEMBLY ACT113
Assembly Comes with:
Trunnion Block - ACT141 - 100 x 70 x 25mm - (2) 13mm holes - (1) Ø41mm center thru hole
Trunnion Bearing - ACT133 - I.D. 36mm - O.D. 45.08mm - 23mm thickness
