Brand: FREER NAAMS
NAAMS Cylinder Mounting Assembly ACT106
SKU: FN-ACT106
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Enhance your assembly with the exceptional NAAMS Cylinder Mounting Assembly ACT106! Included are a Trunnion Block - ACT140 - measuring 100 x 70 x 25mm with (2) 13mm holes and a Ø28mm center thru hole, as well as a Trunnion Bearing - ACT126 - with an I.D. of 20mm, O.D. of 32.07mm, and 23mm thickness. Boost your assembly with these top-quality components now!
Full Description

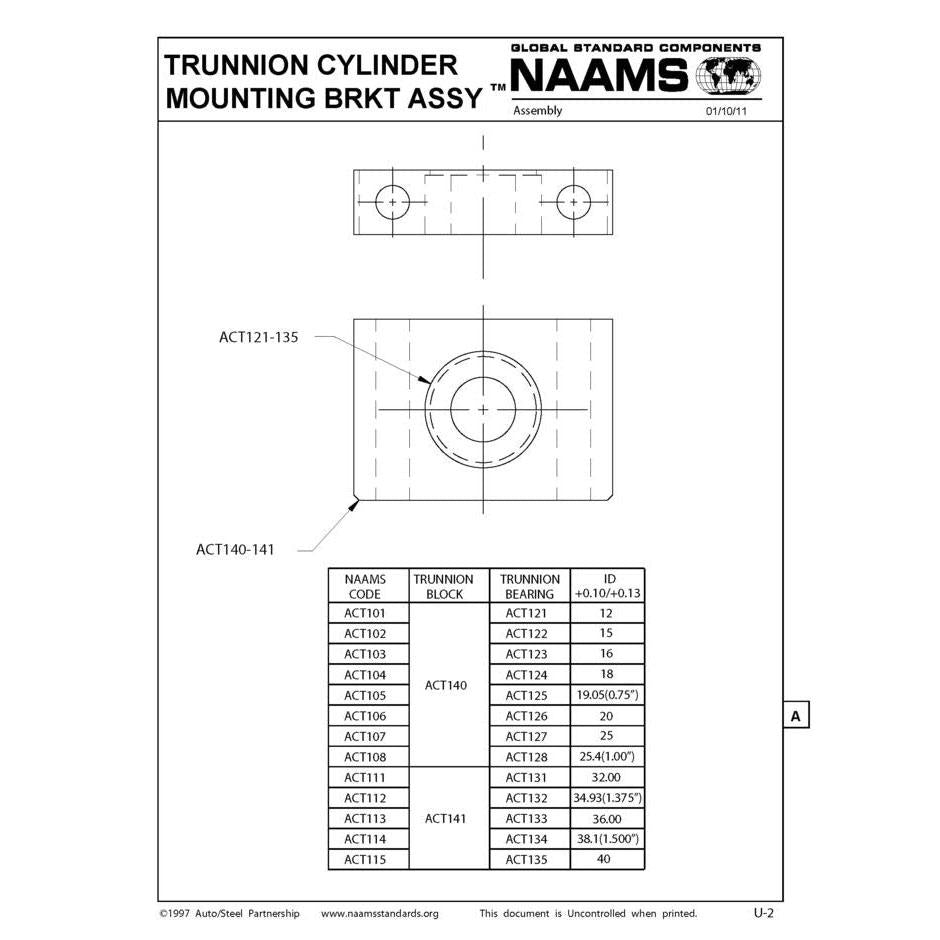

FREER NAAMS CYLINDER MOUNTING ASSEMBLY ACT106
Assembly Comes with:

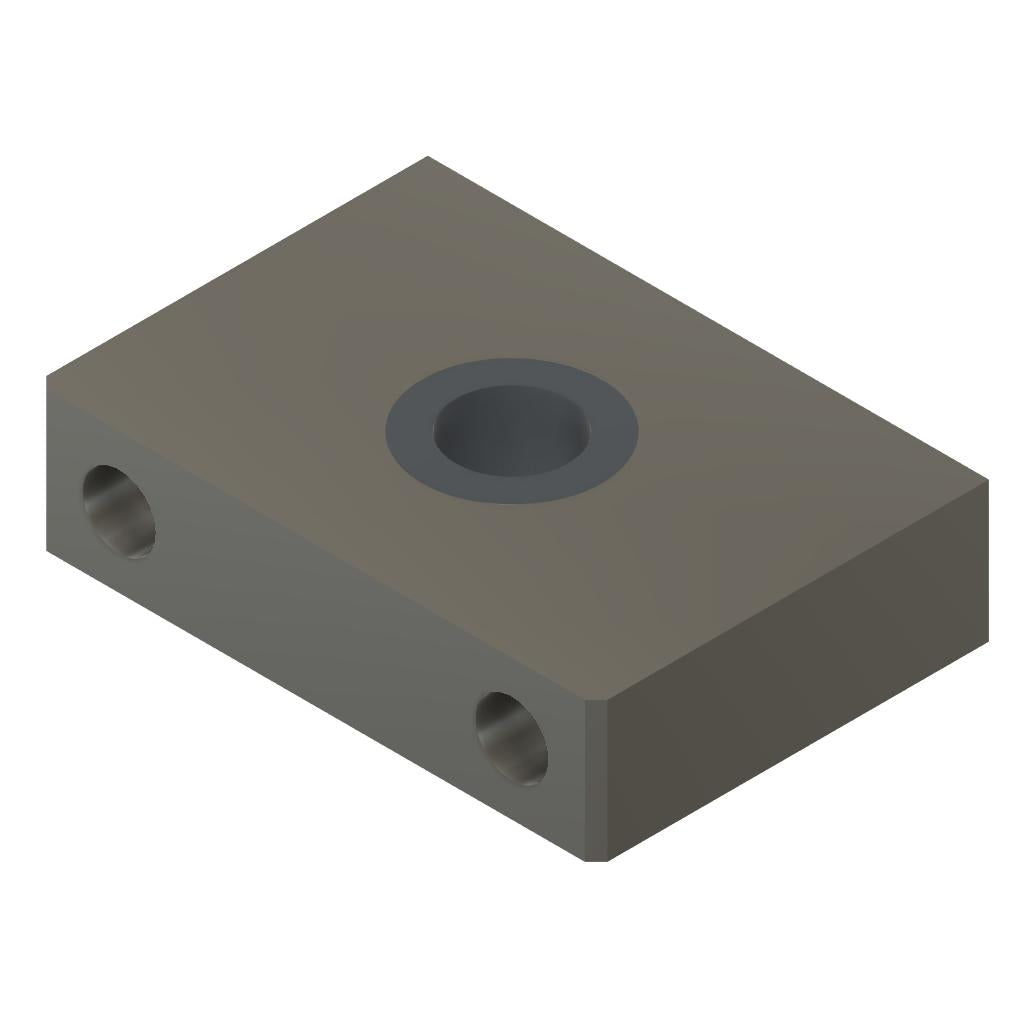

Trunnion Block - ACT140 - 100 x 70 x 25mm - (2) 13mm holes - (1) Ø28mm center thru hole
Trunnion Bearing - ACT126 - I.D. 20mm - O.D. 32.07mm - 23mm thickness
