Brand: FREER NAAMS
NAAMS Cylinder Mounting Assembly ACT104
SKU: FN-ACT104
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Enhance your assembly with the powerful and versatile NAAMS Cylinder Mounting Assembly ACT104. Included are a Trunnion Block - ACT140 - with a size of 100 x 70 x 25mm, (2) 13mm holes, and a Ø28mm center thru hole, as well as a Trunnion Bearing - ACT124 - featuring an 18mm inner diameter, 32.07mm outer diameter, and 23mm thickness. Upgrade now and experience the revolutionizing capabilities of the ACT104 Assembly!
Full Description

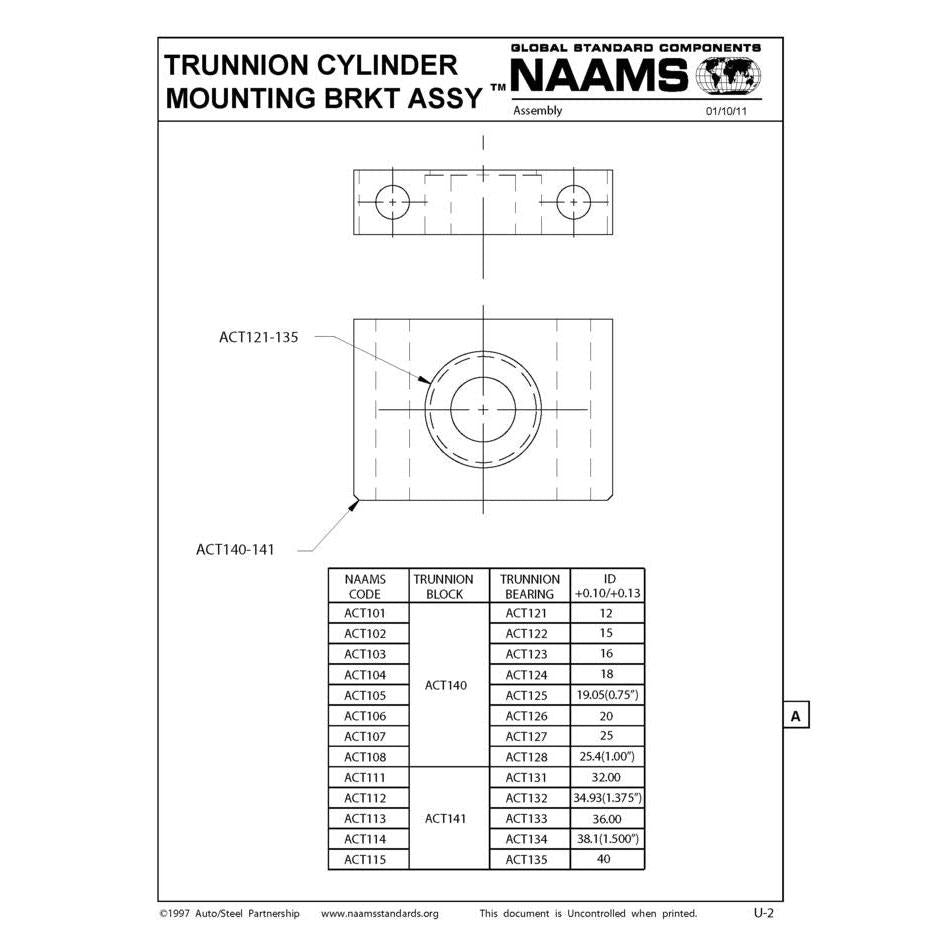

FREER NAAMS CYLINDER MOUNTING ASSEMBLY ACT104
Assembly Comes with:

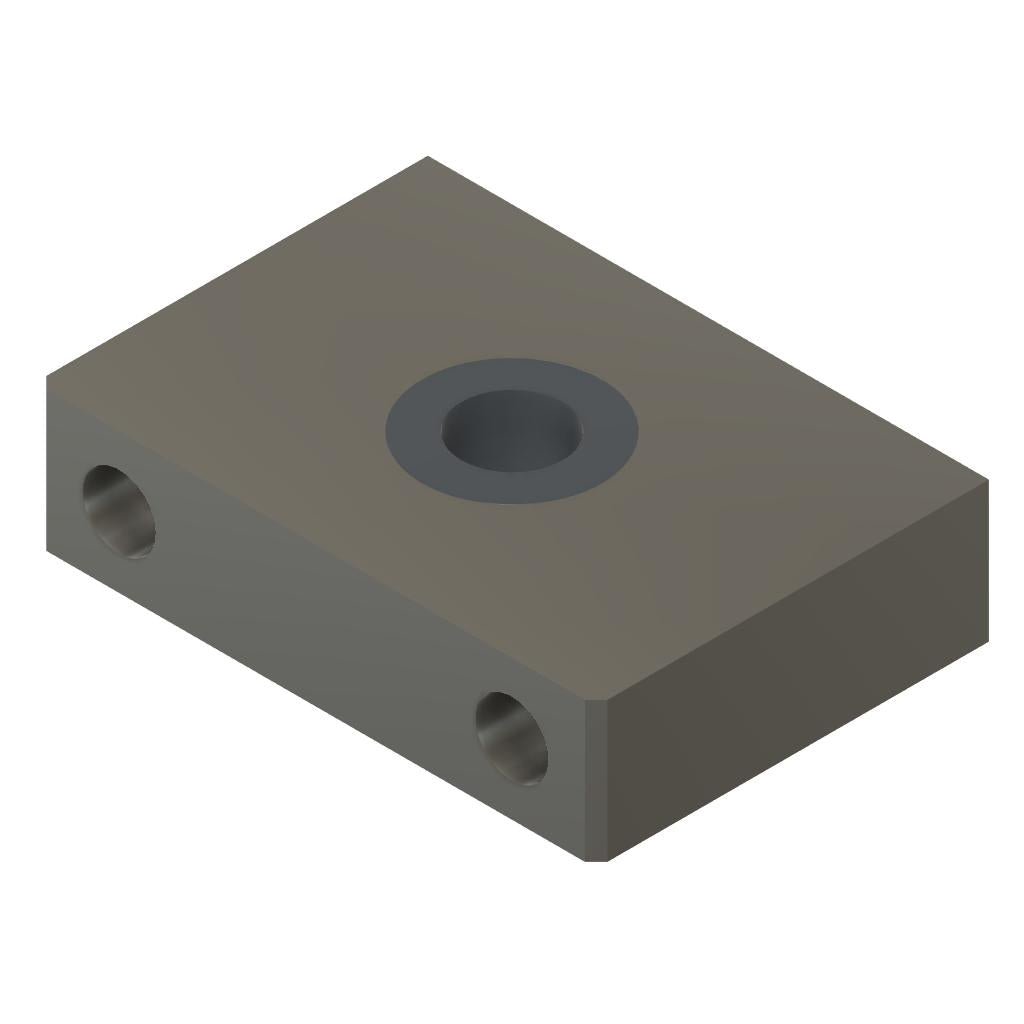

Trunnion Block - ACT140 - 100 x 70 x 25mm - (2) 13mm holes - (1) Ø28mm center thru hole
Trunnion Bearing - ACT124 - I.D. 18mm - O.D. 32.07mm - 23mm thickness
