Brand: FREER NAAMS
NAAMS Cylinder Mounting Assembly ACT103
SKU: FN-ACT103
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Transform your assembly process with the ACT103 NAAMS Cylinder Mounting Assembly! This versatile set includes a Trunnion Block (ACT140) measuring 100 x 70 x 25mm and featuring (2) 13mm holes and a Ø28mm center thru hole, as well as a Trunnion Bearing (ACT123) with an inner diameter of 16mm, outer diameter of 32.07mm, and thickness of 23mm. Experience enhanced productivity and precision with this essential component set!
Full Description

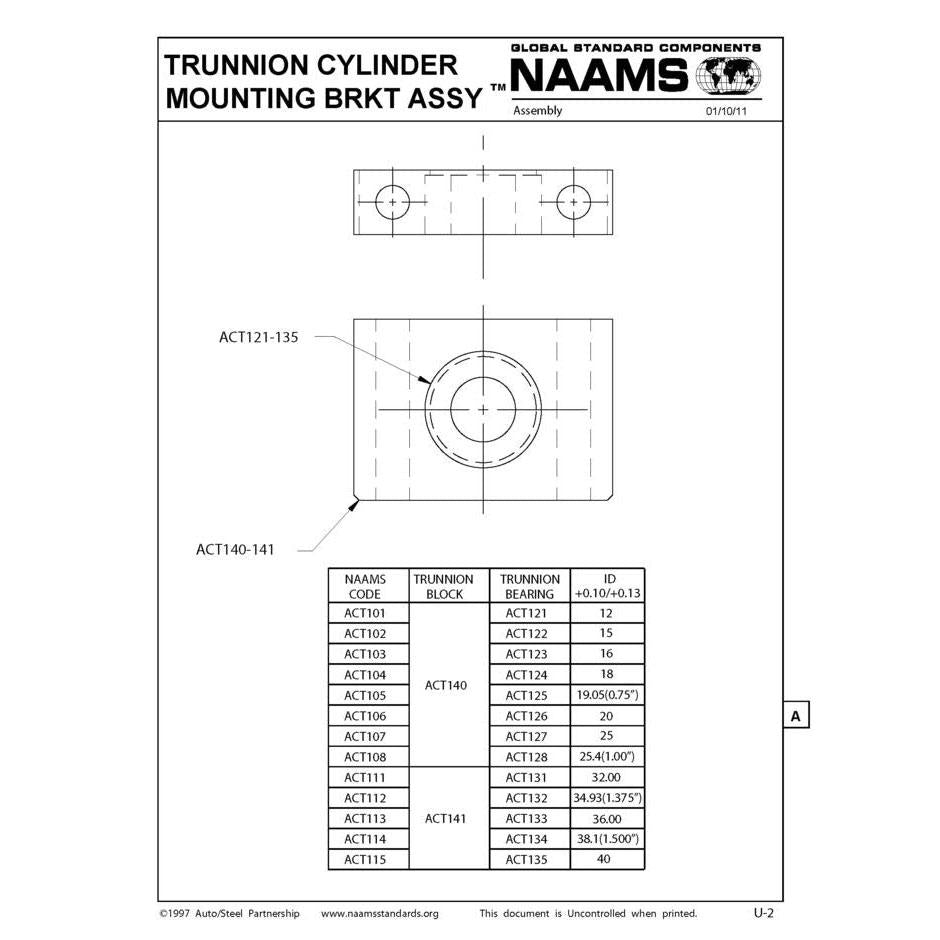

FREER NAAMS CYLINDER MOUNTING ASSEMBLY ACT103
Assembly Comes with:
Trunnion Block - ACT140 - 100 x 70 x 25mm - (2) 13mm holes - (1) Ø28mm center thru hole
Trunnion Bearing - ACT123 - I.D. 16mm - O.D. 32.07mm - 23mm thickness
