Brand: FREER NAAMS
NAAMS Cylinder Mounting Assembly ACT102
SKU: FN-ACT102
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Experience the ultimate convenience and efficiency with the NAAMS Cylinder Mounting Assembly ACT102. This assembly includes a Trunnion Block - ACT140 - 100 x 70 x 25mm with (2) 13mm holes and (1) Ø28mm center thru hole, as well as a Trunnion Bearing - ACT122 - I.D. 15mm - O.D. 32.07 - 23mm thickness. Upgrade your assembly process now!
Full Description

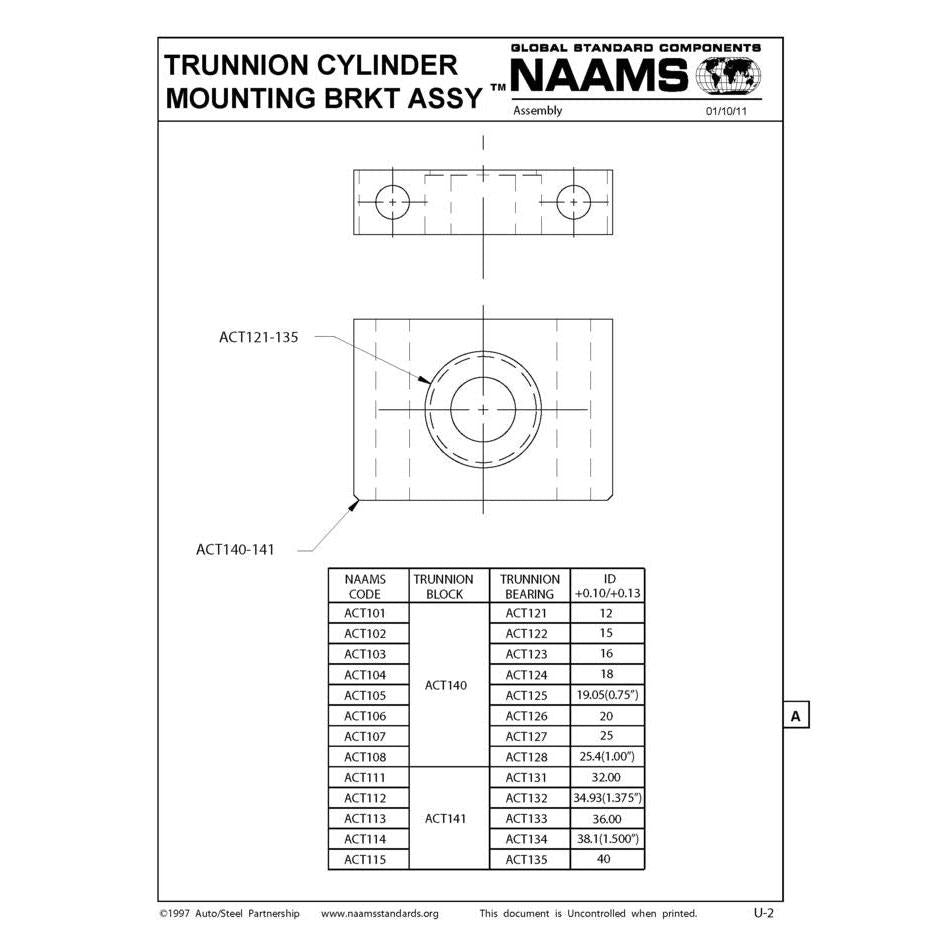

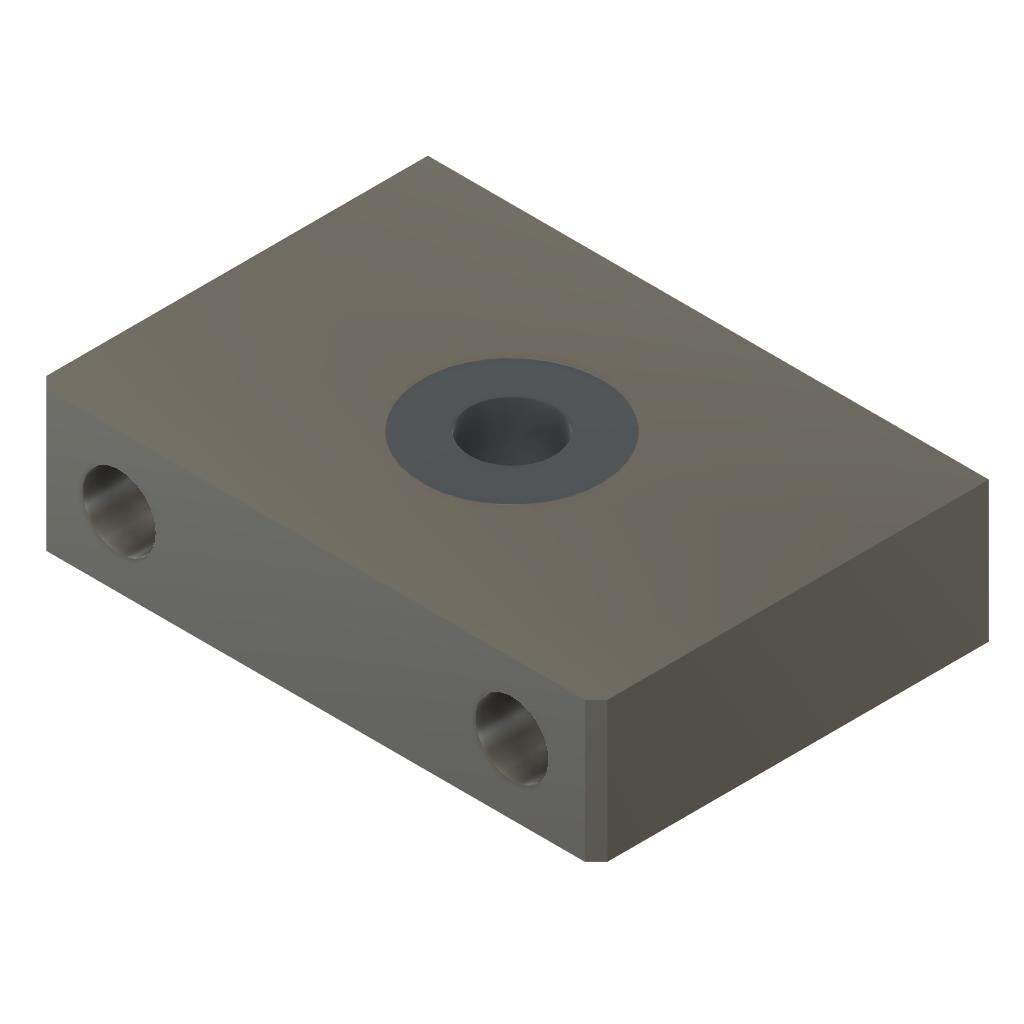

FREER NAAMS CYLINDER MOUNTING ASSEMBLY ACT102
Assembly Comes with:
Trunnion Block - ACT140 - 100 x 70 x 25mm - (2) 13mm holes - (1) Ø28mm center thru hole
Trunnion Bearing - ACT122 - I.D. 15mm - O.D. 32.07 - 23mm thickness
