ACE Controls SC300-3 Miniature Shock Absorbers 195-0004

ACE Controls SC300-3 Miniature Shock Absorbers 195-0004

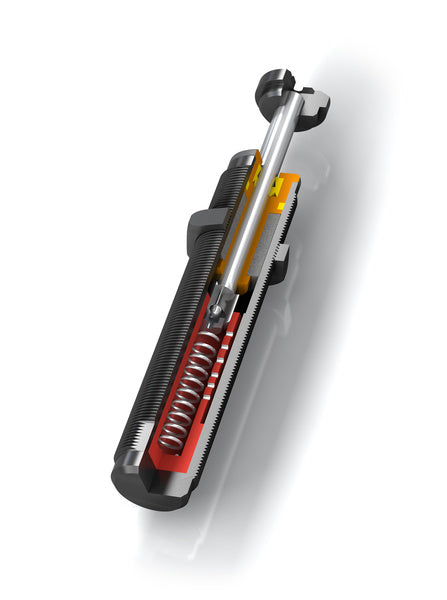

Miniature Shock Absorbers SC300-3Long stroke and soft impactSelf-Compensating, Soft-ContactEnergy capacity 300 in-lbs/cycleStroke 0.75 inchIdeal for soft damping: the SC found in the model code from the ACE product family SC190 to SC925 stands for 'soft contact'. These miniature shock absorbers manufactured from one solid piece are designed in such a way that they can be setup with a linear or a progressive braking curve. The soft damping character is thanks to the special, long strokes which produce smooth deceleration and low reaction forces. These maintenance-free, ready-to-install hydraulic machine elements are equipped with an integrated positive stop. The use of side load adapter allows impact angles of up to 25°. Thanks to the designed overlapping effective weight ranges, these dampers cover an effective load range of 3 lbs. to 4,400 lbs! Self-compensating shock absorbers react to changing energy conditions, without adjustment.These miniature self-compensating shock absorbers from the SC190 to SC925 product family are used in industrial, automation and machine engineering and primarily in the areas of handling and automation.

Stroke: 0.75 inchM: 3/4-16 UNF inch

Energy capacity: 300 in-lbs/cycle Energy capacity: 400,000 in-lbs/h Effective weight min. (self-compensating): 30 lbs Effective weight max. (self-compensating): 180 lbs Effective weight min. (soft contact): 50 lbs Effective weight max. (soft contact): 150 lbs Hardness: -3 Return Force min.: 1.05 lbs Return Force max.: 2.15 lbs Return Time: 0.1 s Side Load Angle max.: 5 ° Impact velocity range: 0.5 ft/sec to 12 ft/sec. Other speeds on request. Operating temperature range: 32 °F to 150 °F Mounting: In any position Positive stop: Integrated Material: Outer body, Accessories: Steel corrosion-resistant coating; Piston rod: Hardened stainless steel Damping medium: Oil, temperature stable
