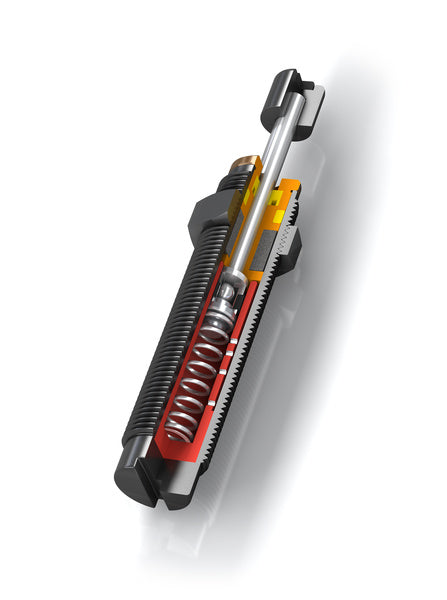

Miniature Shock Absorbers MC75-2Shock absorbers in miniature formatSelf-CompensatingEnergy capacity 75 in-lbs/cycleStroke 0.40 inchIdeal for compact, efficient designs: The miniature size of the product family MC5 to MC75 delivers very short overall lengths and low return forces. The outer body of each shock, produced from one solid piece, is filled with temperature stable oil, offers a continuous outer body thread including a supplied lock nut and also has an integrated positive stop. These maintenance-free hydraulic machine elements from ACE are ready for immediate installation. A wide range of energy absorption and effective weight are further benefits in these compact units. Self-compensating shock absorbers react to changing energy conditions, without adjustment. These self-compensating miniature shock absorbers are perfectly suited to use in applications such as rotary actuators, automation, light industrial manufacturing, material handling and packaging equipment, medical, electronics and robotics.

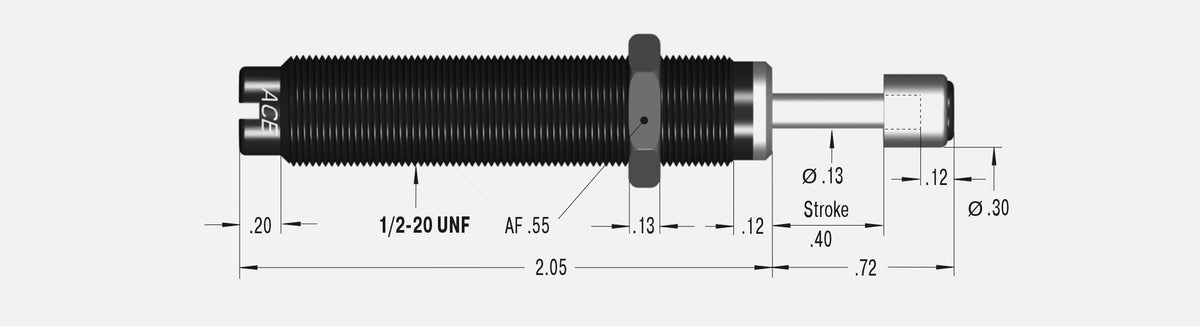

Stroke: 0.40 inchM: 1/2-20 UNF inch

Energy capacity: 75 in-lbs/cycle Energy capacity: 250,000 in-lbs/h Effective weight min.: 2 lbs Effective weight max.: 14 lbs Hardness: -2 Return Force min.: 1.0 lbs Return Force max.: 2.5 lbs Return Time: 0,3 s Side Load Angle max.: 2 ° Impact velocity range: 0.5 ft/sec to 12 ft/sec Operating temperature range: 14 °F to 150 °F Mounting: In any position Positive stop: Integrated Material: Outer body, Accessories: Steel corrosion-resistant coating; Piston rod: Hardened stainless steel; Rod end button: Steel, MC25 and MC75: Elastomer Insert; Locknut: Steel, MC5 and MC9: Aluminium Damping medium: Oil, temperature stable
