Brand: ACE Controls
ACE Controls MC3350-2 Industrial Shock Absorbers 216-0006
SKU: ACE-MC 3350-2
MPN:
In-Stock: 2
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
ACE Controls MC3350-2 Industrial Shock Absorbers 216-0006

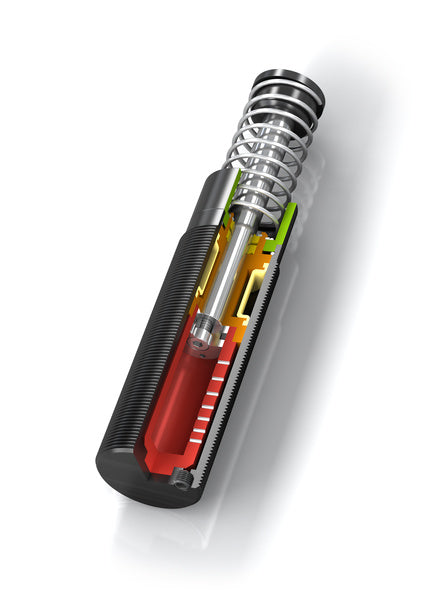

Industrial Shock Absorbers MC3350-2High energy absorption and robust designSelf-CompensatingEnergy capacity 2,920 in-lbs/cycleStroke 1.91 inchThe latest damper technology: The combination of the latest sealing technology, annealed guide bearing and integrated positive stop make these self-compensating shock absorbers from ACE'S MAGNUM range so successful. After all, users benefit from the longer service life of the products, even in the most difficult environments. A continuous outer thread and extensive accessories make their contribution to the success story of the MC33 to MC64. High energy absorption in a compact design and a wide damping range lead to huge advantages in practice. Alongside generally more compact designs, these small yet very powerful absorbers enable full use of the machine's performance. Self-compensating shock absorbers react to changing energy conditions, without adjustment.

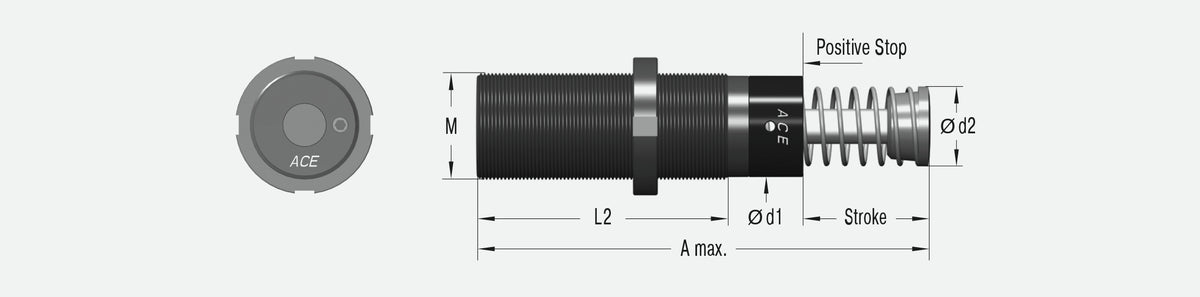

Stroke: 1.91 inchA max.: 7.44 inchL2: 4.25 inchM: 1-1/4-12 UNF inchd1: 1.15 inchd2: 1.00 inch
Energy capacity: 2,920 in-lbs/cycle Energy capacity: 760,000 in-lbs/h Energy capacity with oil recirculation: 1,600,000 in-lbs/h Energy capacity with air/oil tank: 1,200,000 in-lbs/h Effective weight min.: 136 lbs Effective weight max.: 544 lbs Hardness: -2 Return Force max.: 30.3 lbs Return Force min.: 9.9 lbs Return Time: 0.06 s Side Load Angle max.: 3 ° Impact velocity range: 0.5 ft/sec to 16.5 ft/sec. Other speeds on request. Operating temperature range: 10 °F to 150 °F. Other temperatures on request. Mounting: In any position Positive stop: Integrated Material: Outer body: Nitride hardened steel; Piston rod: Hard chrome plated steel; Rod end button: Hardened steel and corrosion-resistant coating; Return spring: Zinc plated or plastic-coated steel; Accessories: Steel with black oxide finish or nitride hardened Damping medium: Automatic Transmission Fluid (ATF)
