Brand: ACE Controls

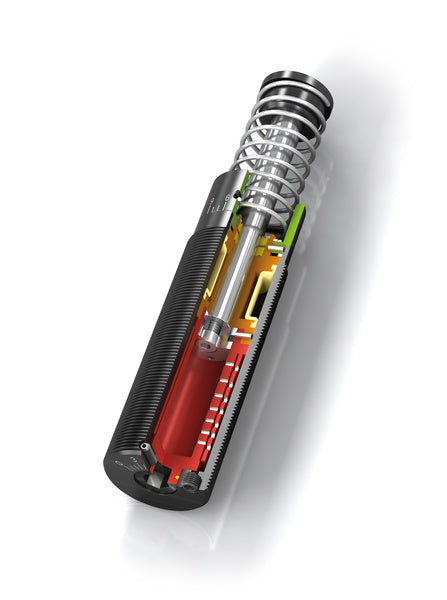

ACE Controls MA4525M Industrial Shock Absorbers 207-0004
SKU: ACE-MA 4525M
MPN:
In-Stock: 2
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
ACE Controls MA4525M Industrial Shock Absorbers 207-0004
Industrial Shock Absorbers MA4525MHigh energy absorption and progressive adjustmentAdjustable Energy capacity 3,762 in-lbs/cycleStroke 0.91 inchAdjustable and unique: These industrial shock absorbers from ACE, which can be precisely adjusted both at the front and rear, also contribute towards the success of the MAGNUM range. Equipped with excellent sealing technology, an annealed guide bearing and integrated positive stop, they are robust and durable. These dampers absorb 50 % more energy than their predecessors but are built even more compactly. The larger range of effective loads also opens up options in design and assembly. This makes the ML range especially suitable for effective weights of 661 lbs. to 1,102,311 lbs. (300 kg to 500,000 kg). These shocks are the best option wherever application data changes and flexibility is required.
Stroke: 0.91 inchA max.: 5.69 inchL2: 3.72 inchM: M45x1.5 inchd1: 1.65 inchd2: 1.38 inch
Energy capacity: 3,762 in-lbs/cycle Energy capacity: 950,000 in-lbs/h Energy capacity with oil recirculation: 1,700,000 in-lbs/h Energy capacity with air/oil tank: 1,400,000 in-lbs/h Effective weight min.: 95 lbs Effective weight max.: 22,000 lbs Return Force max.: 22.8 lbs Return Force min.: 15.1 lbs Return Time: 0.03 s Side Load Angle max.: 4 ° Impact velocity range: MA: 0.5 ft/sec to 16.5 ft/sec. ML: 0.06 ft/sec to 1.5 ft/sec. Other speeds on request. Operating temperature range: 10 °F to 150 °F. Other temperatures on request. Mounting: In any position Positive stop: Integrated Adjustment: Hard impact at the start of stroke, adjust the ring towards 9. Hard impact at the end of stroke, adjust the ring towards 0. Material: Outer body: Nitride hardened steel; Piston rod: Hard chrome plated steel; Rod end button: Hardened steel and corrosion-resistant coating; Return spring: Zinc plated or plastic-coated steel; Accessories: Steel with black oxide finish or nitride hardened Damping medium: Automatic Transmission Fluid (ATF)
