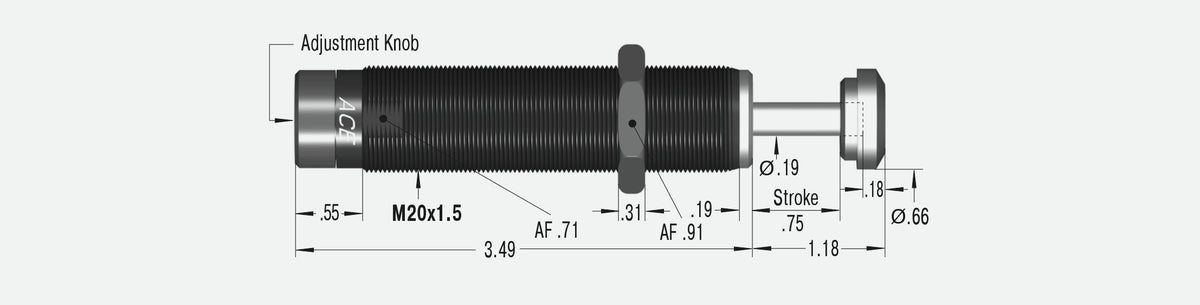

ACE Controls MA225M Miniature Shock Absorbers 171-0002

ACE Controls MA225M Miniature Shock Absorbers 171-0002

Miniature Shock Absorbers
MA225M Stepless adjustment Adjustable
Energy capacity 300 in-lbs/cycle
Stroke 0.75 inch
The miniature shock absorbers from the MA30 to MA900 product family can be adjusted and precisely adapted to your requirements. For example, the MA150 displays the rolling diaphragm technology from the MC150 to MC600 family and offers all of the advantages of this technology, such as use in pressure chambers. Thanks to long strokes (including 1.57 in on the MA900) lower reaction forces result, which provide a soft damping characteristic.
All variations of these units are maintenance-free, ready-to-install machine elements and have an integrated positive stop. They provide the best service where application data changes, where the calculation parameters are not clear or where maximum flexibility in the possible usage is required.
These adjustable miniature shock absorbers from ACE can be used to precisely meet the customer's application needs and are therefore found everywhere in industrial, automation and machine engineering and many other applications.

Stroke: 0.75 inch
M: M20x1.5 inch

Energy capacity: 300 in-lbs/cycle
Energy capacity: 400,000 in-lbs/h
Effective weight min.: 5 lbs
Effective weight max.: 500 lbs
Return Force min.: 1.05 lbs
Return Force max.: 2.15 lbs
Return Time: 0.1 s
Side Load Angle max.: 2 °
Impact velocity range: 0.5 ft/sec to 12 ft/sec
Operating temperature range: 32 °F to 150 °F
Mounting: In any position
Positive stop: Integrated
Adjustment: Hard impact at the start of stroke, adjust the ring towards 9 or PLUS. Hard impact at the end of stroke, adjust the ring towards 0 or MINUS.
Material: Outer body, Accessories: Steel corrosion-resistant coating; Piston rod: Hardened stainless steel
Damping medium: Oil, temperature stable
