Brand: DESTACO
DESTACO CPI-240-25-TSA 240 to 290 mm swivel arm 25mm bore
SKU: DE-STA-CO-CPI-240-25-TSA
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO CPI-240-25-TSA 240 to 290 mm swivel arm 25mm bore - a versatile and high-performance solution for all your automation, workholding, and containment needs! With a 50.8 mm linear extension and 360 degrees of rotational adjustment along three axes, this arm allows for precise and customizable positioning. It even enables you to mount venturi, bumpers, round locators, and proximity switches, thanks to its 19.1 mm (0.75") apple core accessories to 25 mm round tube compatibility. Made of durable and stylish aluminum with a blue finish, this arm can handle a maximum static clamp load of 190 Nm (140 ft lb). Don't miss out on the endless possibilities with this extendable arm!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-240-25-TSA 240 to 290 mm swivel arm 25mm bore

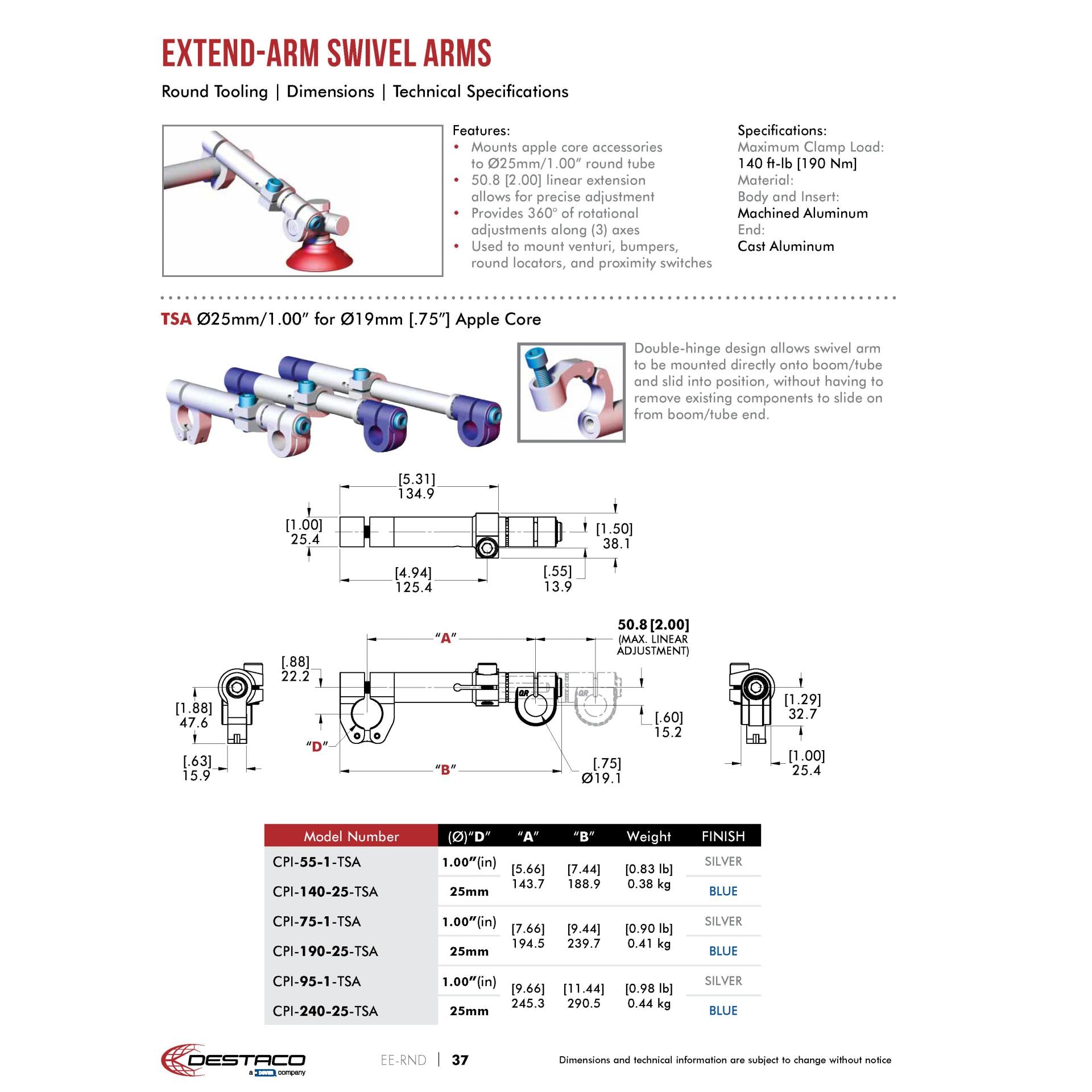

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts 19.1 mm (0.75") apple core accessories to 25 mm round tube
- 50.8 mm linear extension allows for precise adjustment
- Provides 360‚° of rotational adjustments along (3) axes
- Used to mount venturi, bumpers, round locators, and proximity switches
Apple Core (mm) | 19.0 |
Apple Core (in) | 0.750 |
Tube Diameter (mm) | 25 |
Tube Diameter (in) | 0.98 |
Length (mm) | 245.3 |
Length (in) | 9.660 |
Material | Aluminum |
Finish | Blue |
Maximum Static Clamp Load (Nm) | 190 |
Maximum Static Clamp Load (ft lb) | 140 |
Product Type | Swivel Arm, "Extend Arm" |
Tube Size | 25 mm |
Maximum Linear Adjustment (mm) | 50.8 |
Maximum Linear Adjustment (in) | 2.00 |
Weight (kg) | 0.44 |
Weight (lb) | 0.98 |
Product Series Description | Swivel Arm |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | round tooling |
Apple Core Size | 19 |
