Brand: Carver Clamps

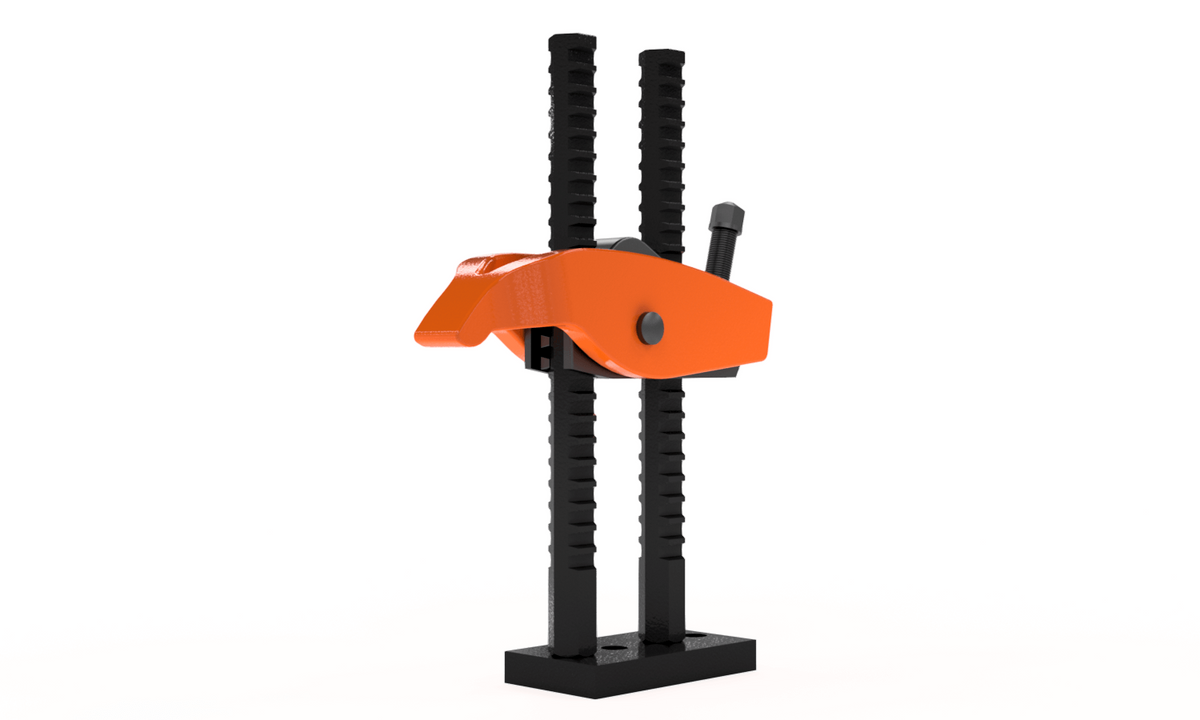

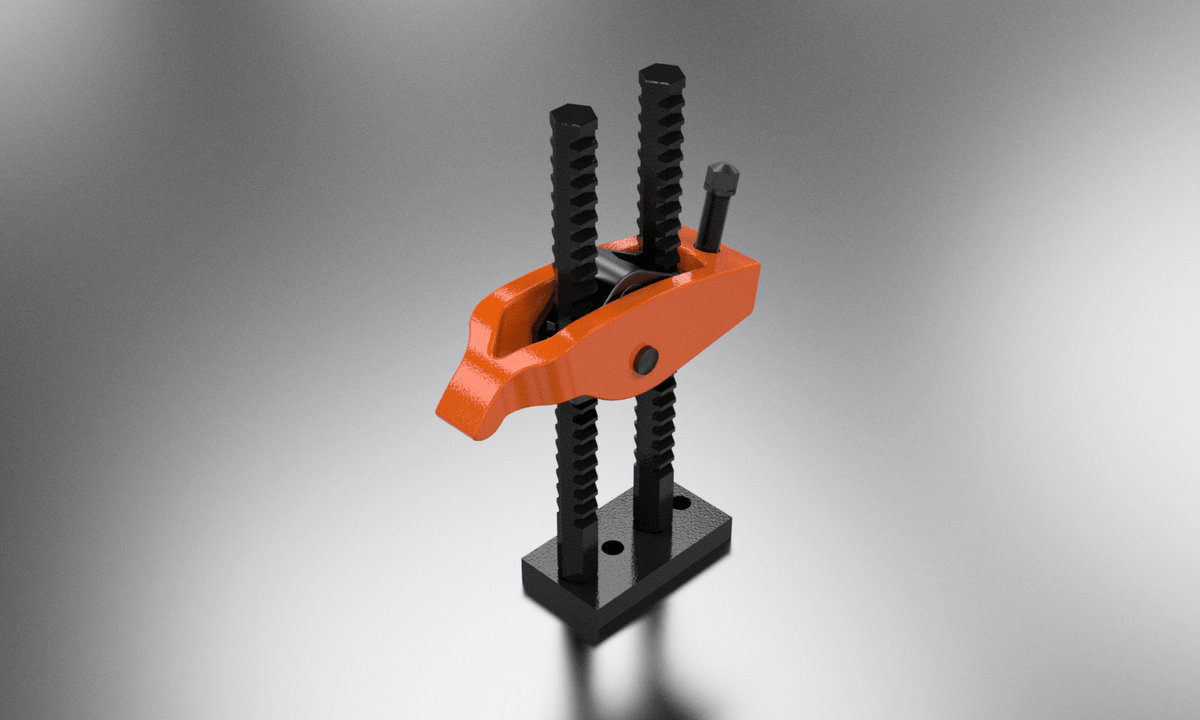

T402-18 Heavy Duty 450mm T Slot Clamp
SKU: CC-T402-450
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Carver Assembly Information | ||
---|---|---|
T402-18 is made up of the parts listed below | ||
Part Number | Qty in Assembly | In-Stock |
T402-18-1 | 1 | 11 |
T402-2 | 1 | 7 |
Short Description
T402-18 Heavy Duty 450mm T Slot ClampCarver Part Number: C301219.
Reference Destaco Number: T402-18.
Carver T-Slot Clamps Catalog
Carver Spare Parts Catalog
*This product has limited inventory. Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
T402-18 Heavy Duty 450mmT Slot Clamp
Carver Part Number: C301219.
Reference Destaco Number: T402-18.
Model No. | Part No. | Alternative Model No. | Clamping Height | Reach mm (Inch) |
Weight kg |
A mm |
A1 mm |
B mm |
B1 mm |
B2 mm |
B3 mm |
B4 mm |
S | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
mm (Inch) | mm (Inch) | |||||||||||||
T400-4 | C301213 | T400-100 | 25 (1) | 100 (4) | 19 (3/4) OR with base reversed 35 (1.5/8) |
2.3 | 51 | 13 A/F Hex | 16 | 162 | 54 | 96.25 | 31.75 | For M12 bolt |
T400-6 | C301227 | T400-150 | 25 (1) | 150 (6) | 2.5 | |||||||||
T400-8 | C301228 | T400-200 | 62 (2.1/2) | 200 (8) | 2.6 | |||||||||
T600-4 | C301214 | T600-100 | 12 (1/2) | 100 (4) | 57 (2.1/4) OR with base reversed 73 (2.7/8) |
2.7 | 51 | 13 A/F Hex | 16 | 200 | 54 | 96.25 | 31.75 | For M12 bolt |
T600-6 | C301215 | T600-150 | 12 (1/2) | 150 (6) | 2.9 | |||||||||
T600-8 | C301216 | T600-200 | 50 (2) | 200 (8) | 3 | |||||||||
T402-6 | C301217 | T402-150 | 0 (0) | 150 (6) | 44 (1.3/4) OR with base reversed 66 (2.5/8) |
6.3 | 76 | 19 A/F Hex | 19 | 249 | 71 | 140 | 54 | For M16 bolt |
T402-12 | C301218 | T402-300 | 0 (0) | 300 (12) | 8 | |||||||||
T402-18 | C301219 | T402-450 | 150 (6) | 450 (18) | 8.8 | |||||||||
T402-24 | C301220 | T402-600 | 300 (12) | 600 (24) | 10 | |||||||||
T402-30 | C301221 | T402-750 | 450 (18) | 750 (30) | 11.7 | |||||||||
T402-36 | C301222 | T402-900 | 600 (24) | 900 (36) | 13 | |||||||||
T402-42 | C301223 | T402-1050 | 750 (30) | 1050 (42) | 14.5 | |||||||||
T402-48 | C301224 | T402-1200 | 900 (36) | 1200 (48) | 15.7 | |||||||||
T402-54 | C301225 | T402-1350 | 1050 (42) | 1350 (54) | 16.7 | |||||||||
T402-60 | C301226 | T402-1500 | 1200 (48) | 1500 (60) | 18.5 | |||||||||
T602-6 | C301229 | T602-150 | 0 (0) | 150 (6) | 95 (3.3/4) OR with base reversed 117 (4.3/8) |
7.3 | 76 | 19 A/F Hex | 19 | 308 | 71 | 140 | 54 | For M16 bolt |
T602-12 | C301230 | T602-300 | 0 (0) | 300 (12) | 9 | |||||||||
T602-18 | C301231 | T602-450 | 150 (6) | 450 (18) | 9.8 | |||||||||
T602-24 | C301232 | T602-600 | 300 (12) | 600 (24) | 11 | |||||||||
T602-30 | C301233 | T602-750 | 450 (18) | 750 (30) | 12.7 | |||||||||
T602-36 | C301234 | T602-900 | 600 (24) | 900 (36) | 14 | |||||||||
T602-42 | C301235 | T602-1050 | 750 (30) | 1050 (42) | 15.5 | |||||||||
T602-48 | C301236 | T602-1200 | 900 (36) | 1200 (48) | 16.7 | |||||||||
T602-54 | C301237 | T602-1350 | 1050 (42) | 1350 (54) | 17.7 | |||||||||
T602-60 | C301238 | T602-1500 | 1200 (48) | 1500 (60) | 19.5 |
