Brand: Iscar

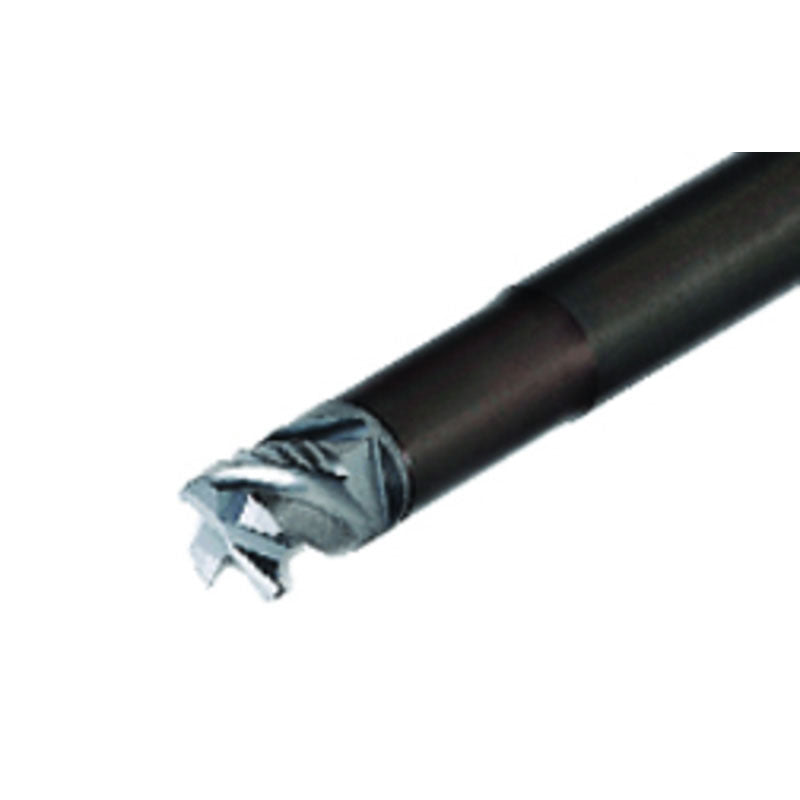

Iscar EH3103196 MM S-A-L4.00-C.625-T10

SKU: FTS-EH3103196
MPN: 3103196

$153.80
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Iscar 3103196 MM S-A-L4.00-C.625-T10

Full Description

Connection Thread Nominal Size Workpiece Side (THSZWS)	T10	Body Length (LB)	0.68"
Connection Diameter Machine Side (DCONMS)	5/8"	Weight of Item (WT)	0.37 Lbs
Overall Length (OAL)	4"	Measurement Type	Inch
Body Length Maximum (LBX)	0.8"	Rotational Speed Maximum (RPMX)	39000 Rev/min
Coolant Supply Property (CSP)	External	Body Material	Steel
Tool Type	Cylindrical Shanks	Connection Code Machine Side (CCMS)	Cylindrical
Body Diameter (BD)	0.602"

Family Description

MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes.

For adaptation click on "More Info" Do not apply lubricant to the threaded connection
