Brand: Raptor Workholding Products

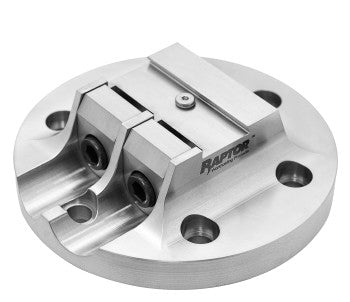

Raptor RWP-038SS Stainless Steel 0.75"Dovetail Fixture 3.267" Dia. BC
SKU: RPT-RWP-038SS
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Raptor product orders*
Short Description
Raptor RWP-038SS Stainless Steel 0.75"Dovetail Fixture 3.267" Dia. BCFull Description
Dovetail Width in. | 0.750 |
---|---|
Dovetail Height in. | 0.1250 |
Max Workpiece Weight lb. | 12 |
Max Workpiece Width in. | 5.00 |
Max Workpiece Length in. | 5.00 |
Max Workpiece Height in. | 5.00 |
Fixture Material | Stainless Steel |
Number of Clamps | 2 |
Clamp Part Number | RWP-CL302SQ |
Fixture Height in. | 1.3 |
This fixture is designed to connect directly to the HAAS HRT110 4-Axis Rotary Table, HAAS TR110 5-axis Trunnion Rotary Table or the HAAS TRT100 Compact Dual Axis Rotary Table for milling applications. It can also be utilized in other machines when connected with an adapter or riser. It offers superior clamping strength while allowing access to five sides of the workpiece.
The standard RWP-038SS is manufactured from 17-4 heat treated stainless steel.
The fixture clamps are made from 17-4 Stainless Steel.
Fixture and mounting screws combined weight: 2 lbs / 12.3 oz
Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece– Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8? of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient.
Typical workpiece size dimensions (L x W x H): From: 2.00? x 1.75? x 0.50? To: 5.0 ” x 5.0? x 5.0?
** Note: platter weight restrictions using Haas TRT100 -> please refer to Haas indexer recommendation.
Watch Haas video TRT100 with RWP-015, an alternative 0.75? dovetail fixture, only difference is it’s aluminum & slightly taller.
Patented Design. Patent US8,672,310 B2
HAVE AN EDM APPLICATION?
Use Raptor’s Stainless Steel Dovetail Fixtures
Our stainless steel fixtures and clamps are made from 17-4 stainless steel; Heat Treat: H-1150 / Rockwell Hardness Approximate 28.
One-Step Setup
Switch from a standard application to an EDM application in a single step: Simply substitute the clamping system socket head cap screws from alloy steel to stainless steel.
