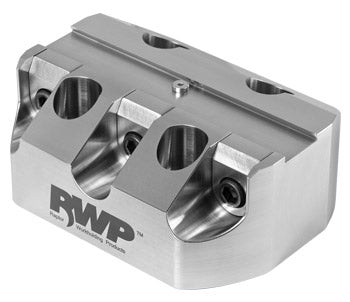

Raptor RWP-034SS Stainless Steel 0.75"Dovetail Fixture 3.0" Dia. BC
SKU: RPT-RWP-034SS
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Raptor product orders*
Short Description
Raptor RWP-034SS Stainless Steel 0.75"Dovetail Fixture 3.0" Dia. BCFull Description
Dovetail Width in. | 0.750 |
---|---|
Dovetail Height in. | 0.1250 |
Max Workpiece Weight lb. | 40 |
Max Workpiece Width in. | 7.50 |
Max Workpiece Length in. | 7.50 |
Max Workpiece Height in. | 7.50 |
Fixture Material | Stainless Steel |
Number of Clamps | 3 |
Clamp Part Number | RWP-CL302SQ |
Fixture Height in. | 2.000 |
This fixture is designed to connect directly to the Makino A51NX-5XU for milling applications. It can also be utilized in other machines when connected with an adapter or riser, it has a bolt circle dia: 3.00?. The product design, with three clamps, provides versatility to either machine one long workpiece or three smaller workpieces. It offers superior clamping strength while allowing access to five sides of the workpiece.
The standard RWP-034SS is manufactured from 17-4 Stainless Steel.
The fixture clamps are made from 17-4 Stainless Steel.
Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8? of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient.
* Typical long workpiece size dimensions (L x W x H): From: 5.0? x 1.75? x 0.50? To: 7.50? x 7.50? x 7.50?
Patented Design. Patent US8,672,310 B2
HAVE AN EDM APPLICATION?
Use Raptor’s Stainless Steel Dovetail Fixtures
Our stainless steel fixtures and clamps are made from 17-4 stainless steel; Heat Treat: H-1150 / Rockwell Hardness Approximate 28.
One-Step Setup
Switch from a standard application to an EDM application in a single step: Simply substitute the clamping system socket head cap screws from alloy steel to stainless steel.
