Brand: Kipp
KIPP K0583.60 DOUBLE BALL CATCH, L=60, B=11, H=13,2, A=50, BRASS CHROMED, COMP:BALL STAINLESS STEEL
SKU: KP-K0583.60
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

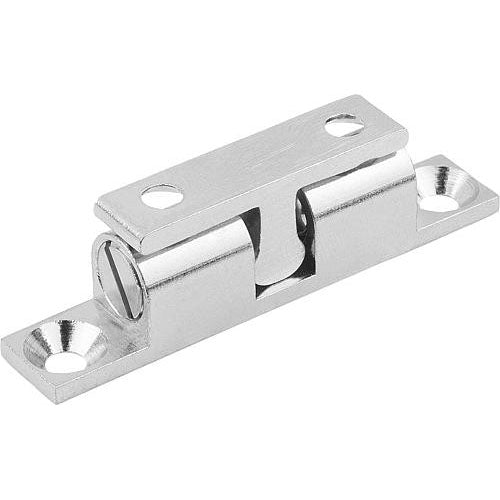

Double ball catches

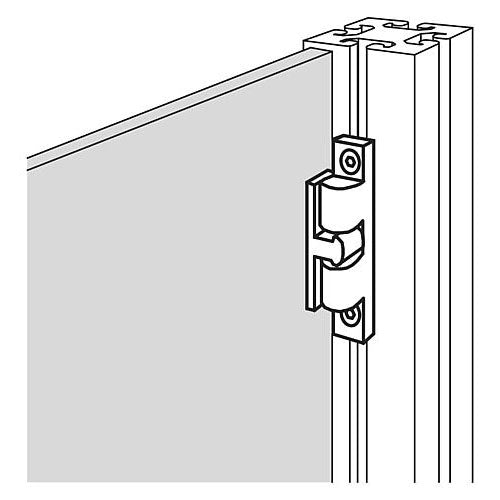

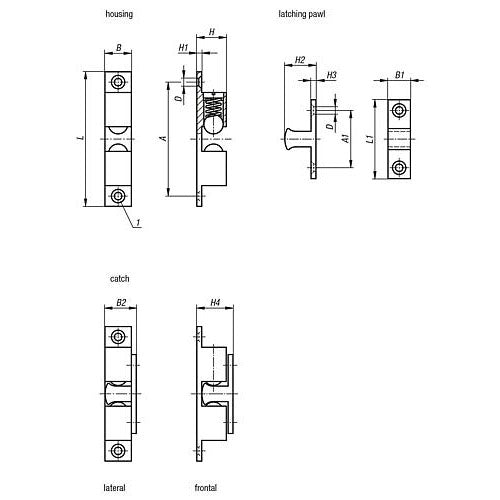

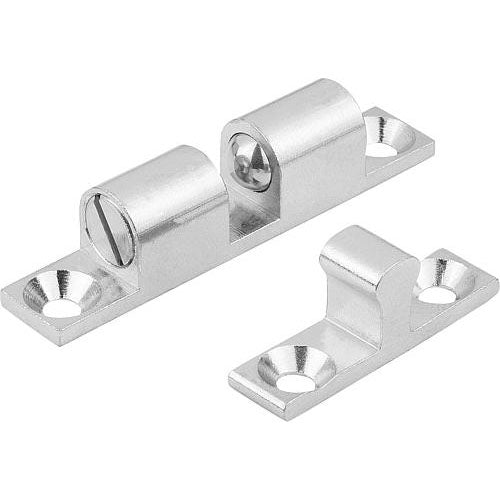

Material: Type: Brass and die-cast zinc chromed. Stainless steel abrasive blasted. Balls and springs bright stainless steel. Part Number Example: K0583.50 Note: Quick catch for various applications such as holding doors, hatches, screens etc. closed. The double ball catch consists of a housing and a latch bracket that engages between the two balls. The latch bracket can engage from the front or the side. The engagement pressure is adjustable. Drawing reference: 1) counterbore DIN 74-A
Main Material: | Brass |
Item: | Double Ball Catch |
Rohs: | Yes |
A: | 50 |
A1: | 24 |
B: | 11 |
B1: | 9 |
B2: | 13.5 |
D: | 4.8 |
Spring Strength: | Standard |
H: | 13.2 |
H1: | 2.4 |
H2: | 13.5 |
H3: | 2.2 |
H4: | 15.9 |
Clamping Force Ca. N: | 30±7 |
L: | 60 |
L1: | 36 |
