Brand: Kipp
KIPP K0582.12 SPRING PLUNGER SPRING FORCE, WITH DETENT RING, D=11,95 L=13,5, STAINLESS STEEL, COMP:BALL STAINLESS STEEL, PU=10
SKU: KP-K0582.12
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

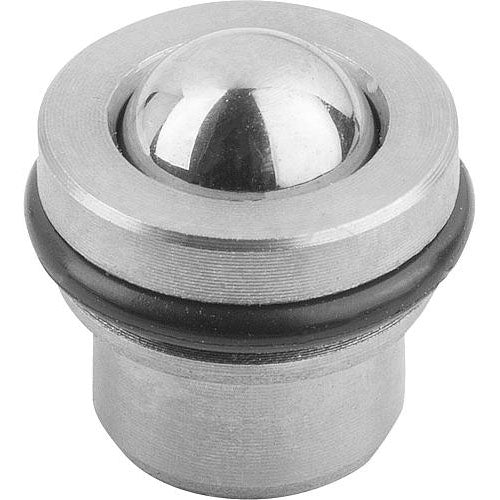

Spring Plungers push fit, with o-ring seal
Material: Body, spring and ball stainless steel. O-ring NBR Type: Body bright. Ball hardened, bright. O-ring black. Part Number Example: K0582.05 Note: These Spring Plungers with O-ring are suitable for overhead installation or for installing in difficult to access positions. They can be pressed into the location hole by hand or using simple assembly tools. The O-ring holds the plunger in place and prevents it falling out. Other components can be easily installed without the need for further assembly aids.
Main Material: | Stainless Steel |
Version 1: | With Detent Ring |
Item: | Spring Plunger |
Rohs: | Yes |
Packaging Unit: | 10 |
Pin Style: | Ball |

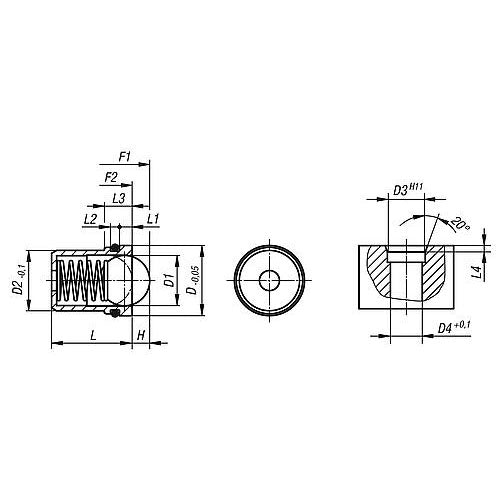

D: | 11.95 |
D1: | 8 |
D2: | 10 |
D3: | 12 |
D4: | 10.1 |
Spring Strength: | Standard |
Spring Force Initial Pressure F1 Approx. N: | 10 |
Spring Force Final Pressure F2 Approx. N: | 20 |
H: | 2.7 |
L: | 13.5 |
L1: | 2.5 |
L2: | 1.8 |
L3: | 5.3 |
L4: | 2 |
