Brand: Kipp
KIPP K0368.71084 LATERAL SPRING PLUNGER, SPRING FORCE WITHOUT SEAL D=12, D2=12, L1=13,9, ALUMINIUM, COMP:POLYACETAL
SKU: KP-K0368.71084
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

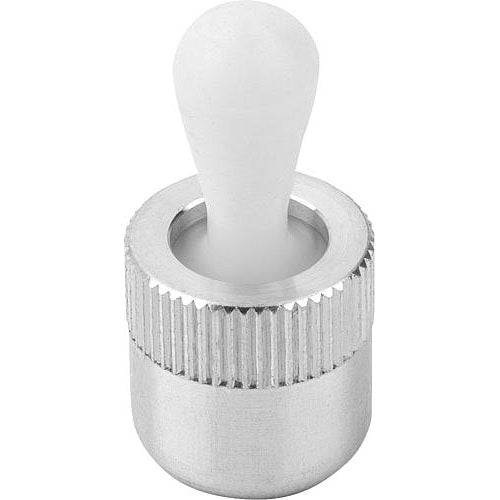

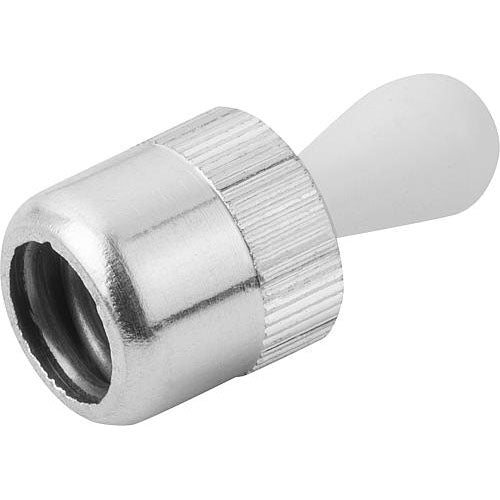

Lateral Spring Plungers without seal, pressure pin in plastic,spring in steel, metric

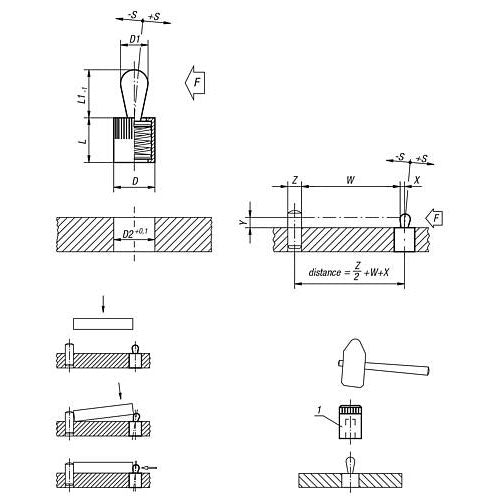

Material: Body in aluminum; spring in steel; pressure pin in plastic Version: body blue galvanized Note: Lateral spring plungers are for positioning, clamping, holding and securing workpieces and parts for engraving, labelling, drilling, reaming, tapping, honing, grinding, welding, soldering, assembling, mounting etc. Suitable eccentric adjustment bush see K0369. W and Z are customer specified.
Main Material: | Aluminum |
Version 1: | Without Seal |
Item: | Lateral Spring Plunger |
Rohs: | Yes |
D: | 12 |
D1: | 8 |
D2: | 12 |
F Ca.N: | 50 |
L: | 13 |
L1: | 13.9 |
X If Y = 6: | 2.5 |
X If Y = 8: | 2.7 |
±S: | 1.3 |
