Brand: Kipp

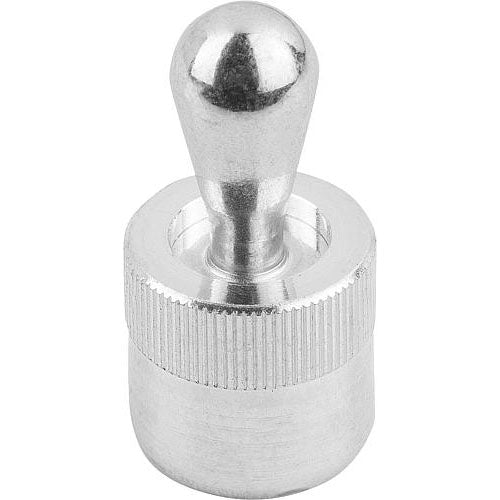

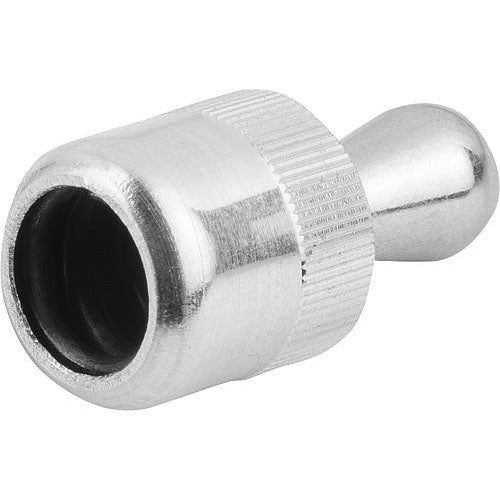

KIPP K0368.21056CU LATERAL SPRING PLUNGER, SPRING FORCE WITHOUT SEAL D=7/16, D2=7/16, L1=6,7, ALUMINIUM, COMP:STEEL
SKU: KP-K0368.21056CU
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Lateral Spring Plungers without seal, pressure pin and spring in steel, inch

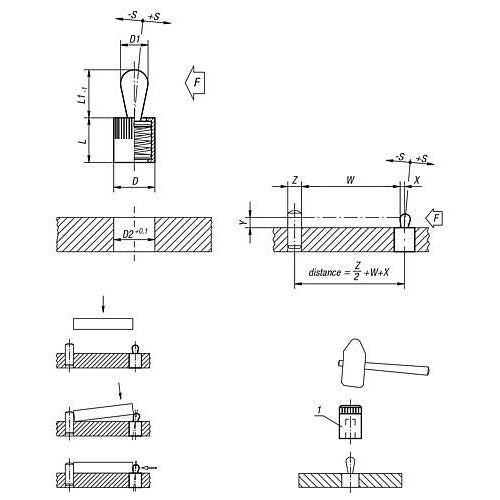

Material: body in aluminum; spring in steel; pressure pin in steel Type: Thrust pin steel, hardened and electro zinc-plated. body blue electro zinc-plated. Note: Lateral Spring Plungers are for positioning, clamping, holding and fastening of workpieces during engraving, labeling, drilling, reaming, tapping, honing, grinding, welding, soldering, tooling, assembling, etc. Eccentric adjustment bushings see are also available. Dimensions W and Z are customer specific. For the inch series, dimension D and D2 are in inches, all other dimensions are in mm. Drawing reference: 1) assembly tool
Main Material: | Aluminum |
Version 1: | Without Seal |
Item: | Lateral Spring Plunger |
Rohs: | Yes |
D: | 7/16 |
D1: | 5 |
D2: | 7/16 |
F Ca.N: | 50 |
L: | 11 |
L1: | 6.7 |
X If Y = 1: | - |
X If Y = 2: | 1.5 |
X If Y = 3: | 1.7 |
X If Y = 4.5: | 1.7 |
X If Y = 6: | 1.7 |
X If Y = 8: | 1.7 |
±S: | 0.8 |
