Brand: Kipp

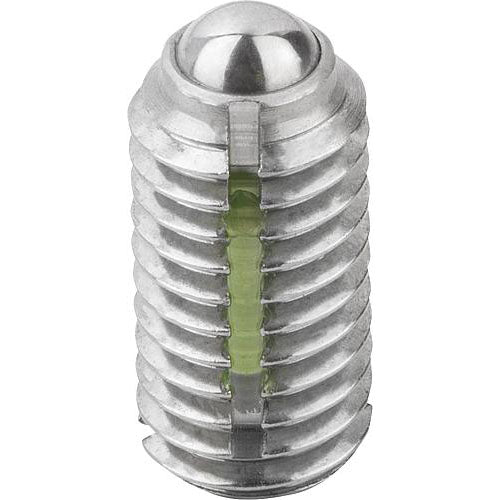

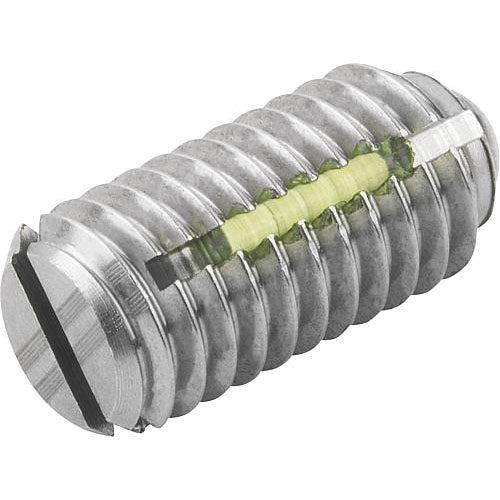

KIPP K0322.2A5 SPRING PLUNGER INTENSIFIED SPRING FORCE, WITH THREAD LOCK D=1/2-13 L=22, STAINLESS STEEL, COMP:BALL STAINLESS
SKU: KP-K0322.2A5
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Spring Plungers with thread lock ball style, slotted, stainless steel, heavy end pressure, inch

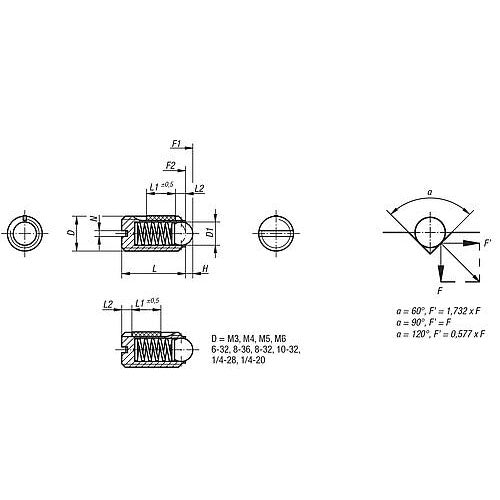

Material: body 1.4305 (AISI 303 equivalent). Ball 1.4034 (AISI 420 equivalent). Spring 1.4310 (AISI 301 equivalent). LONG-LOK thread lock, Nylon. Type: Bright. Ball hardened. Note: For the inch series, dimension D is in inches, all other dimensions are in mm. Drawing reference: L2 = approx. 2x thread pitch
Main Material: | Stainless Steel |
Version 1: | With Thread Lock |
Item: | Spring Plunger |
Rohs: | Yes |
Packaging Unit: | 5 |
Pin Style: | Ball |
Carrier Style: | Slot |
Loosening Torque Approx. Nm: | 1.36 |
D: | 1/2-13 |
D1: | 8 |
Tightening Torque Approx. Nm: | 2.03 |
Spring Strength: | Intensified |
Spring Force Initial Pressure F1 Approx. N: | 66 |
Spring Force Final Pressure F2 Approx. N: | 120 |
H: | 2.5 |
L: | 22 |
L1: | 10 |
N: | 2 |
