Brand: Kipp
KIPP K0321.AE SPRING PLUNGER STANDARD SPRING FORCE, WITH THREAD LOCK D=8-32 L=9, STEEL, COMP:BALL STEEL, PU=10
SKU: KP-K0321.AE
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

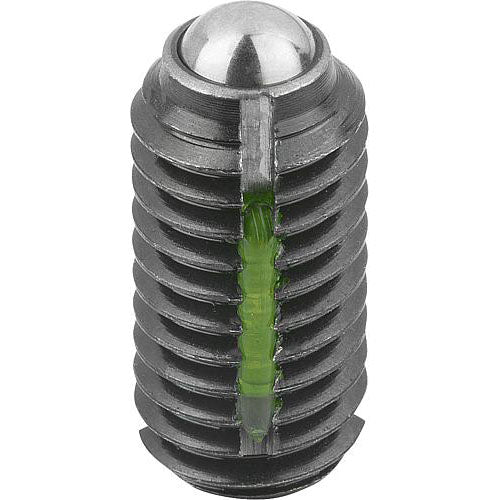

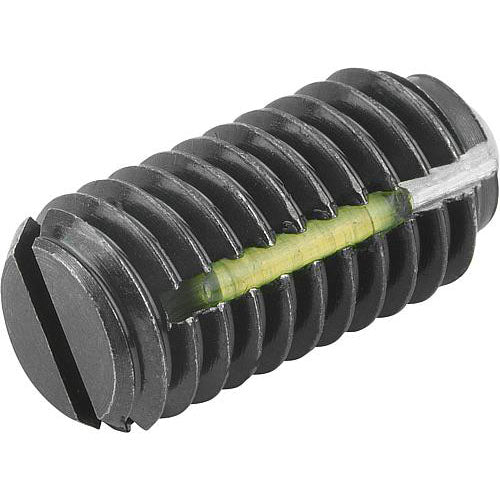

Spring Plungers with thread lock ball style, slotted, steel, standard end pressure, inch

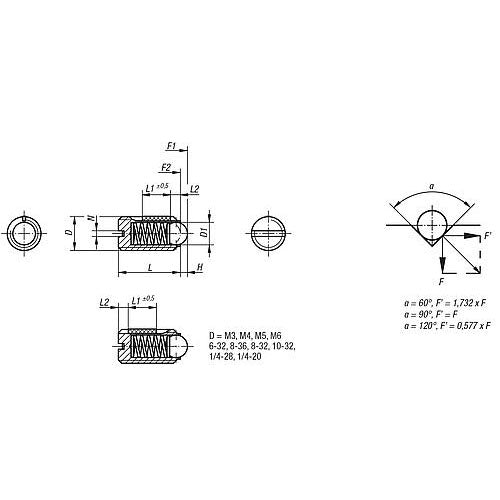

Material: Body steel quality class 5.8. Ball steel. Spring Class D steel wire. LONG-LOK thread lock Nylon. Type: Black oxide finish. Ball hardened. Part Number Example: K0321.AD Note: For the inch series, dimension D is in inches, all other dimensions are in mm. Drawing reference: L2 = approx. 2x thread pitch
| Main Material: | Steel |
| Version 1: | With Thread Lock |
| Item: | Spring Plunger |
| Packaging Unit: | 10 |
| Pin Style: | Ball |
| Carrier Style: | Slot |
| Loosening Torque Approx. Nm: | 0.12 |
| D: | 8-32 |
| D1: | 2.5 |
| Tightening Torque Approx. Nm: | 0.18 |
| Spring Strength: | Standard |
| Spring Force Initial Pressure F1 Approx. N: | 4 |
| Spring Force Final Pressure F2 Approx. N: | 10 |
| H: | 0.8 |
| L: | 9 |
| L1: | 5 |
| N: | 0.6 |
